Rogue - Bad Boy Zero-Turn Mower (2021) 72" DECK ASSEMBLY Parts Diagram

Zero-Turn Mower

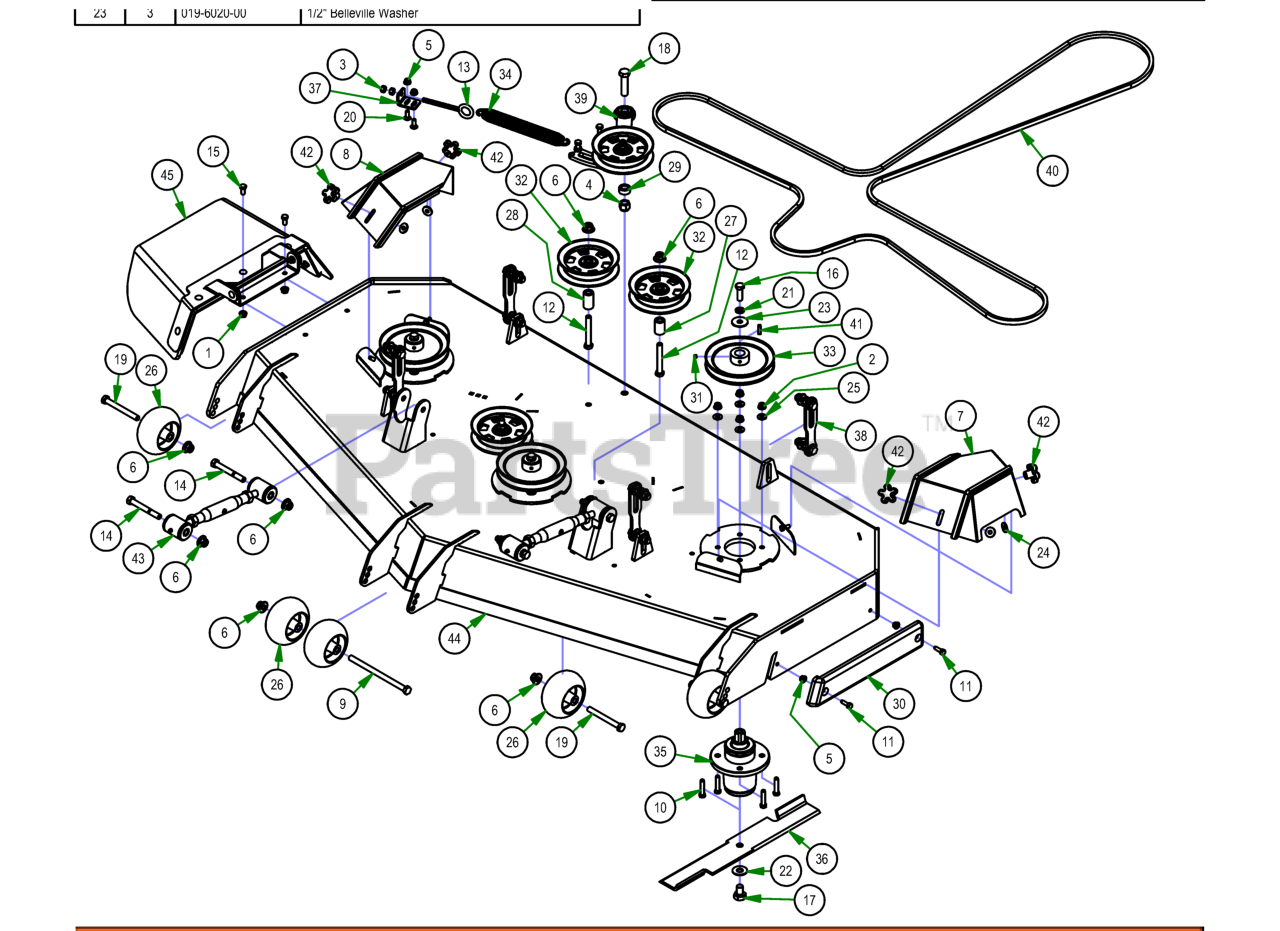

72" DECK ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

4

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

5

Bad Boy 013-8049-00

5/16" Nylon Flange Nut

$0.99

$

In Stock, Qty 17

0

6

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

7

Bad Boy 014-5054-00

2019 72" Left Outlaw Gen2 Pulley Cover

$19.99

$

Usually ships in 4-7 days

0

8

Bad Boy 014-5055-00

2019 72" Right Outlaw Gen2 Pulley Cover

$19.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-0046-00

1/2-13 x 8 Hex Bolt Grade 5

$4.49

$

In Stock, Qty 5

0

10

Bad Boy 018-0075-00

3/8-16 X 1-3/4 HEX C/S (GR.5) ZC

$3.49

$

In Stock, Qty 5

0

11

Bad Boy 018-2007-00

5/16-18 x 1 GR 5 Hex Bolt Zinc

$0.99

$

In Stock, only 2 left!

0

12

Bad Boy 018-2018-00

1/2 x 3 1/2 Flange Bolt Grade 8

$3.99

$

In Stock, Qty 6

0

13

Bad Boy 018-4707-00

4" 3/8-16 Eye Bolt

$4.49

$

In Stock, Qty 6

0

14

Bad Boy 018-5019-00

1/2" x 4" Bolt (Grade 8)

$4.99

$

In Stock, Qty 6

0

15

Bad Boy 018-5250-00

3/8" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-6019-00

1/2"-20 x 1 1/2 - Grade 5 Fine Thread Bolt

$1.49

$

In Stock, Qty 20+

0

17

Bad Boy 018-6020-00

5/8" x 1 1/2" Grade 8 Hex Bolt (Fine)

$2.99

$

In Stock, Qty 20+

0

18

Bad Boy 018-6059-00

5/8" x 2 1/2" Grade 5 Hex Bolt (Coarse)

$2.99

$

In Stock, only 2 left!

0

19

Bad Boy 018-7050-00

1/2" x 4 1/2" Bolt

$2.99

$

In Stock, Qty 13

0

20

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, Qty 6

0

21

Bad Boy 019-5007-00

1/2" Lock Washer

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 019-5038-00

5/8'' Flat Washer

$1.99

$

In Stock, Qty 20+

0

23

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

24

Bad Boy 019-6050-00

.360 ID Plastic Washer-Black

$0.99

$

In Stock, Qty 6

0

25

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

26

Bad Boy 022-1001-00

2019 Deck Wheel

$18.99

$

In Stock, Qty 20+

0

27

Bad Boy 025-5338-00

.502 ID X .750 OD X 1.500 Long Spacer

$3.99

$

In Stock, Qty 6

0

28

Bad Boy 025-5339-00

1 3/4" Pulley Spacer

$5.99

$

In Stock, only 2 left!

0

29

Bad Boy 025-7020-00

5/8" x 1/" Collar W/One Set Screw

$4.99

$

In Stock, only 2 left!

0

30

Bad Boy 029-7036-00

REVISED TRIM BUMPER_20180226

$24.99

$

In Stock, only 3 left!

0

31

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

32

Bad Boy 033-7201-25

5-3/4 Idler Pulley

$37.99

$

In Stock, Qty 20+

0

33

Bad Boy 033-7203-00

7" Deck Pulley

$37.99

$

In Stock, Qty 7

0

34

Bad Boy 034-2030-00

2019 Outlaw Gen2 Deck Spring

$33.99

$

In Stock, Qty 11

0

35

Bad Boy 037-4000-00

OUTLAW SPINDLE ASSEMBLY

$332.99

$

In Stock, Qty 20+

0

36

Bad Boy 038-7230-00

72" High Lift Fusion Blade

$25.99

$

In Stock, Qty 20+

0

37

Bad Boy 039-0144-00

2019 Deck Eye Bolt Tab

$15.99

$

Usually ships in 4-7 days

0

38

Bad Boy 039-2125-17

Deck Hangar Assembly

$16.99

$

In Stock, only 2 left!

0

39

Bad Boy 039-6946-18

2019 Rebel Rogue Deck Idler

$83.99

$

In Stock, only 3 left!

0

40

Bad Boy 041-0202-00

B202 Belt for 72" Outlaw

$124.99

$

In Stock, Qty 20+

0

41

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 20+

0

42

Bad Boy 045-6043-00

5/16" Knob

$4.99

$

In Stock, Qty 18

0

43

Bad Boy 048-7000-00

Turnbuckle

$

$

Not available

44

Bad Boy 060-7251-19

2019 Sloped 72" Deck

$1210.99

$

Usually ships in 4-7 days

0

45

Bad Boy 210-7000-98

2019 Outlaw Gen2 Chute Assembly

$181.99

$

In Stock, only 2 left!

0
