Rogue - Bad Boy Zero-Turn Mower (2020) FRONT END Parts Diagram

Zero-Turn Mower

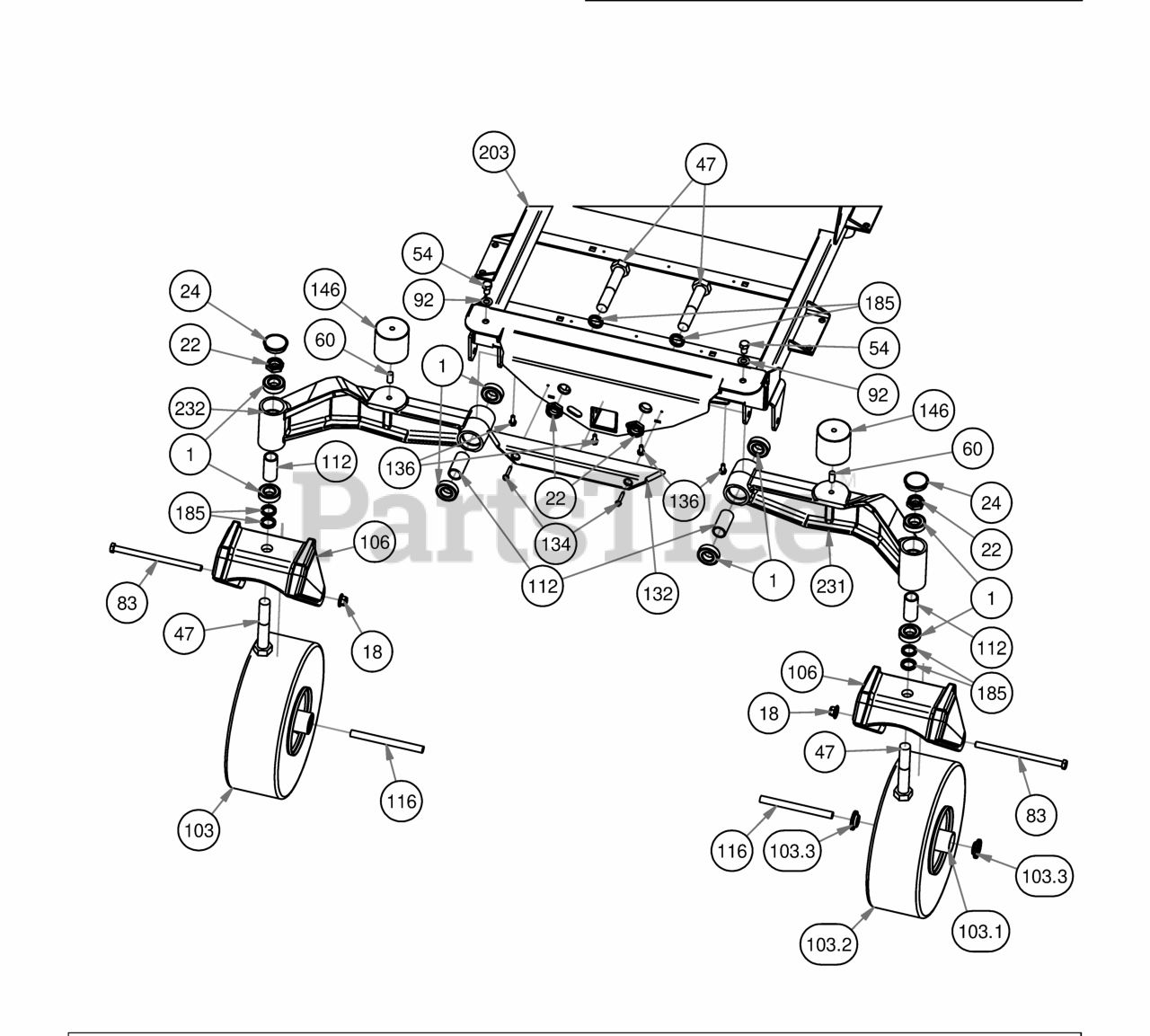

FRONT END Parts Diagram

  • Title

1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

7

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

In Stock, only 2 left!

0

18

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

22

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, Qty 10

0

24

Bad Boy 014-2025-00

2017 Bearing Cover

$2.99

$

In Stock, Qty 12

0

47

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

54

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

60

Bad Boy 018-2009-00

1/2-13 x 1" Stud

$6.49

$

Usually ships in 4-7 days

0

83

Bad Boy 018-7010-00

1/2" x 9" GR 5 Hex Bolt

$6.49

$

In Stock, Qty 17

0

92

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 1 left!

0

99

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

103

Bad Boy 022-0002-00

2019 Front Tire Assy 15x6.00-6 pneumatic

$165.99

$

Usually ships in 4-7 days

0

106

Bad Boy 023-0004-00

2019 Rebel, Rogue, Renegade Front Fork

$193.99

$

Usually ships in 4-7 days

0

112

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, Qty 6

0

116

Bad Boy 025-5202-00

Front Wheel Spanner

$10.99

$

In Stock, Qty 20+

0

132

Bad Boy 029-8000-00

2017 XP Bumper

$33.99

$

In Stock, only 2 left!

0

134

Bad Boy 030-7039-00

1/4" x 1 1/2" Self Tapping Screw

$0.99

$

Usually ships in 4-7 days

0

136

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

146

Bad Boy 032-8999-00

Vibration Mount-Blue Dot

$68.99

$

In Stock, only 2 left!

0

185

Bad Boy 058-1000-00

Spacer, 1x1.375x.25

$6.99

$

In Stock, Qty 9

0

203

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

$

$

Not available

231

Bad Boy 250-0032-00

2019 Front I-Beam Left

$249.99

$

Usually ships in 4-7 days

0

232

Bad Boy 250-0033-00

2019 Front I-Beam Right

$331.99

$

Usually ships in 4-7 days

0

103.1

Bad Boy 022-0005-00

6x4.5 Wheel w/Bearings

$83.99

$

Usually ships in 4-7 days

0

103.2

Bad Boy 022-0004-00

15x600-6 Tire Only

$91.99

$

Usually ships in 4-7 days

0

103.3

Bad Boy 022-7010-00

1-3/4" Bearing-Large Bore Front Rim

$21.99

$

In Stock, Qty 20+

0
