Rogue - Bad Boy Zero-Turn Mower (2020) ENGINE - 993cc VANGUARD EFI 37HP Parts Diagram

Zero-Turn Mower

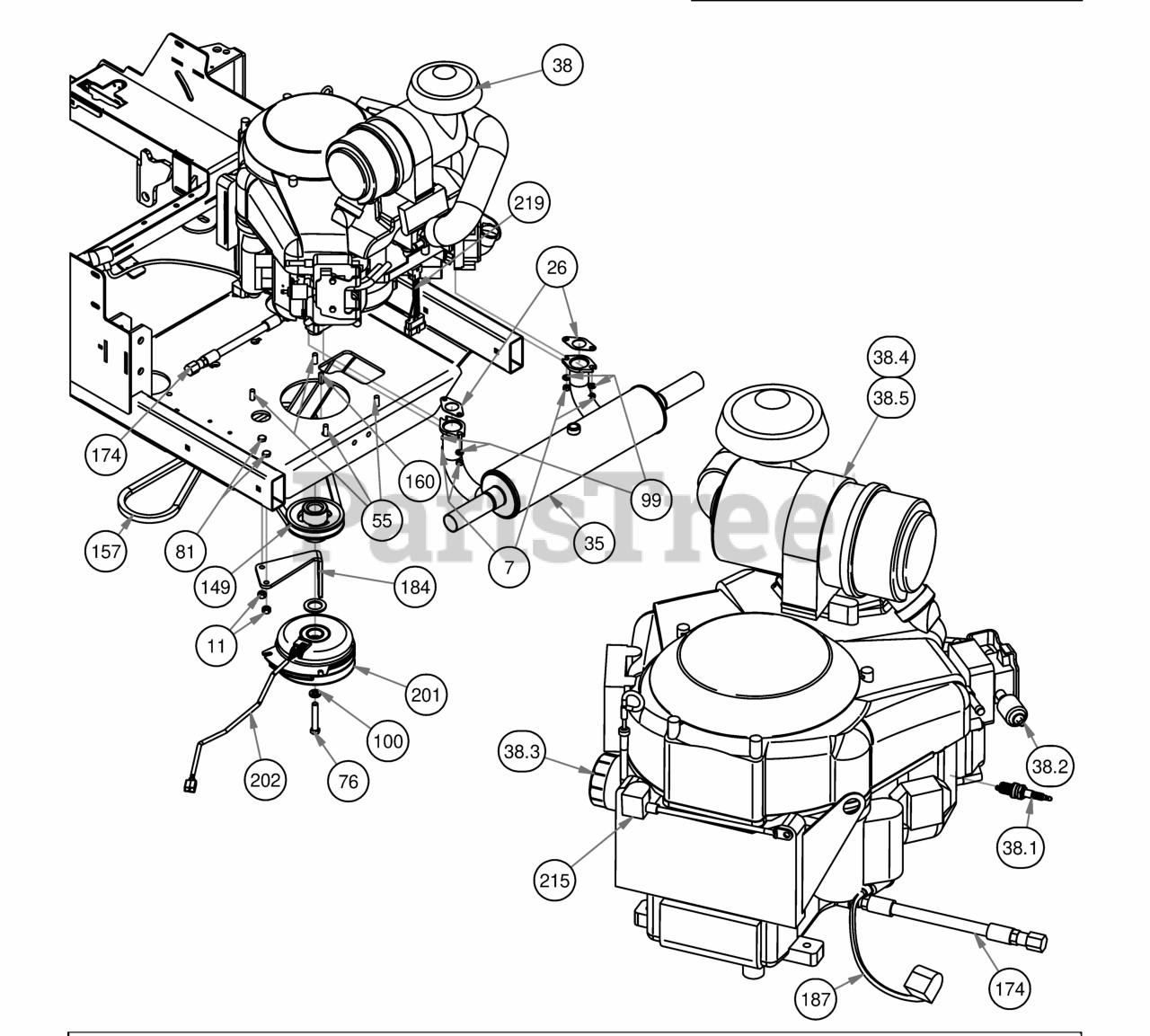

ENGINE - 993cc VANGUARD EFI 37HP Parts Diagram

  • Title

7

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

In Stock, only 2 left!

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

26

Bad Boy 015-0025-00

Exhaust Gasket for 23 Vanguard

$11.99

$

Usually ships in 4-7 days

0

35

Bad Boy 015-1014-00

Muffler for 36Hp Vanguard

$226.99

$

Usually ships in 4-7 days

0

38

Bad Boy 015-3001-00

993cc Vanguard Engine

$3989.99

$

Usually ships in 4-7 days

0

55

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

76

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 3 left!

0

81

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

94

Bad Boy 019-6029-00

1 1/8" Flat Spacer

$1.49

$

In Stock, only 2 left!

0

99

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

100

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

149

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

157

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

160

Bad Boy 042-6030-00

1/4" x 1" Key

$4.99

$

In Stock, Qty 20+

0

174

Bad Boy 051-5402-00

14 mm Oil drain Hose 993cc Vanguard

$33.99

$

Usually ships in 4-7 days

0

184

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

Usually ships in 4-7 days

0

187

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

201

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

202

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

203

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

$

$

Not available

215

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

219

Bad Boy 086-9013-00

2019 Harness Adaptor - Vanguard 37 EFI Vert/Horiz

$30.99

$

Usually ships in 4-7 days

0

38.1

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

38.2

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

38.3

Bad Boy 063-8018-00

Oil Filter

$22.99

$

In Stock, Qty 19

0

38.4

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 13

0

38.5

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, Qty 6

0
