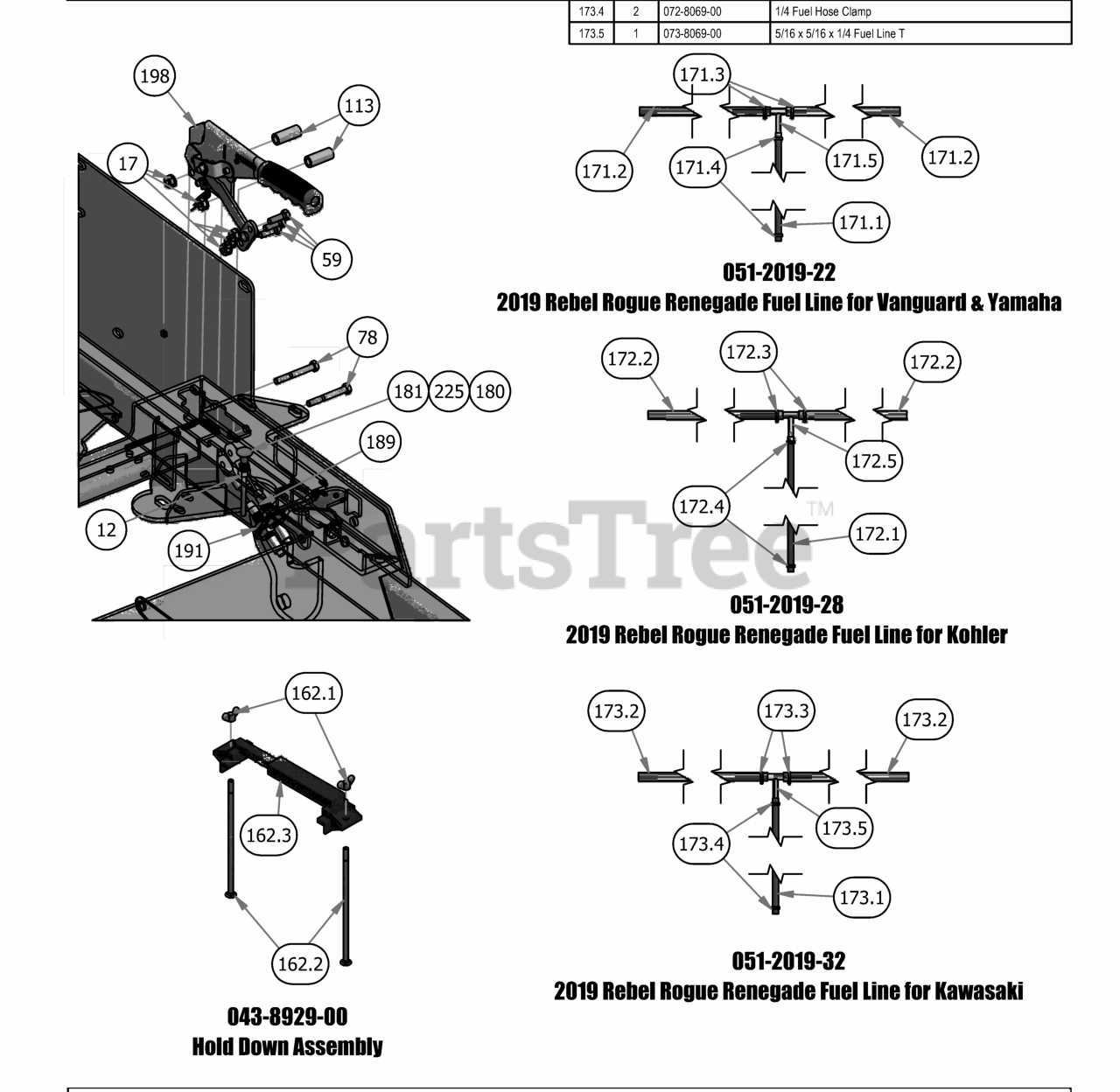

Rogue - Bad Boy Zero-Turn Mower (2019) TANKS & BATTERY (CONT.) Parts Diagram

Zero-Turn Mower

TANKS & BATTERY (CONT.) Parts Diagram

  • Title

12

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

Note: -

$0.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

Note: -

$0.99

$

In Stock, Qty 17

0

59

Bad Boy 018-2007-00

5/16" x 1" Bolt

Note: -

$0.99

$

In Stock, only 1 left!

0

78

Bad Boy 018-5344-00

5/16" x 2 1/2" Bolt

Note: -

$0.99

$

In Stock, only 2 left!

0

113

Bad Boy 025-0027-00

2019 Outlaw Brake Handle Spacer .625 x 1.5

Note: -

$7.99

$

Usually ships in 4-7 days

0

180

Bad Boy 054-8017-00

Choke

Note: -

$27.99

$

In Stock, Qty 20+

0

181

Bad Boy 054-8019-00

Choke for 36Hp Vanguard & FX1000 Kawasaki

Note: -

$28.99

$

In Stock, Qty 20+

0

189

Bad Boy 064-8054-00

2019 Short Brake Cable-Suspension Models

Note: -

$54.99

$

Usually ships in 4-7 days

0

191

Bad Boy 064-9002-00

2019 Long Brake Cable-Renegade, Rogue

Note: -

$54.99

$

Usually ships in 4-7 days

0

198

Bad Boy 069-0001-00

2019 Brake Handle Assembly

Note: -

$151.99

$

In Stock, only 2 left!

0

225

Bad Boy 089-2000-00

Code Indicator Light

Note: -

$22.99

$

Usually ships in 4-7 days

0

162.1

Bad Boy 013-8051-00

1/4" Wing Nut

Note: -

$0.99

$

In Stock, Qty 5

0

162.2

Bad Boy 018-8050-00

1/4-20 X 8 Carriage Bolt

Note: -

$1.99

$

In Stock, Qty 12

0

162.3

Bad Boy 043-8929-00

Battery Hold Down

Note: -

$18.99

$

In Stock, Qty 11

0

171.1

Bad Boy 051-8067-22

1/4" Fuel Line Hose

Note: -

$12.99

$

Usually ships in 4-7 days

0

171.2

Bad Boy 051-8075-26

5/16" fuel line hose

Note: -

$19.99

$

Usually ships in 4-7 days

0

171.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

Note: -

$3.99

$

Usually ships in 4-7 days

0

171.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

Note: -

$1.49

$

In Stock, only 2 left!

0

171.5

Bad Boy 073-8069-00

5/16 x 5/16 x 1/4 Fuel Line T

Note: -

$10.99

$

Usually ships in 4-7 days

0

172.1

Bad Boy 051-8067-28

1/4" Fuel Line Hose

Note: -

$13.99

$

Usually ships in 0 days

0

172.2

Bad Boy 051-8075-26

5/16" fuel line hose

Note: -

$19.99

$

Usually ships in 4-7 days

0

172.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

Note: -

$3.99

$

Usually ships in 4-7 days

0

172.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

Note: -

$1.49

$

In Stock, only 2 left!

0

172.5

Bad Boy 073-8069-00

5/16 x 5/16 x 1/4 Fuel Line T

Note: -

$10.99

$

Usually ships in 4-7 days

0

173.1

Bad Boy 051-8067-32

1/4" Fuel Line Hose

Note: -

$17.99

$

Usually ships in 4-7 days

0

173.2

Bad Boy 051-8075-26

5/16" fuel line hose

Note: -

$19.99

$

Usually ships in 4-7 days

0

173.3

Bad Boy 072-8068-00

5/16 Fuel Line Clamp

Note: -

$3.99

$

Usually ships in 4-7 days

0

173.4

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

Note: -

$1.49

$

In Stock, only 2 left!

0

173.5

Bad Boy 073-8069-00

5/16 x 5/16 x 1/4 Fuel Line T

Note: -

$10.99

$

Usually ships in 4-7 days

0
