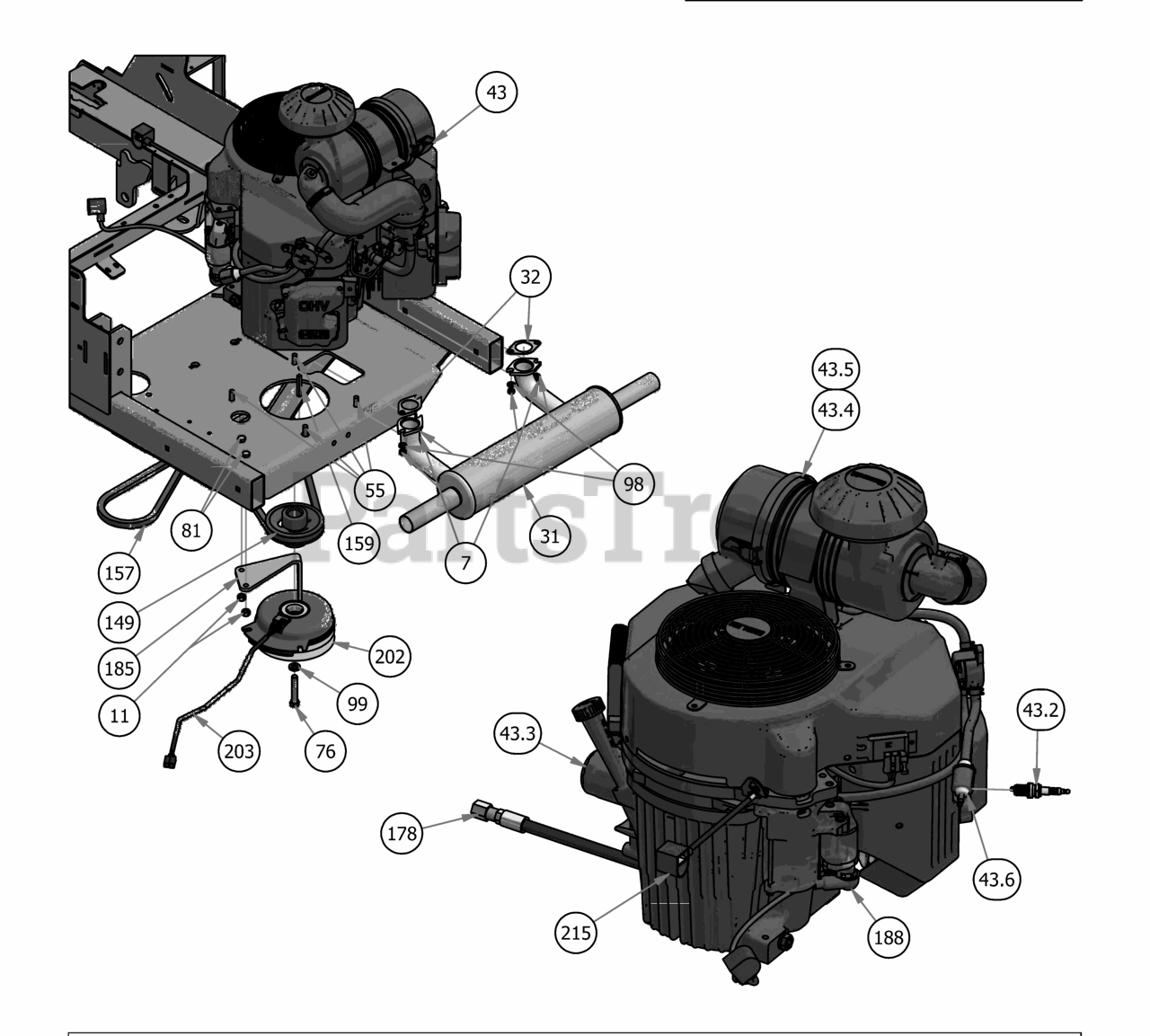

Rogue - Bad Boy Zero-Turn Mower (2019) ENGINE - 999cc KAWASAKI FX-1000 Parts Diagram

Zero-Turn Mower

ENGINE - 999cc KAWASAKI FX-1000 Parts Diagram

  • Title

7

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

Usually ships in 4-7 days

0

11

Bad Boy 013-6014-00

3/8" Hex Nut

$0.99

$

In Stock, only 4 left!

0

31

Bad Boy 015-1010-00

Muffler for Kawasaki FX1000

$226.99

$

Usually ships in 4-7 days

0

32

Bad Boy 015-1010-01

Exhaust Gasket

$9.49

$

In Stock, only 2 left!

0

43

Bad Boy 015-9911-00

Kawasaki FX1000 Engine

$3191.99

$

Usually ships in 4-7 days

0

55

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

76

Bad Boy 018-5300-00

7/16" x 2 1/2" Hex Bolt

$1.49

$

In Stock, only 2 left!

0

81

Bad Boy 018-6049-00

3/8" x 1" Hex Bolt

$0.99

$

In Stock, Qty 13

0

98

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

99

Bad Boy 019-8053-00

7/16" Lock Washer

$0.99

$

Usually ships in 4-7 days

0

149

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 2 left!

0

157

Bad Boy 041-8051-00

2019 Rogue Pump Belt 68"

$85.99

$

In Stock, Qty 20+

0

159

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 1 left!

0

178

Bad Boy 051-5407-00

Kawasaki Oil Drain

$45.99

$

In Stock, only 2 left!

0

185

Bad Boy 057-5906-00

PTO Engager Holder

$22.99

$

In Stock, only 2 left!

0

188

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

202

Bad Boy 070-1000-00

Clutch Assembly

$319.99

$

In Stock, Qty 20+

0

203

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

204

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

$

$

Not available

215

Bad Boy 086-0005-00

Starter Cable

$10.99

$

Usually ships in 4-7 days

0

217

Bad Boy 086-9002-19

Kawasaki Harness Adapter

$21.99

$

Usually ships in 4-7 days

0

43.2

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

43.3

Bad Boy 063-8017-00

Oil Filter

$30.99

$

In Stock, Qty 20+

0

43.4

Bad Boy 063-8020-00

Canister Air Filter- Inner

$34.99

$

In Stock, only 4 left!

0

43.5

Bad Boy 063-8019-00

Canister Air Filter- Outer

$38.99

$

In Stock, Qty 10

0

43.6

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 19

0
