Rogue - Bad Boy Zero-Turn Mower (2019) COVERS & SEAT Parts Diagram

Zero-Turn Mower

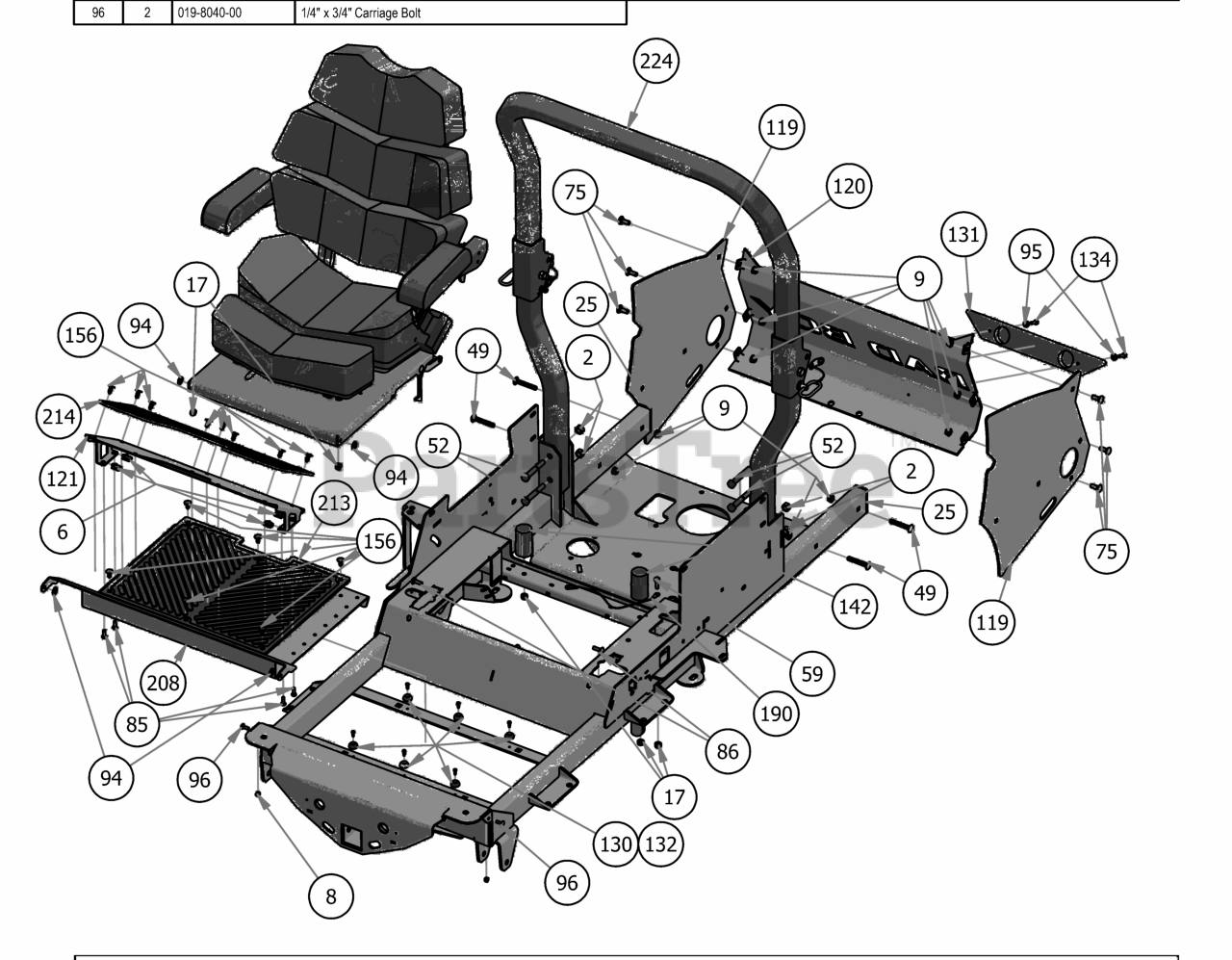

COVERS & SEAT Parts Diagram

  • Title

2

Bad Boy 013-0005-00

1/2" Center Lock Nut

Note: -

$3.49

$

Usually ships in 4-7 days

0

6

Bad Boy 013-0054-00

1/4-20 Cage Nut

Note: -

$0.99

$

Usually ships in 4-7 days

0

8

Bad Boy 013-2050-00

1/4-20 Hex flang lock nut

Note: -

$1.49

$

In Stock, only 2 left!

0

9

Bad Boy 013-5202-00

3/8" Nylock Flange Nut

Note: -

$1.99

$

In Stock, Qty 20+

0

17

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

Note: -

$0.99

$

In Stock, Qty 17

0

25

Bad Boy 014-9003-00

1 1/2 x 3 Frame Plug

Note: -

$3.49

$

Usually ships in 4-7 days

0

49

Bad Boy 018-0044-00

3/8" x 2 1/2" Carriage Bolt

Note: -

$3.49

$

Usually ships in 4-7 days

0

52

Bad Boy 018-0050-00

1/2-13 X 3.25 Hex Bolt - Grade 5

Note: -

$0.99

$

Usually ships in 4-7 days

0

59

Bad Boy 018-2007-00

5/16" x 1" Bolt

Note: -

$0.99

$

In Stock, only 2 left!

0

75

Bad Boy 018-5044-00

3/8" x 1" Carriage Bolt

Note: -

$0.99

$

Usually ships in 4-7 days

0

85

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

Note: -

$0.99

$

In Stock, only 3 left!

0

86

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

Note: -

$0.99

$

In Stock, Qty 7

0

94

Bad Boy 019-6042-00

.360 ID Plastic Washer

Note: -

$0.99

$

In Stock, Qty 11

0

95

Bad Boy 019-7040-00

1/4" Flat Washer

Note: -

$0.99

$

In Stock, Qty 7

0

96

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

Note: -

$1.99

$

In Stock, only 3 left!

0

119

Bad Boy 026-2209-00

2019 Rouge Rear Cover Side Plate

Note: -

$257.99

$

Usually ships in 4-7 days

0

120

Bad Boy 026-2221-00

2019 Vertical Rear Cover Tailgate Plate

Note: -

$257.99

$

Usually ships in 4-7 days

0

121

Bad Boy 026-2230-00

2019 Outlaw Adjustable Foot Plate

Note: -

$75.99

$

Usually ships in 4-7 days

0

130

Bad Boy 029-4010-00

Button Bumper

Note: -

$1.49

$

Usually ships in 4-7 days

0

131

Bad Boy 029-8000-00

2017 XP Bumper

Note: -

$33.99

$

In Stock, only 2 left!

0

132

Bad Boy 030-3050-00

#10 x 1/2" Self Tapping Screw

Note: -

$0.99

$

In Stock, Qty 9

0

134

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

Note: -

$1.49

$

Usually ships in 4-7 days

0

142

Bad Boy 032-0001-00

2019 Bad Boy X Cylindrical Seat Mount

Note: -

$24.99

$

Usually ships in 4-7 days

0

156

Bad Boy 040-6080-00

Ratchet Fastener

Note: -

$3.49

$

In Stock, only 3 left!

0

190

Bad Boy 064-8081-00

Seat Cable

Note: -

$16.99

$

In Stock, only 2 left!

0

208

Bad Boy 079-3155-00

2019 Outlaw Floorboard

Note: -

$125.99

$

Usually ships in 4-7 days

0

213

Bad Boy 081-0050-00

OUTLAW2019_FLOORMAT

Note: -

$83.99

$

Usually ships in 4-7 days

0

214

Bad Boy 081-0051-00

FLOORMAT_OUTLAW_2019

Note: -

$83.99

$

Usually ships in 4-7 days

0

224

Bad Boy 089-0006-00

2019 2X2 Folding ROPS

Note: -

$497.99

$

Usually ships in 4-7 days

0

53

Bad Boy 018-0057-00

5/16"-18 x 1/2 GR5 Hex bolt zink

Note: -

$3.49

$

Usually ships in 4-7 days

0

62

Bad Boy 018-2012-00

1/4" x 1/2" BS C/S 18-8 SS

Note: -

$0.99

$

In Stock, only 4 left!

0

204

Bad Boy 070-5372-19

2019 Veritical Suspension Frame

Note: -

$

$

Not available
