RO 21380 - Snapper 21" Walk-Behind Mower, 3.75hp Handles & Controls Parts Diagram

21" Walk-Behind Mower, 3.75hp

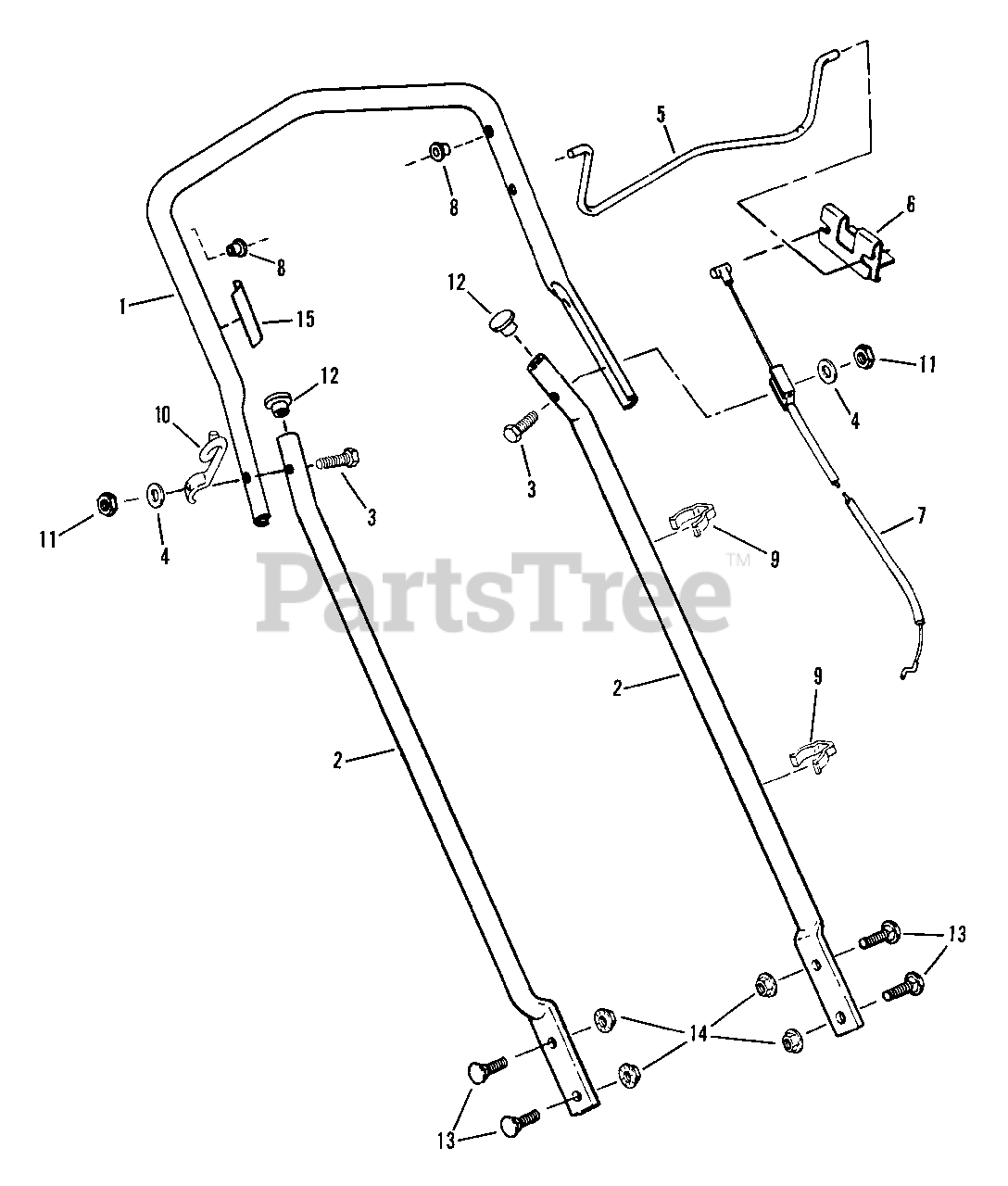

Handles & Controls Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 33473

$213.99

$

Usually ships in 2-12 days

0

2

Snapper 7033406

HANDLE, Middle
(Superseded to 7033406YP)

$

$

Not available

3

Snapper 7091022

SCREW, 1/4-28 x 1-3/4" Hex Head Cap

$

$

Not available

4

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 6

0

5

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

$5.99

$

In Stock, Qty 5

0

7

Snapper 7016707

CABLE, Blade Control
(Superseded to 7016707YP)

$16.99

$

In Stock, only 1 left!

0

8

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7026141

GUIDE, Pull Rope

$

$

Not available

11

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7016544

PLUG
(Superseded to 703931)

$3.99

$

In Stock, Qty 8

0

13

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7024211

DECAL, Blade Control
(Superseded to 7024211YP)

$14.99

$

In Stock, Qty 5

0
