RO 21380 - Snapper 21" Walk-Behind Mower, 3.75hp Cutting Deck, Blade, Interlock Parts Diagram

21" Walk-Behind Mower, 3.75hp

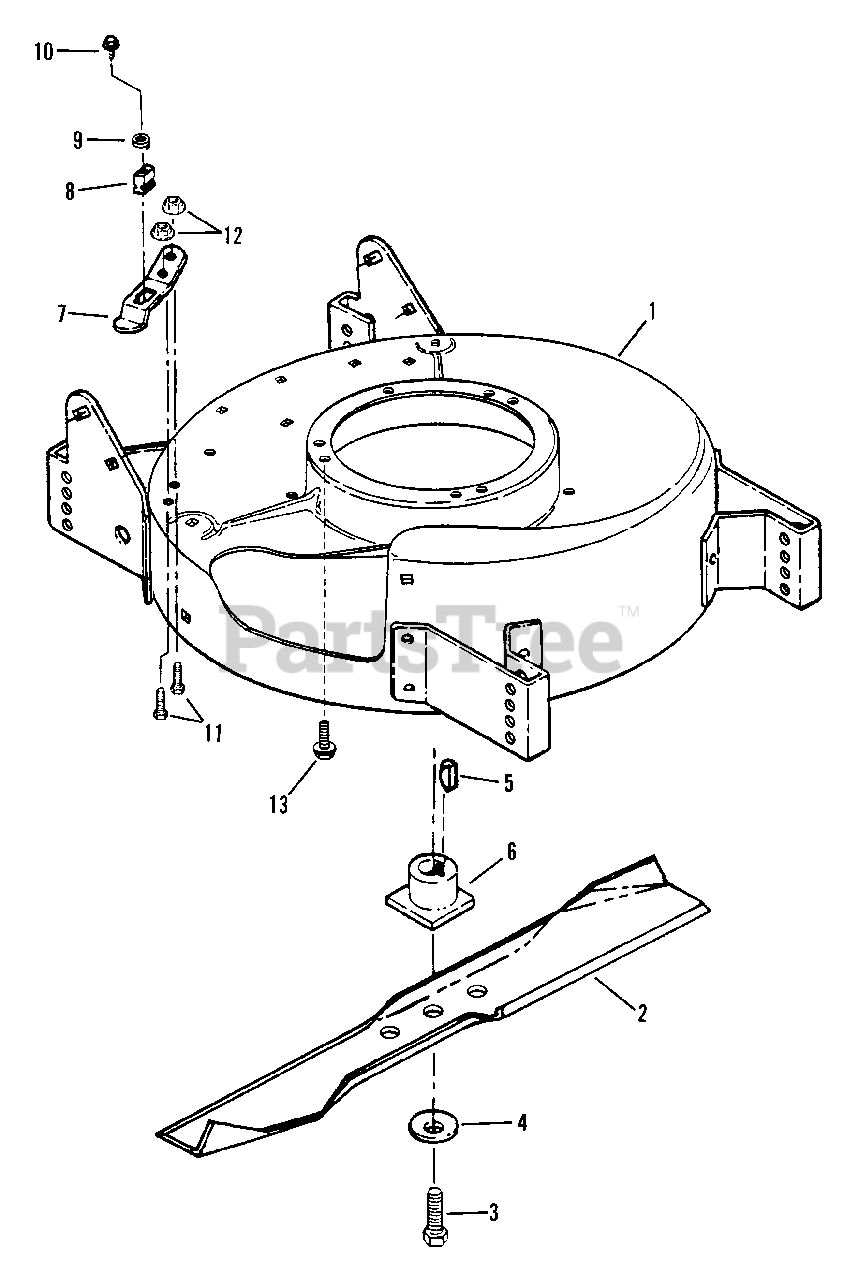

Cutting Deck, Blade, Interlock Parts Diagram

  • Title

1

Snapper 7053271

DECK, Mower
(Superseded to 7053271YP)

Note: (Includes painted deck with decals)

$199.99

$

In Stock, only 1 left!

0

2

Snapper 7017168

BLADE, Cutter
(Superseded to 7041939BZYP)

$29.99

$

In Stock, only 1 left!

0

3

Snapper 7090167

SCREW, 3/8-24 x 2" Hex Head Cap (Gr. 5)
(Superseded to 7090167SM)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7012063

WASHER, Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

5

Snapper 7010783

KEY, Hi-Pro
(Superseded to 7010783YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7012927

HUB, Blade Drive
(Superseded to 7012927YP)

$13.99

$

In Stock, only 2 left!

0

7

Snapper 7033408

SPRING, Interlock
(Superseded to 7033408YP)

$43.99

$

Usually ships in 2-12 days

0

8

Snapper 7012048

INSULATOR, Interlock
(Superseded to 7012048YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7090385

WASHER, #8 Tab

$

$

Not available

10

Snapper 7090379

SCREW, #8-18 x 3/4" Self-Tapping
(Superseded to 7090379YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090071

SCREW, 1/4-20 x 3/4" Hex Head Cap
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7091584

NUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 5

0

13

Snapper 7090324

SCREW, 3/8-16 x 1" Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0
