RMX 8 (UT-32016) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

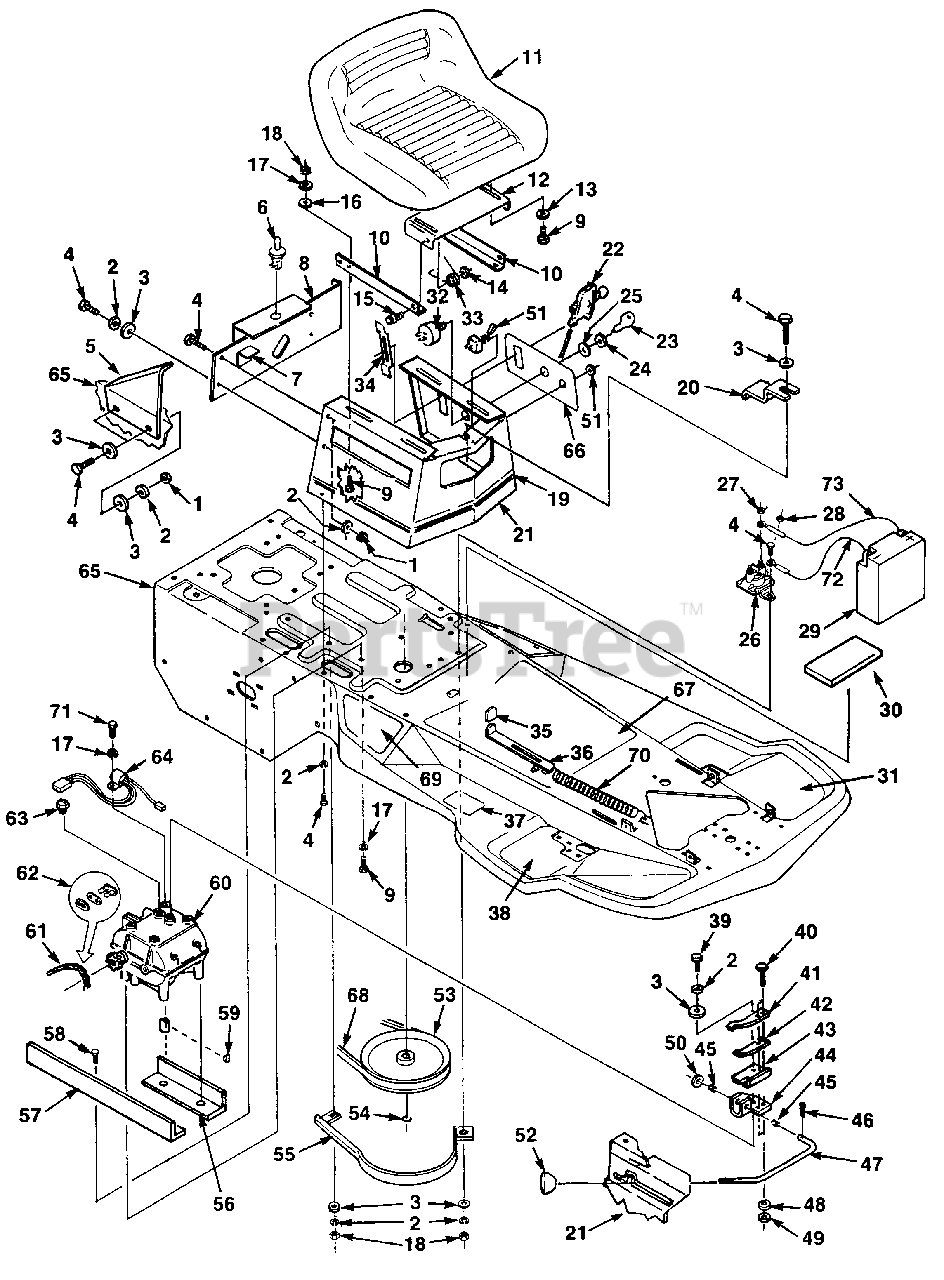

Frame Parts Diagram

  • Title

1

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

2

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

3

Homelite JA452004

WASHER- Flat 1/4
(Superseded to 84026)

$

$

Not available

4

Homelite JA400106

BOLT- 1/4-20 x.625

$

$

Currently unavailable

5

Homelite JA991083

BRACKET- Chain guard

$

$

Currently unavailable

6

Homelite JA991513

SWITCH- Seat

$

$

Currently unavailable

7

Homelite JA991162

BRACKET

$

$

Currently unavailable

8

Homelite JA991575

PLATE- Reinforcement

$86.99

$

Usually ships in 3-7 days

0

9

Homelite JA400184

BOLT- 5/16-18 x .750
(Superseded to UP03381)

$

$

Not available

10

Homelite JA990039

SEAT RAIL

$

$

Currently unavailable

11

Homelite JA124072

SEAT

$

$

Currently unavailable

12

Homelite JA991208

BRACKET- Seat

$

$

Currently unavailable

13

Homelite JA446136

WASHER- Lock 5/16
(Superseded to UP03791)

$

$

Not available

14

Homelite JA444718

NUT- Centerlock hex 5/16-18

$

$

Not available

15

Homelite JA375431

BOLT- Shoulder 5/16-18 hex

$

$

Not available

16

Homelite JA453009

WASHER- Plain 5/16
(Superseded to UP07173)

$

$

Not available

17

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

18

Homelite JA443106

NUT- 5/16-18 hex
(Superseded to 81018)

$

$

Not available

19

Homelite JA990994

DECAL- Seat support

Note: (RMX8M)

$

$

Currently unavailable

Homelite JA990995

DECAL- Seat support

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

20

Homelite JA991506

BRACKET- Battery

Note: (RMX8E & RMX11E

$

$

Currently unavailable

21

Homelite JA991574

TOWER- Seat

$

$

Currently unavailable

22

Homelite JA330024

THROTTLE CONTROL & CABLE

$

$

Currently unavailable

23

Homelite JA343060

KEY- Ignition

$

$

Not available

24

Homelite JA549343

NUT- Ignition switch

$

$

Currently unavailable

25

Homelite JA447224

WASHER- Ignition switch

$

$

Not available

26

Homelite JA995590

SOLENOID- Switch

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

27

Homelite JA443802

NUT

Note: (RMX8E & RMX11E) (lead 1/4-20)

$

$

Currently unavailable

28

Homelite JA444306

NUT

Note: (RMX8E & RMX11E) (hex 8-32)

$

$

Currently unavailable

29

Homelite JA990585

BATTERY

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

30

Homelite JA991507

BATTERY PAD

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

31

Homelite JA339513

FOOT REST (left hand)

$

$

Currently unavailable

32

Homelite JA130666

IGNITION SWITCH

Note: (RMX8M) (Incl.23,24 & 25)

$

$

Currently unavailable

Homelite JA130412

IGNITION SWITCH

Note: (RMX8E & RMX11E) (incl. 23,24 & 25)

$

$

Currently unavailable

33

Homelite JA991534

SPRING- Torsion

$

$

Currently unavailable

34

Homelite JA375870

THROTTLE RETAINER

$7.49

$

Usually ships in 3-7 days

0

35

Homelite JA375987

KNOB

$

$

Currently unavailable

36

Homelite JA375859

LATCHING- Parking brake

$

$

Currently unavailable

37

Homelite JA339568

FOOT PAD

$

$

Currently unavailable

38

Homelite JA339514

FOOT REST (right hand)

$

$

Currently unavailable

39

Homelite JA400148

SCREW- Hex hd. 1/4-28 x.750

$3.99

$

Usually ships in 3-7 days

0

40

Homelite JA408866

SCREW- Hex hd. sems #10-24 x.625

$3.99

$

Usually ships in 3-7 days

0

41

Homelite JA991067

SPRING- Flat (shift yoke)

$7.49

$

Usually ships in 3-7 days

0

42

Homelite JA991091

SPRING- Flat (shift yoke)

$

$

Currently unavailable

43

Homelite JA991068

BRACKET- Yoke

$8.49

$

Usually ships in 3-7 days

0

44

Homelite JA990841

SHIFT LEVER- Yoke

$

$

Currently unavailable

45

Homelite JA990867

BUSHING

$

$

Currently unavailable

46

Homelite JA460026

PIN- Cotter 1/8 x 3/4 plated

$2.99

$

Usually ships in 3-7 days

0

47

Homelite JA990839

GEARSHIFT LEVER

$

$

Currently unavailable

48

Homelite JA446116

WASHER- Lock #10

$

$

Currently unavailable

49

Homelite JA444310

NUT- Hex 10-24
(Superseded to 81092)

$

$

Not available

50

Homelite JA453011

WASHER- Flat 3/8
(Superseded to PS84010)

$

$

Not available

51

Homelite JA990135

SWITCH- P.T.O.
(Superseded to UP06659)

$

$

Not available

52

Homelite JA990783

KNOB- Shift lever

$

$

Currently unavailable

53

Homelite JA392593

TRANSMISSION PULLEY

$

$

Currently unavailable

54

Homelite JA458009

RING- Snap

$

$

Not available

55

Homelite JA991165

BELT GUARD- Transmission

$101.99

$

Usually ships in 3-7 days

0

56

Homelite JA991086

ANGLE- Short

$

$

Currently unavailable

57

Homelite JA991185

ANGLE- Long

$

$

Currently unavailable

58

Homelite JA400108

BOLT- 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

59

Homelite JA463017

KEY- Transmission

$

$

Currently unavailable

60

Homelite JA990222

TRANSMISSION- Peerless Tecumseh

$1715.99

$

Usually ships in 3-7 days

0

61

Homelite JA990739

CHAIN- Drive

$

$

Currently unavailable

62

Homelite JA470502

CONNECTING LINK- Chain

$

$

Currently unavailable

63

Homelite JA990981

SWITCH- Neutral safety

$

$

Currently unavailable

64

Homelite JA991077

NEUTRAL START SAFETY INTERLOCK

$

$

Currently unavailable

65

Homelite JA991168

FRAME

$

$

Currently unavailable

66

Homelite JA991481

DECAL- Control manual

Note: (RMX8M)

$

$

Currently unavailable

Homelite JA991483

DECAL- Ignition switch

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

67

Homelite JA991477

DECAL- Instruction

$

$

Currently unavailable

68

Homelite JA990738

BELT- Transmission

$

$

Not available

69

Homelite JA990997

DECAL- Shift pattern

$

$

Currently unavailable

70

Homelite JA991442

SPRING

$

$

Not available

71

Homelite JA408804

SCREW- Thd. Form 5/16-18 3/4

$

$

Currently unavailable

72

Homelite JA991078

CABLE- Ground

$

$

Currently unavailable

73

Homelite JA991079

CABLE- Battery

$

$

Currently unavailable
