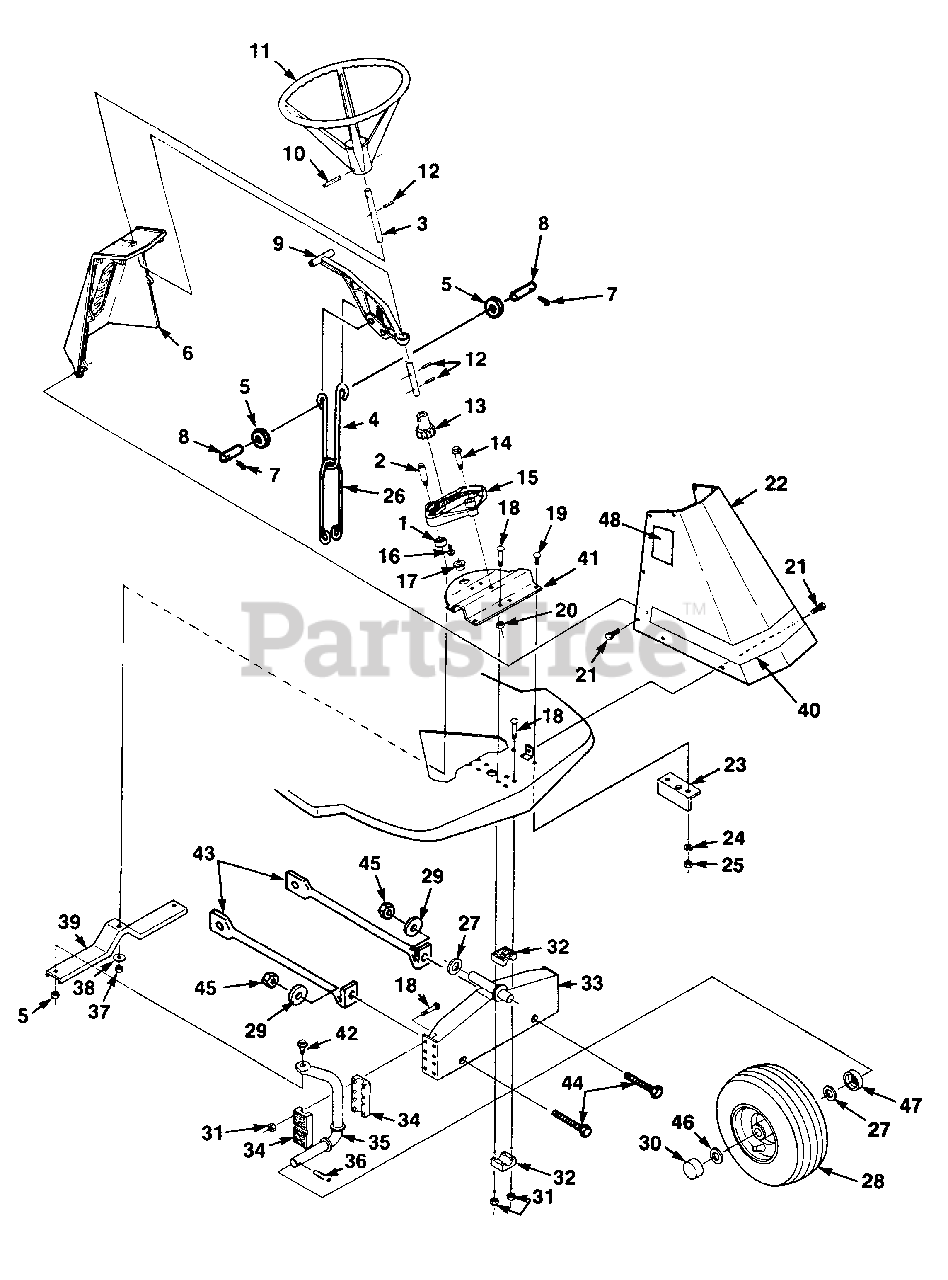

RMX 8 (UT-32016-A) - Homelite Rear-Engine Riding Mower Steering And Mower Lift Parts Diagram

Rear-Engine Riding Mower

Steering And Mower Lift Parts Diagram

  • Title

1

Homelite JA375835

BUSHING- Ball

$

$

Not available

2

Homelite JA375867

STUD- Steer

$

$

Not available

3

Homelite JA375802

SHAFT

$

$

Currently unavailable

4

Homelite JA990219

LINK- Lift

$

$

Currently unavailable

5

Homelite JA453017

WASHER- Flat 1/2"

$

$

Not available

6

Homelite JA991501

PANEL- Console

$

$

Currently unavailable

7

Homelite JA460026

PIN- Cotter

$2.99

$

Usually ships in 3-7 days

0

8

Homelite JA990429

PIN- Retainer

$

$

Currently unavailable

9

Homelite JA330001

HANDLE- Lift

$

$

Currently unavailable

10

Homelite JA461393

PIN

$

$

Not available

11

Homelite JA336146

WHEEL- Steering

$

$

Currently unavailable

12

Homelite JA461346

PIN

$

$

Not available

13

Homelite JA339488

PINION- Steering

$

$

Currently unavailable

14

Homelite JA376007

BOLT- Shoulder 3/8-16 x .1 25

$

$

Currently unavailable

15

Homelite JA229622

SECTION- Steering

$

$

Currently unavailable

16

Homelite JA409907

SCREW 1/4-20 x 1/2

$

$

Not available

17

Homelite JA354130

BUSHING

$

$

Not available

18

Homelite JA440052

BOLT- 1/4-20 x 1 3/4 carr.

$3.99

$

Usually ships in 3-7 days

0

19

Homelite JA441606

BOLT- 114-20 x 3/4 Carr. Sq. Nk.

$

$

Not available

20

Homelite JA444762

NUT- 3/8-16 C'lock

$

$

Currently unavailable

21

Homelite JA375978

BOLT- 1/4-14 x.44 Swedge form

$

$

Not available

22

Homelite JA990055

SUPPORT- Steering

$

$

Currently unavailable

23

Homelite JA376010

BRACKET

$

$

Currently unavailable

24

Homelite JA446130

WASHER- Lock 114

$

$

Not available

25

Homelite JA443102

NUT- 1/4-20 hex
(Superseded to JA993730)

$

$

Not available

26

Homelite JA990269

LINK- Lower lift

$39.99

$

Usually ships in 3-7 days

0

27

Homelite JA453022

WASHER- Flat 3/16

$

$

Currently unavailable

28

Homelite JA992072

WHEEL & TIRE

$

$

Currently unavailable

29

Homelite JA453011

WASHER- Plain (Flat 13/32)
(Superseded to PS84010)

$

$

Not available

30

Homelite JA348877

CAP-Hub

$

$

Currently unavailable

31

Homelite JA444708

NUT- 1/4-20 hex C'lock

$

$

Currently unavailable

32

Homelite JA339462

BEARING

$

$

Not available

33

Homelite JA990015

AXLE- Front

$

$

Currently unavailable

34

Homelite JA339465

BEARING

$

$

Not available

35

Homelite JA995450

SPINDLE- L.H. Wheel

$

$

Currently unavailable

Homelite JA995440

SPINDLE- R.H. Wheel

$

$

Currently unavailable

36

Homelite JA461418

PIN
(Superseded to 70763)

$

$

Not available

37

Homelite JA445776

NUT- C'Locking-hex 3/8-24

$

$

Currently unavailable

38

Homelite JA453011

WASHER- Flat 3/8
(Superseded to PS84010)

$

$

Not available

39

Homelite JA392529

BRACKET- Steering

$

$

Currently unavailable

40

Homelite JA990993

DECAL- Product Identification

$

$

Currently unavailable

41

Homelite JA392523

BRACKET- Reinforcement
(Superseded to JA994511)

$

$

Currently unavailable

42

Homelite JA354480

BOLT

$

$

Currently unavailable

43

Homelite JA990507

SUPPORT- Frame axle

$

$

Currently unavailable

44

Homelite JA400256

BOLT- 3/8-16 x 5/8

$

$

Currently unavailable

45

Homelite JA444762

NUT 3/8-16 C'Lock

$

$

Currently unavailable

46

Homelite JA445054

WASHER

$

$

Currently unavailable

47

Homelite JA375411

WASHER- Dust

$

$

Currently unavailable

48

Homelite JA992217

DECAL- (8 H.P.)

$

$

Currently unavailable

Homelite JA992218

DECAL- (11 H.P.)

$

$

Currently unavailable
