RMX 8 (UT-32016-A) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

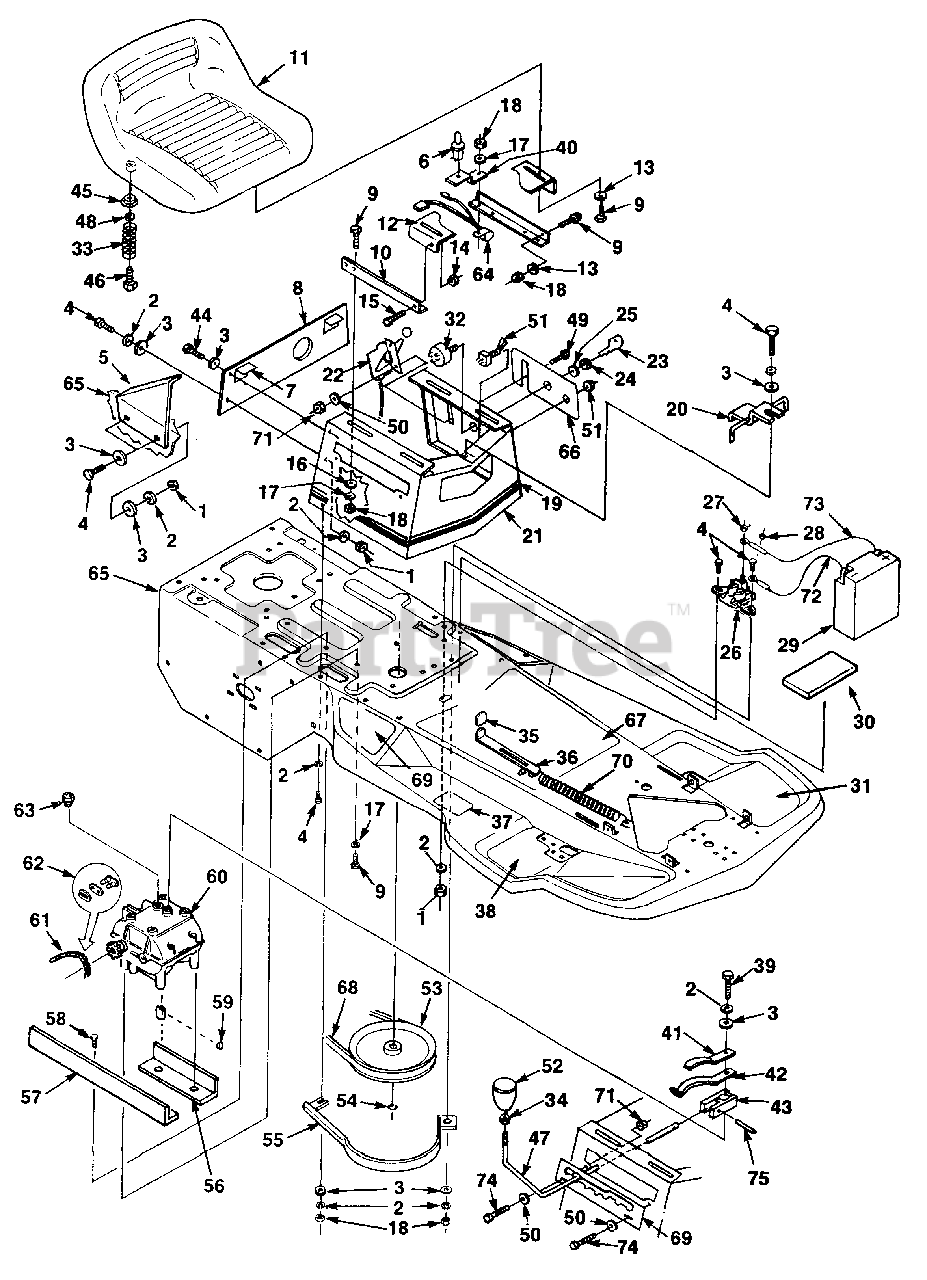

Frame Parts Diagram

  • Title

1

Homelite JA443102

NUT-Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

2

Homelite JA446128

WASHER-Lock
(Superseded to UP03409)

$8.49

$

Usually ships in 3-7 days

0

3

Homelite JA452004

WASHER- Flat 1/4
(Superseded to 84026)

$

$

Not available

4

Homelite JA400106

BOLT- 1/4-20 x .625

$

$

Currently unavailable

5

Homelite JA991083

BRACKET- Chain guard

$

$

Currently unavailable

6

Homelite JA991513

SWITCH- Seat

$

$

Currently unavailable

7

Homelite JA991162

BRACKET

$

$

Currently unavailable

8

Homelite JA991575

PLATE- Reinforcement

$86.99

$

Usually ships in 3-7 days

0

9

Homelite JA400184

BOLT- 5/16-18 x.750
(Superseded to UP03381)

$

$

Not available

10

Homelite JA990039

SEAT RAIL

$

$

Currently unavailable

11

Homelite JA124072

SEAT

$

$

Currently unavailable

12

Homelite JA991208

BRACKET- Seat

$

$

Currently unavailable

13

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

14

Homelite JA444718

NUT- Centerlock hex 5/16-18

$

$

Not available

15

Homelite JA375431

BOLT- Shoulder 5/16-18 hex

$

$

Not available

16

Homelite JA453009

WASHER- Plain 5/16
(Superseded to UP07173)

$

$

Not available

17

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

18

Homelite JA443106

NUT- 5/16-18 hex
(Superseded to 81018)

$

$

Not available

19

Homelite JA992036

DECAL- R.H.

$

$

Currently unavailable

Homelite JA992037

DECAL- L.H.

$

$

Currently unavailable

20

Homelite JA991836

BRACKET- Battery

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

21

Homelite JA992537

TOWER- Seat

$

$

Currently unavailable

22

Homelite JA992098

THROTTLE CONTROL & CABLE

$

$

Currently unavailable

23

Homelite JA343060

KEY- Ignition

$

$

Not available

24

Homelite JA549343

NUT- Ignition switch

$

$

Currently unavailable

25

Homelite JA447224

WASHER- Ignition switch

$

$

Not available

26

Homelite JA995590

SOLENOID- Switch

Note: (RMX8E & 11E)

$

$

Currently unavailable

27

Homelite JA443802

NUT

Note: (RMX8E & RMX11E) (Lead 1/4-20)

$

$

Currently unavailable

28

Homelite JA444306

NUT

Note: (RMX8E & RMX11E) (Hex 8-32)

$

$

Currently unavailable

29

Homelite JA991857

BATTERY

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

30

Homelite JA991507

BATTERY PAD

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

31

Homelite JA339513

FOOT REST (left hand)

$

$

Currently unavailable

32

Homelite JA130666

IGNITION SWITCH

Note: (RMX8M) (incl. 23,24, and 25)

$

$

Currently unavailable

Homelite JA130412

IGNITION SWITCH

Note: (RMX8E & RMX11E) (Incl. 23,24, and 25)

$

$

Currently unavailable

33

Homelite JA359266

SPRING- Torsion

$

$

Not available

34

Homelite JA443812

NUT- Hex jam

$

$

Currently unavailable

35

Homelite JA375987

KNOB

$

$

Currently unavailable

36

Homelite JA375859

LATCHING- Parking brake

$

$

Currently unavailable

37

Homelite JA339568

FOOT PAD

$

$

Currently unavailable

38

Homelite JA339514

FOOT REST (right hand)

$

$

Currently unavailable

39

Homelite JA400148

SCREW- Hex hd. 1/4-28 x .750

$3.99

$

Usually ships in 3-7 days

0

40

Homelite JA991613

BRACKET- Seat switch

$

$

Currently unavailable

41

Homelite JA991839

SPRING- Flat (shift yoke)

$

$

Currently unavailable

42

Homelite JA991843

SPRING- Flat (shift yoke)

$

$

Currently unavailable

43

Homelite JA991848

BRACKET- Pivot

$

$

Currently unavailable

44

Homelite JA400108

SCREW- Hex cap
(Superseded to 80052)

$

$

Not available

45

Homelite JA992007

RETAINER- Spring

$7.49

$

Usually ships in 3-7 days

0

46

Homelite JA400184

SCREW
(Superseded to UP03381)

$

$

Not available

47

Homelite JA991847

GEARSHIFT LEVER

$

$

Currently unavailable

48

Homelite JA446134

LOCKWASHER
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

49

Homelite JA403910

SCREW

$3.99

$

Usually ships in 3-7 days

0

50

Homelite JA452002

WASHER

$

$

Not available

51

Homelite JA990135

SWITCH- P.T.O.
(Superseded to UP06659)

$

$

Not available

52

Homelite JA991845

KNOB- Shift lever

$

$

Currently unavailable

53

Homelite JA392593

TRANSMISSION PULLEY

$

$

Currently unavailable

54

Homelite JA458009

RING-Snap

$

$

Not available

55

Homelite JA991165

BELT GUARD- Transmission

$101.99

$

Usually ships in 3-7 days

0

56

Homelite JA991086

ANGLE- Short

$

$

Currently unavailable

57

Homelite JA991185

ANGLE- Long

$

$

Currently unavailable

58

Homelite JA400108

BOLT- 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

59

Homelite JA463017

KEY- Transmission

$

$

Currently unavailable

60

Homelite JA990976

TRANSMISSION- Peerless Tecumseh

$

$

Currently unavailable

61

Homelite JA990739

Chain- Drive

$

$

Currently unavailable

62

Homelite JA470503

CONNECTING LINK- Chain

$

$

Currently unavailable

63

Homelite JA990981

SWITCH- Neutral safety

$

$

Currently unavailable

64

Homelite JA991077

NEUTRAL START SAFETY INTERLOCK

$

$

Currently unavailable

65

Homelite JA991168

FRAME

$

$

Currently unavailable

66

Homelite JA992103

DECAL- Control Manual

Note: (RMX8M)

$

$

Currently unavailable

Homelite JA992104

DECAL- Ignition Switch

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

67

Homelite JA992238

DECAL- Instruction

$

$

Currently unavailable

68

Homelite JA990738

BELT- Transmission

$

$

Not available

69

Homelite JA992013

PLATE

$

$

Currently unavailable

70

Homelite JA991442

SPRING

$

$

Not available

71

Homelite JA444782

NUT

$

$

Not available

72

Homelite JA992201

CABLE- Ground

$

$

Not available

73

Homelite JA992199

CABLE- Battery

$

$

Currently unavailable

74

Homelite JA403744

SCREW

$

$

Currently unavailable

75

Homelite JA461383

PIN

$

$

Not available
