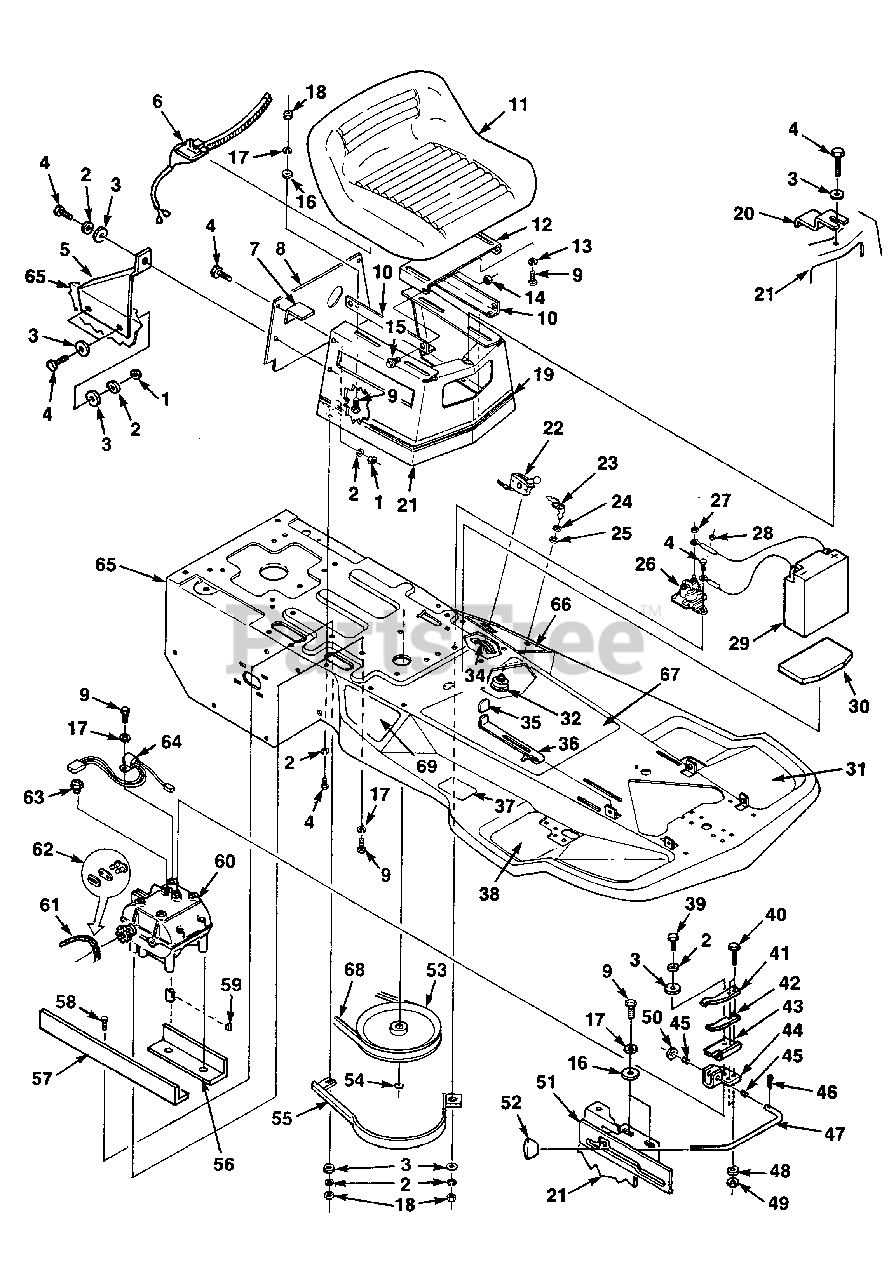

RMX 8 (UT-32013) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

Frame Parts Diagram

  • Title

1

Homelite JA443102

NUT-Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

2

Homelite JA446130

WASHER-Lock 1/4

$

$

Not available

3

Homelite JA452004

WASHER-Flat 1/4
(Superseded to 84026)

$

$

Not available

4

Homelite JA400106

BOLT-1/4-20 x.625

$

$

Currently unavailable

5

Homelite JA991083

BRACKET-Chain guard

$

$

Currently unavailable

6

Homelite JA991178

SWITCH-Seat

$

$

Not available

7

Homelite JA991162

BRACKET

$

$

Currently unavailable

8

Homelite JA991082

PLATE-Reinforcement

$

$

Currently unavailable

9

Homelite JA400184

BOLT-5/16-18 x.750
(Superseded to UP03381)

$

$

Not available

10

Homelite JA990039

SEAT RAIL

$

$

Currently unavailable

11

Homelite JA124072

SEAT

$

$

Currently unavailable

12

Homelite JA991208

BRACKET-Seat

$

$

Currently unavailable

13

Homelite JA446136

WASHER-Lock 5/16
(Superseded to UP03791)

$

$

Not available

14

Homelite JA444718

NUT-Centerlock hex 5/16-18

$

$

Not available

15

Homelite JA375431

BOLT-Shoulder 5/16-18 hex

$

$

Not available

16

Homelite JA453009

WASHER-Plain 5/16
(Superseded to UP07173)

$

$

Not available

17

Homelite JA446134

WASHER-Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

18

Homelite JA443106

NUT-5/16-18 hex
(Superseded to 81018)

$

$

Not available

19

Homelite JA990995

DECAL-Seat support

Note: (RMX8M)

$

$

Currently unavailable

Homelite JA990995

DECAL-Seat support

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

20

Homelite JA991169

BRACKET-Battery

$

$

Currently unavailable

21

Homelite JA991087

SEAT-Tower

$

$

Currently unavailable

22

Homelite JA142137

THROTTLE CONTROL & CABLE

$

$

Currently unavailable

23

Homelite JA343060

KEY-Ignition

$

$

Not available

24

Homelite JA549343

NUT-Ignition switch

$

$

Currently unavailable

25

Homelite JA447224

WASHER-Ignition switch

$

$

Not available

26

Homelite JA995590

SOLENOID-Switch

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

27

Homelite JA443802

NUT

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

28

Homelite JA444306

NUT

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

29

Homelite JA990585

BATTERY

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

30

Homelite JA991111

BATTERY PAD

Note: (RMX8E & RMX11E)

$

$

Currently unavailable

31

Homelite JA339513

FOOT REST (left hand)

$

$

Currently unavailable

32

Homelite JA130666

IGNITION SWITCH

Note: (RMX8M)

$

$

Currently unavailable

Homelite JA130412

IGNITION SWITCH

Note: (RMX8E & RMX11E) (Incl. 23, 24 & 25)

$

$

Currently unavailable

34

Homelite JA375870

THROTTLE RETAINER

$7.49

$

Usually ships in 3-7 days

0

35

Homelite JA375987

KNOB

$

$

Currently unavailable

36

Homelite JA375859

LATCHING-Parking brake

$

$

Currently unavailable

37

Homelite JA339568

FOOTPAD

$

$

Currently unavailable

38

Homelite JA339514

FOOT REST (right hand)

$

$

Currently unavailable

39

Homelite JA400148

SCREW-Hex hd. 1/4-28 x.750

$3.99

$

Usually ships in 3-7 days

0

40

Homelite JA408866

SCREW-Hex hd. sems #10-24 x.625

$3.99

$

Usually ships in 3-7 days

0

41

Homelite JA991067

SPRING-Flat (shift yoke)

$7.49

$

Usually ships in 3-7 days

0

42

Homelite JA991091

SPRING-Flat (shift yoke)

$

$

Currently unavailable

43

Homelite JA991068

BRACKET-Yoke

$8.49

$

Usually ships in 3-7 days

0

44

Homelite JA990841

SHIFT LEVER-Yoke

$

$

Currently unavailable

45

Homelite JA990867

BUSHING

$

$

Currently unavailable

46

Homelite JA460026

PIN-Cotter 1/8 x 3/4 plated

$2.99

$

Usually ships in 3-7 days

0

47

Homelite JA990839

GEARSHIFT LEVER

$

$

Currently unavailable

48

Homelite JA446116

WASHER-Lock #10

$

$

Currently unavailable

49

Homelite JA444310

NUT-Hex 10-24
(Superseded to 81092)

$

$

Not available

50

Homelite JA453011

WASHER-Flat 3/8
(Superseded to PS84010)

$

$

Not available

51

Homelite JA990831

LOCATER-Gear shift

$

$

Currently unavailable

52

Homelite JA990783

KNOB-Shift lever

$

$

Currently unavailable

53

Homelite JA392593

TRANSMISSION PULLEY

$

$

Currently unavailable

54

Homelite JA458009

RING-Snap

$

$

Not available

55

Homelite JA991166

BELT GUARD-Transmission

$

$

Currently unavailable

56

Homelite JA991086

ANGLE-Short

$

$

Currently unavailable

57

Homelite JA991185

ANGLE-Long

$

$

Currently unavailable

58

Homelite JA400108

BOLT-1/4-20
(Superseded to 80052)

$

$

Not available

59

Homelite JA463017

KEY-Transmission

$

$

Currently unavailable

60

Homelite JA990976

TRANSMISSION-Peerless Tecumseh

$

$

Currently unavailable

61

Homelite JA990739

CHAIN-Drive

$

$

Currently unavailable

62

Homelite JA470502

CONNECTING LINK-Chain

$

$

Currently unavailable

63

Homelite JA990981

SWITCH-Neutral safety

$

$

Currently unavailable

64

Homelite JA991077

NEUTRAL START SAFETY INTERLOCK

$

$

Currently unavailable

65

Homelite JA991168

FRAME

$

$

Currently unavailable

66

Homelite JA339528

DECAL-Ignition switch

$

$

Currently unavailable

67

Homelite JA990996

DECAL-Instruction

$

$

Currently unavailable

68

Homelite JA990738

BELT-Transmission

$

$

Not available

69

Homelite JA990997

DECAL-Shift pattern

$

$

Currently unavailable
