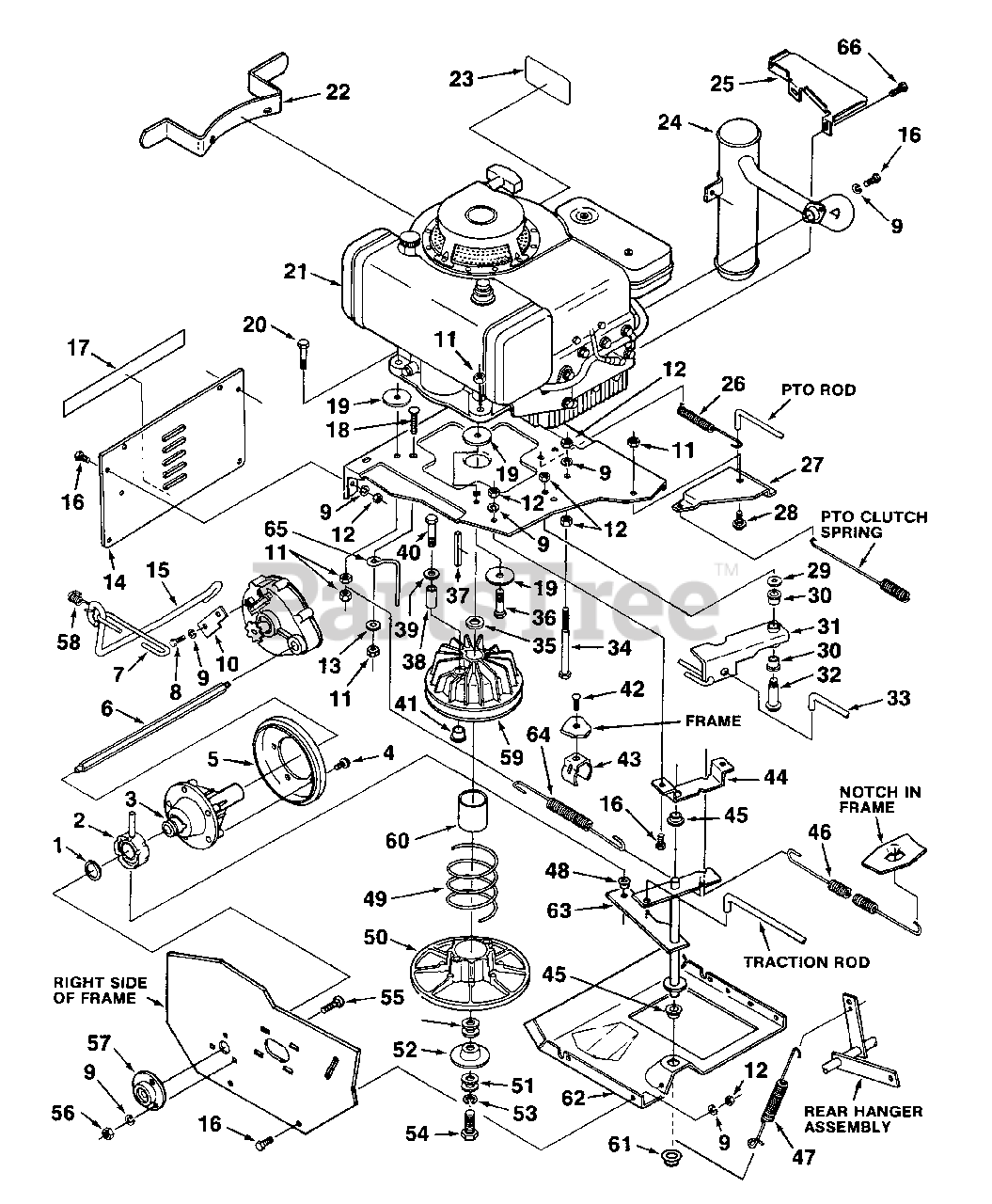

RMX 8 (UT-32000) - Homelite Rear-Engine Riding Mower Engine and Drive System Parts Diagram

Rear-Engine Riding Mower

Engine and Drive System Parts Diagram

  • Title

1

Homelite JA458039

RING- Snap

$

$

Not available

2

Homelite JA181863

SLEEVE & BEARING ASSY.

$

$

Currently unavailable

3

Homelite JA993280

HUB- Driven

$

$

Currently unavailable

4

Homelite JA409909

SCREW- 1/4-20 x.750

$

$

Currently unavailable

5

Homelite JA990152

WHEEL- Drive

$

$

Not available

6

Homelite JA990422

SHAFT- Hex

$

$

Currently unavailable

7

Homelite JA375974

LINK- Connecting

$

$

Currently unavailable

8

Homelite JA408875

SCREW

$

$

Currently unavailable

9

Homelite JA446130

WASHER-

Note: (RMX-830 & RMX-830E)

$

$

Not available

Homelite JA446136

WASHER-
(Superseded to UP03791)

Note: (RMX-1130E)

$

$

Not available

10

Homelite JA375971

RETAINER- Rod

$

$

Currently unavailable

11

Homelite JA444718

NUT

$

$

Not available

12

Homelite JA443102

NUT
(Superseded to JA993730)

$

$

Not available

13

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

14

Homelite JA990027

PANEL

$

$

Currently unavailable

15

Homelite JA339567

ROD- Brake

$

$

Currently unavailable

16

Homelite JA400106

SCREW-

Note: (RMX-830 & RMX-830E)

$

$

Currently unavailable

Homelite JA400184

SCREW-
(Superseded to UP03381)

Note: (RMX-1130E)

$

$

Not available

17

Homelite JA990060

DECAL- 7"

$

$

Currently unavailable

18

Homelite JA441602

BOLT- Rd sq neck

$4.99

$

Usually ships in 3-7 days

0

19

Homelite JA350929

WASHER

$

$

Not available

20

Homelite JA400196

SCREW

$

$

Currently unavailable

21

Homelite JA142133

ENGINE- B&S 8HP

Note: (RMX-830)

$

$

Currently unavailable

Homelite JA142134

ENGINE- B&S 8HPE

Note: (RMX-830E)

$

$

Currently unavailable

Homelite JA142135

ENGINE- B&S 11HPE

Note: (RMX-1130E)

$

$

Currently unavailable

22

Homelite JA990029

BRACKET

$

$

Currently unavailable

23

Homelite JA339569

DECAL

$

$

Currently unavailable

24

Homelite JA117784

MUFFLER

Note: (RMX-830 & RMX-830E)

$

$

Currently unavailable

Homelite JA117785

MUFFLER

Note: (RMX-1130E)

$

$

Currently unavailable

25

Homelite JA992650

SHIELD- Muffler

$

$

Currently unavailable

26

Homelite JA375887

SPRING

$

$

Currently unavailable

27

Homelite JA339495

CRANK- Bell

$

$

Currently unavailable

28

Homelite JA375431

BOLT

$

$

Not available

29

Homelite JA452006

WASHER

$

$

Currently unavailable

30

Homelite JA311448

BUSHING

$

$

Currently unavailable

31

Homelite JA990025

BRAKE ASSEMBLY

$

$

Currently unavailable

32

Homelite JA376007

BOLT

$

$

Currently unavailable

33

Homelite JA375973

ROD- Brake

$

$

Currently unavailable

34

Homelite JA400136

BOLT- Hex

$

$

Currently unavailable

35

Homelite JA453013

WASHER- Flat
(Superseded to 84047)

$

$

Not available

36

Homelite JA400192

SCREW

$

$

Currently unavailable

37

Homelite JA312321

KEY

$

$

Not available

38

Homelite JA990421

SPACER- Pulley

$

$

Currently unavailable

39

Homelite JA452004

WASHER
(Superseded to 84026)

$

$

Not available

40

Homelite JA375972

BOLT

$

$

Currently unavailable

41

Homelite JA375961

BUSHING

$

$

Not available

42

Homelite JA409252

SCREW

$

$

Currently unavailable

43

Homelite JA518978

HINGE

$

$

Currently unavailable

44

Homelite JA375864

BEARING- Support pivot

$

$

Currently unavailable

45

Homelite JA348883

BUSHING

$

$

Currently unavailable

46

Homelite JA990540

SPRING- Extension

$

$

Currently unavailable

47

Homelite JA375884

SPRING

$

$

Currently unavailable

48

Homelite JA375927

BUSHING- Pin

$7.49

$

Usually ships in 3-7 days

0

49

Homelite JA990530

SPRING- Compression

$

$

Currently unavailable

50

Homelite JA992230

DISC- Drive (w/bushing)

$

$

Currently unavailable

51

Homelite JA347073

WASHER

$

$

Currently unavailable

52

Homelite JA375966

RETAINER

$

$

Not available

53

Homelite JA446148

WASHER

$

$

Not available

54

Homelite JA401194

SCREW

$

$

Currently unavailable

55

Homelite JA441664

BOLT

$

$

Currently unavailable

56

Homelite JA444708

NUT

$

$

Currently unavailable

57

Homelite JA992710

RETAINER & BEARING

$

$

Currently unavailable

58

Homelite JA375916

SPRING

$

$

Not available

59

Homelite JA990672

PULLEY- Engine w/bushing

Note: Includes:

$

$

Not available

60

Homelite JA375959

BUSHING

$

$

Currently unavailable

61

Homelite JA990700

CAP

$

$

Not available

62

Homelite JA990033

COVER- Bottom

$

$

Currently unavailable

63

Homelite JA995240

PIVOT SHAFT ASSY

$

$

Currently unavailable

64

Homelite JA991500

SPRING- Neutral reverse

$23.99

$

Usually ships in 3-7 days

0

65

Homelite JA994550

GUIDE- Belt

$

$

Currently unavailable

66

Homelite JA400104

SCREW
(Superseded to UP03379)

$

$

Not available

Homelite JA473165

TIE- Secure (not shown)

$

$

Currently unavailable

Homelite JA357995

TROUGH- Oil drain (not shown)

$

$

Currently unavailable
