RMX 8 E (UT-32017) - Homelite Rear-Engine Riding Mower Clutch And Brake Parts Diagram

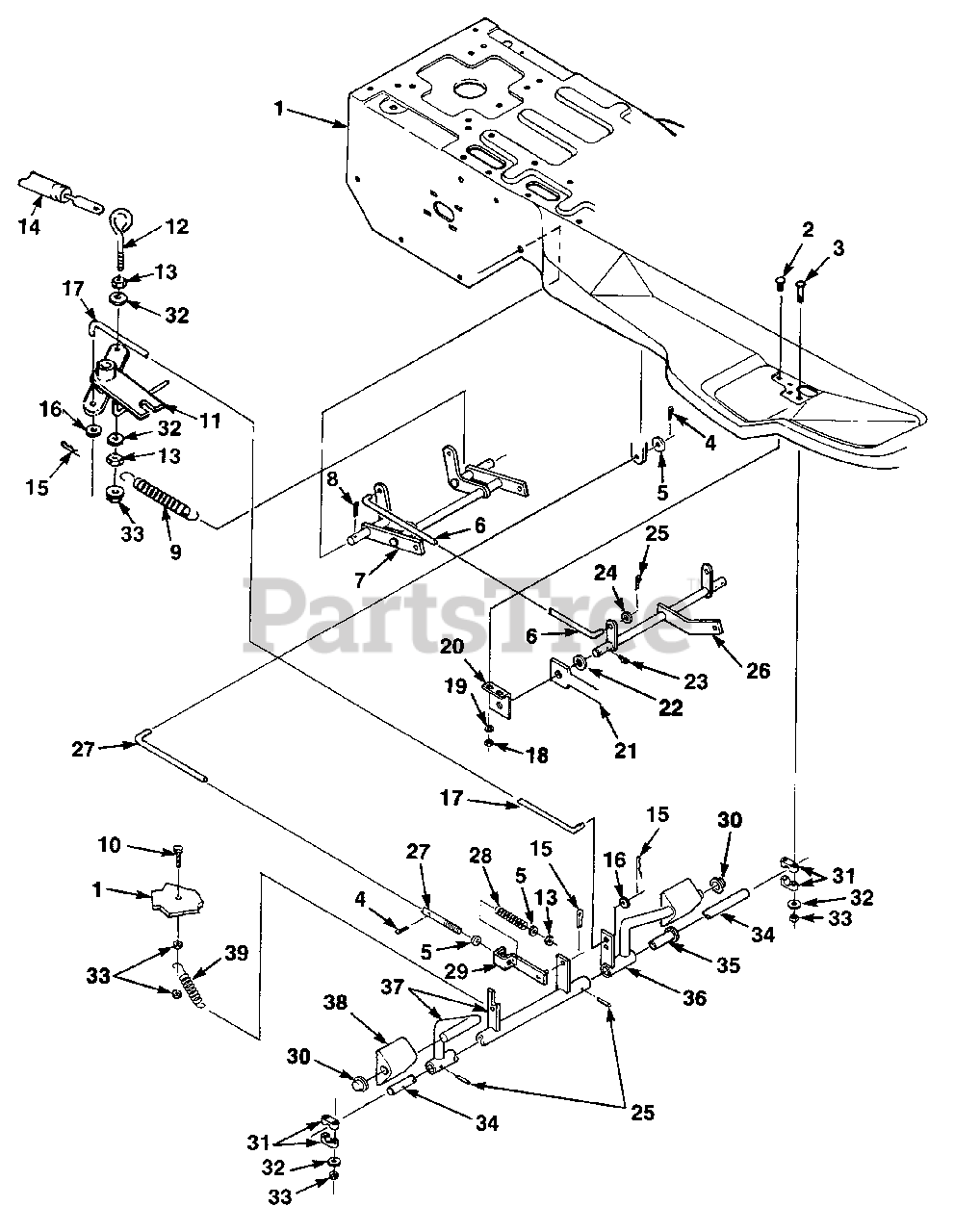

Rear-Engine Riding Mower

Clutch And Brake Parts Diagram

  • Title

$

$

Currently unavailable

2

Homelite JA441664

BOLT- Carr 1/4-20 x 5/8

$

$

Currently unavailable

3

Homelite JA440050

BOLT- 1/4-20 x 1 1/2

$

$

Currently unavailable

4

Homelite JA460016

PIN- Cotter

$

$

Currently unavailable

5

Homelite JA453009

WASHER (5/16 Plain)
(Superseded to UP07173)

$

$

Not available

6

Homelite JA991158

ROD- Deck lift

$

$

Currently unavailable

7

Homelite JA991163

BRACKET- Rear hanger

$

$

Currently unavailable

8

Homelite JA460306

PIN- Cotter

$

$

Not available

9

Homelite JA376088

SPRING- Extension

$

$

Not available

10

Homelite JA400106

SCREW- 1/4-20 x .625

$

$

Currently unavailable

11

Homelite JA991148

ARM- Pivot

$

$

Currently unavailable

12

Homelite JA354532

BOLT- Eye

$

$

Currently unavailable

13

Homelite JA443802

NUT- (Lead 1/4-20)

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Homelite JA460008

PIN- Cotter

$

$

Currently unavailable

16

Homelite JA452004

WASHER- 1/4
(Superseded to 84026)

$

$

Not available

17

Homelite JA991573

ROD- Clutch

$

$

Currently unavailable

18

Homelite JA443102

NUT- 1/4-20
(Superseded to JA993730)

$

$

Not available

19

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

20

$

$

Currently unavailable

21

Homelite JA990507

SUPPORT- Front axle

$

$

Currently unavailable

22

Homelite JA453017

WASHER- (Flat 7/16)

$

$

Not available

23

Homelite JA460212

PIN- Cotter

$

$

Currently unavailable

24

Homelite JA452008

WASHER- Plain (flat 7/16)

$3.49

$

Usually ships in 3-7 days

0

25

Homelite JA460212

PIN- Cotter

$

$

Currently unavailable

26

Homelite JA991164

HANGER- Front
(Superseded to JA993948)

$

$

Currently unavailable

27

Homelite JA991155

ROD- Brake

$

$

Currently unavailable

28

Homelite JA376121

SPRING- Brake

$

$

Currently unavailable

29

Homelite JA181969

BRACKET- Brake spring

$

$

Currently unavailable

30

Homelite JA375811

NUT- Push

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Homelite JA452004

WASHER- Flat 1/4 reg
(Superseded to 84026)

$

$

Not available

33

Homelite JA444708

NUT- Centerlock hex- 1/4-20

$

$

Currently unavailable

34

Homelite JA991157

PEDAL SHAFT

$

$

Currently unavailable

35

$

$

Currently unavailable

36

Homelite JA991159

PEDAL- Clutch

$

$

Currently unavailable

37

Homelite JA991156

PEDAL- Brake

$

$

Currently unavailable

38

Homelite JA345020

PEDAL- Rubber

$

$

Currently unavailable

39

$

$

Currently unavailable
