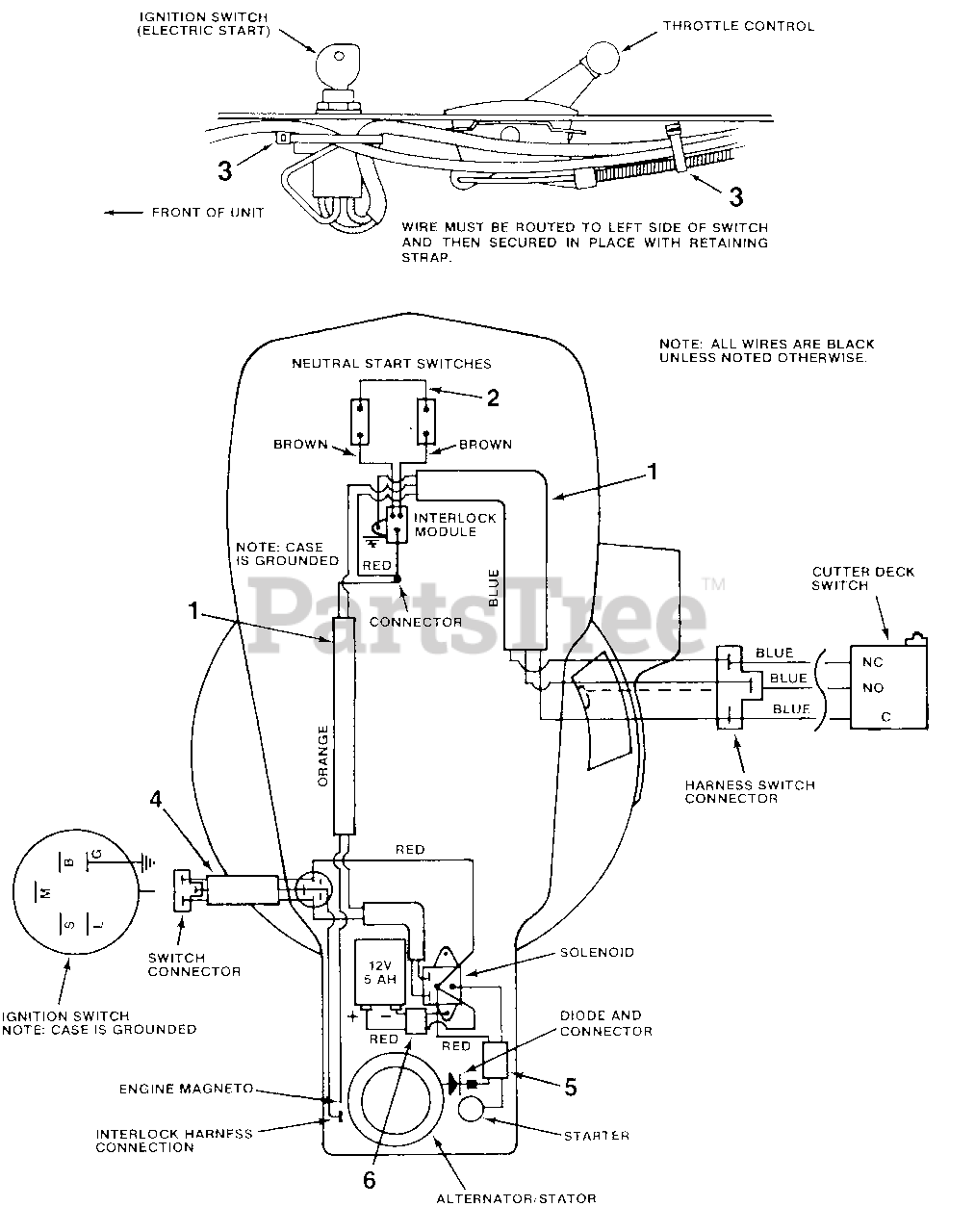

RMX 8 E (UT-32001) - Homelite Rear-Engine Riding Mower Wiring Diagram Parts Diagram

Rear-Engine Riding Mower

Wiring Diagram Parts Diagram

  • Title
1

Homelite JA339617

HARNESS- Wire

Note: Recoil Start Model only.

$

$

Currently unavailable

2

Homelite JA375897

HARNESS- Interlock

$

$

Currently unavailable

3

Homelite JA473137

STRAP- Harness Retaining

$

$

Currently unavailable

4

Homelite JA339616

HARNESS- Switch

Note: Electric Start Models only.

$

$

Currently unavailable

5

Homelite JA375896

HARNESS- Start

Note: Electric Start Models only.

$

$

Not available

6

Homelite JA330016

CABLE- Battery

Note: Electric Start Models only.

$

$

Currently unavailable
