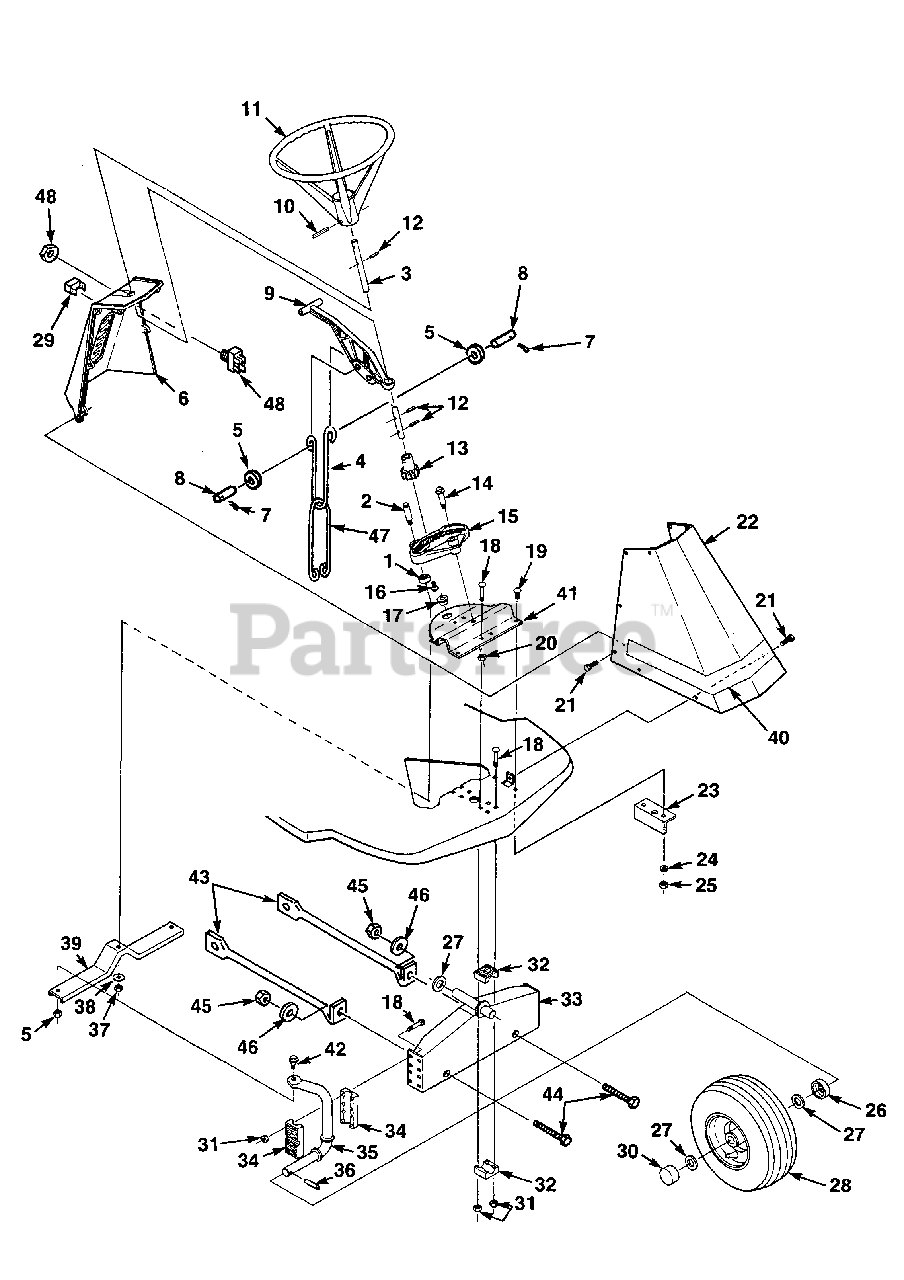

RMX 11 E (UT-32015) - Homelite Rear-Engine Riding Mower Steering And Mower Lift Parts Diagram

Rear-Engine Riding Mower

Steering And Mower Lift Parts Diagram

  • Title
1

$

$

Not available

2

Homelite JA375867

STEER-Stud

$

$

Not available

$

$

Currently unavailable

4

Homelite JA990219

LINK-Lift

$

$

Currently unavailable

$

$

Not available

6

Homelite JA991196

PANEL-Console

$

$

Not available

7

Homelite JA460026

PIN-Cotter

$2.99

$

Usually ships in 3-7 days

0

8

Homelite JA990429

PIN-Retainer

$

$

Currently unavailable

9

Homelite JA330001

HANDLE-Lift

$

$

Currently unavailable

$

$

Not available

11

Homelite JA336146

WHEEL-Steering

$

$

Currently unavailable

$

$

Not available

13

$

$

Currently unavailable

$

$

Currently unavailable

15

Homelite JA229622

SECTION-Steering

$

$

Currently unavailable

16

Homelite JA409907

SCREW-1/4-20 x 1/2

$

$

Not available

17

$

$

Not available

$3.99

$

Usually ships in 3-7 days

0

$

$

Not available

$

$

Currently unavailable

$

$

Not available

22

$

$

Currently unavailable

23

$

$

Currently unavailable

24

$

$

Not available

25

Homelite JA443102

NUT
(Superseded to JA993730)

$

$

Not available

26

Homelite JA375411

WASHER-Dust

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Homelite JA120446

WHEEL & TIRE
(Superseded to JA992072)

$

$

Currently unavailable

29

Homelite JA990978

LIGHT INDICATOR

$

$

Currently unavailable

30

$

$

Currently unavailable

$

$

Currently unavailable

32

$

$

Not available

33

Homelite JA990015

AXLE-Front

$

$

Currently unavailable

34

$

$

Not available

35

Homelite JA995450

SPINDLE-LH Wheel

$

$

Currently unavailable

Homelite JA995440

SPINDLE-RH Wheel

$

$

Currently unavailable

36

Homelite JA461418

PIN
(Superseded to 70763)

$

$

Not available

$

$

Currently unavailable

38

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available

39

$

$

Currently unavailable

40

Homelite JA990993

DECAL-Product identification

$

$

Currently unavailable

41

Homelite JA392523

BRACKET-Reinforcement
(Superseded to JA994511)

$

$

Currently unavailable

$

$

Currently unavailable

43

Homelite JA990507

SUPPORT-Frame axle

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

46

Homelite JA453011

WASHER-Plain
(Superseded to PS84010)

$

$

Not available

47

Homelite JA990269

LINK-Lower lift

$39.99

$

Usually ships in 3-7 days

0

48

Homelite JA990135

SWITCH-PTO
(Superseded to UP06659)

$

$

Not available
