RMX 11 E (UT-32002) - Homelite Rear-Engine Riding Mower Seat Assembly Parts Diagram

Rear-Engine Riding Mower

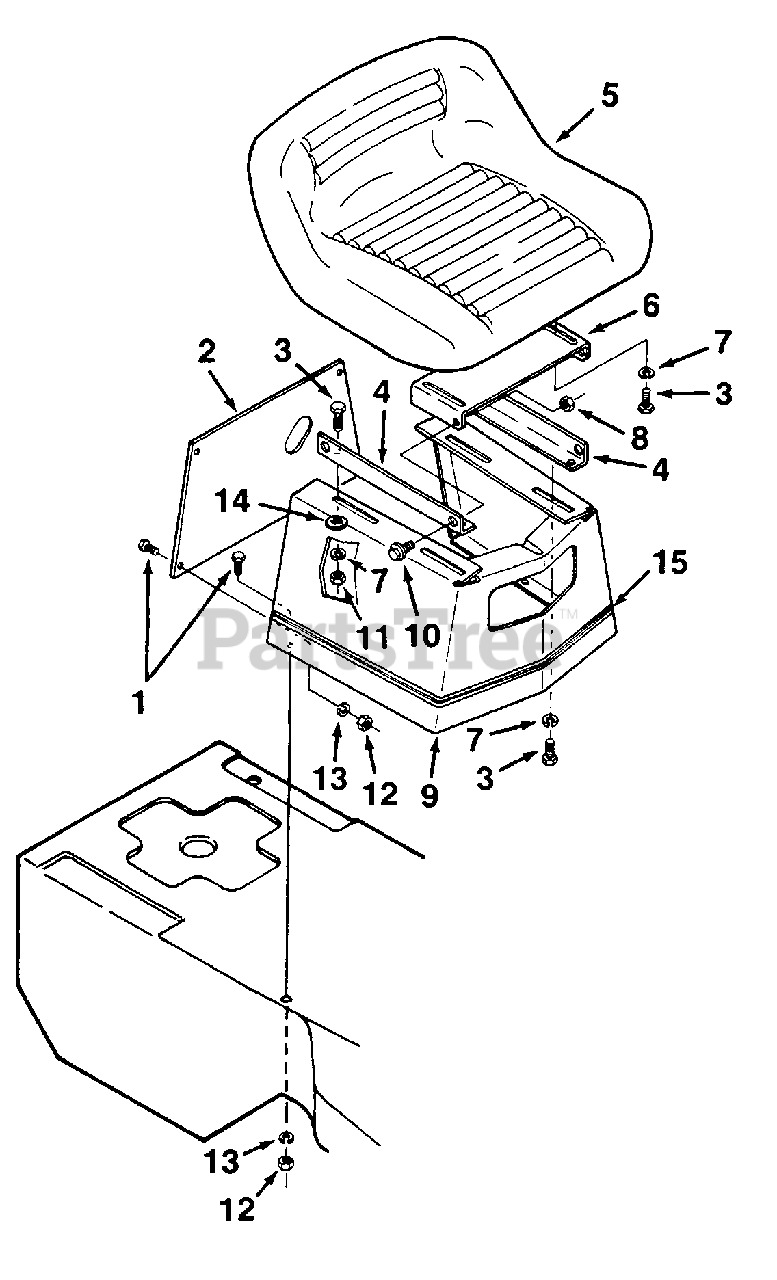

Seat Assembly Parts Diagram

  • Title

$

$

Currently unavailable

$

$

Currently unavailable

3

Homelite JA400184

SCREW- 5/16-18 x 3/4 hex
(Superseded to UP03381)

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Homelite JA446136

WASHER
(Superseded to UP03791)

$

$

Not available

$

$

Not available

9

Homelite JA990046

SUPPORT- Seat

$

$

Currently unavailable

$

$

Not available

11

Homelite JA443106

NUT
(Superseded to 81018)

$

$

Not available

12

Homelite JA443102

NUT
(Superseded to JA993730)

$

$

Not available

13

$

$

Not available

14

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

$

$

Currently unavailable
