RM752 A - Honda 42" Rear-Mount Mower Attachment MOUNTING FRAME ASSEMBLY (RM752A-DB3059) Parts Diagram

42" Rear-Mount Mower Attachment

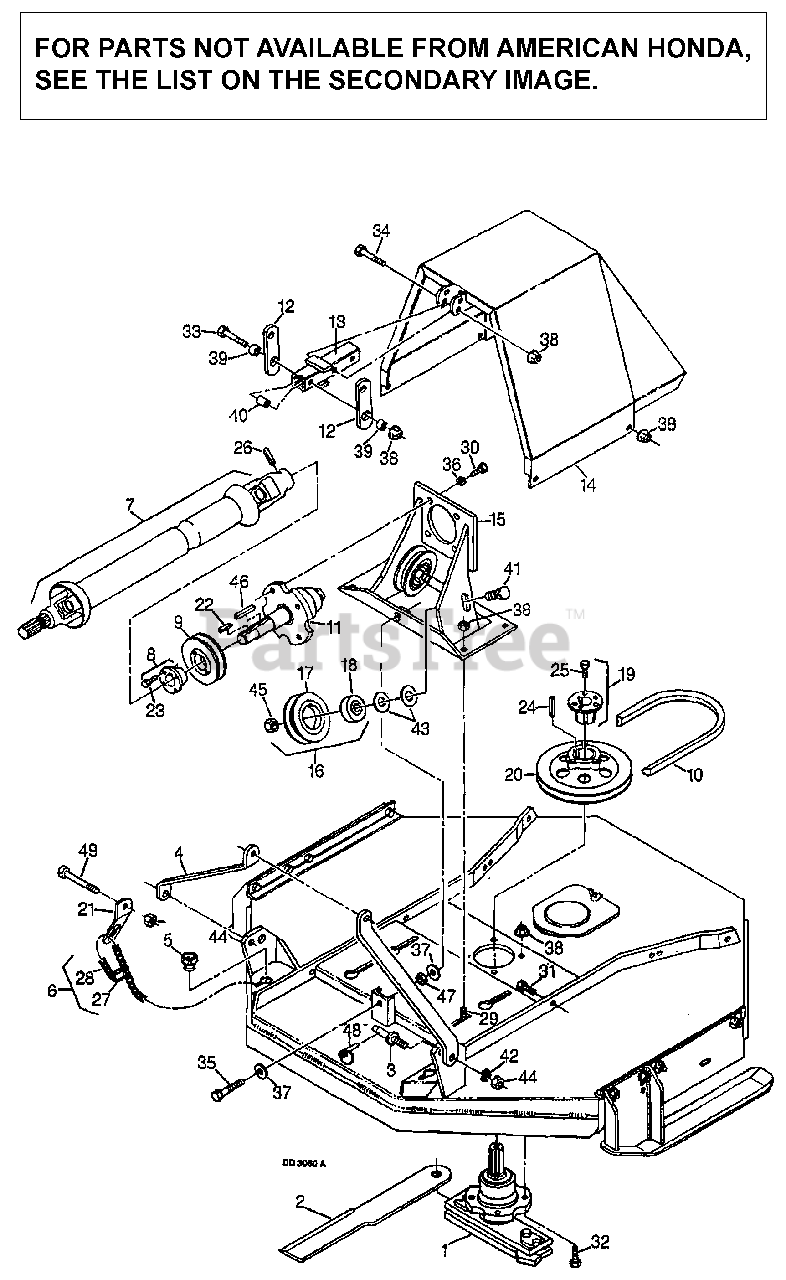

MOUNTING FRAME ASSEMBLY (RM752A-DB3059) Parts Diagram

  • Title

1

Honda 72995-0077

SPINDLE, BLADE CW

$1096.99

$

Usually ships in 3-6 days

0

2

Honda 72995-0032

BLADE

$203.99

$

Usually ships in 3-6 days

0

2

Honda 72995-0033

BLADE

$

$

Not available

3

Honda 72995-0034

PIN, MOUNTING

$21.99

$

Usually ships in 3-6 days

0

4

Honda 72995-0035

BAR, A-FRAME

$146.99

$

Usually ships in 3-6 days

0

5

Honda 72995-0036

PLUG, CAP

$0.99

$

Usually ships in 3-6 days

0

6

Honda 72995-0037

CHAIN, CHECK

$47.99

$

Usually ships in 3-6 days

0

8

Honda 72995-0039

BUSHING

$49.99

$

Usually ships in 3-6 days

0

9

Honda 72995-0040

SHEAVE

$102.99

$

Usually ships in 3-6 days

0

10

Honda 72995-0041

V-BELT (W44)

$

$

Not available

11

Honda 72995-0042

SPINDLE ASSY., DRIVE

$679.99

$

Usually ships in 3-6 days

0

12

Honda 72995-0043

LINK, TOP PIVOT

$106.99

$

Usually ships in 3-6 days

0

13

Honda 72995-0044

TUBE ASSY., TOP LINK

$248.99

$

Usually ships in 3-6 days

0

14

Honda 72995-0045

SHIELD, DRIVE

$735.99

$

Usually ships in 3-6 days

0

15

Honda 72995-0046

BRACKET ASSY., IDLER

$365.99

$

Usually ships in 3-6 days

0

16

Honda 76195-764-L31

PULLEY, IDLER

$

$

Not available

17

Honda 72995-0048

IDLER, V-GROOVE

$93.99

$

Usually ships in 3-6 days

0

18

Honda 72995-0049

BEARING, BALL

$94.99

$

Usually ships in 3-6 days

0

19

Honda 72995-0050

BUSHING

$83.99

$

Usually ships in 3-6 days

0

20

Honda 72995-0051

SHEAVE

$212.99

$

Usually ships in 3-6 days

0

21

Honda 72995-0120

BRACKET, CHECK CHAIN

$

$

Not available

22

Honda 72995-0052

KEY (1/4 X 1/4 X 1-1/4)

$2.99

$

In Stock, Qty 5

0

24

Honda 72995-0054

KEY (1/4 X 3/8 X 2)

$6.99

$

Usually ships in 3-6 days

0

30

Honda 72995-0060

SCREW, CAP

$1.99

$

Usually ships in 3-6 days

0

31

Honda 72995-0061

SCREW, CAP

$1.49

$

Usually ships in 3-6 days

0

32

Honda 72995-0061

SCREW, CAP

$1.49

$

Usually ships in 3-6 days

0

35

Honda 72995-0065

SCREW, CAP (1/2 X 1-1/2")

$2.49

$

Usually ships in 3-6 days

0

38

Honda 72995-0031

NUT, LOCK

$0.99

$

Usually ships in 3-6 days

0

39

Honda 72995-0069

SLEEVE, HT (1/2 X 3/4 X 3/8)

$7.49

$

Usually ships in 3-6 days

0

40

Honda 72995-0070

SLEEVE, WALL (17GA)

$49.99

$

Usually ships in 3-6 days

0

47

Honda 72995-0076

NUT, HEX. (1/2")

$0.99

$

Usually ships in 3-6 days

0
