RM 5520 R (41AY85AG883) - Remington Chainsaw Engine Assembly Parts Diagram

Chainsaw

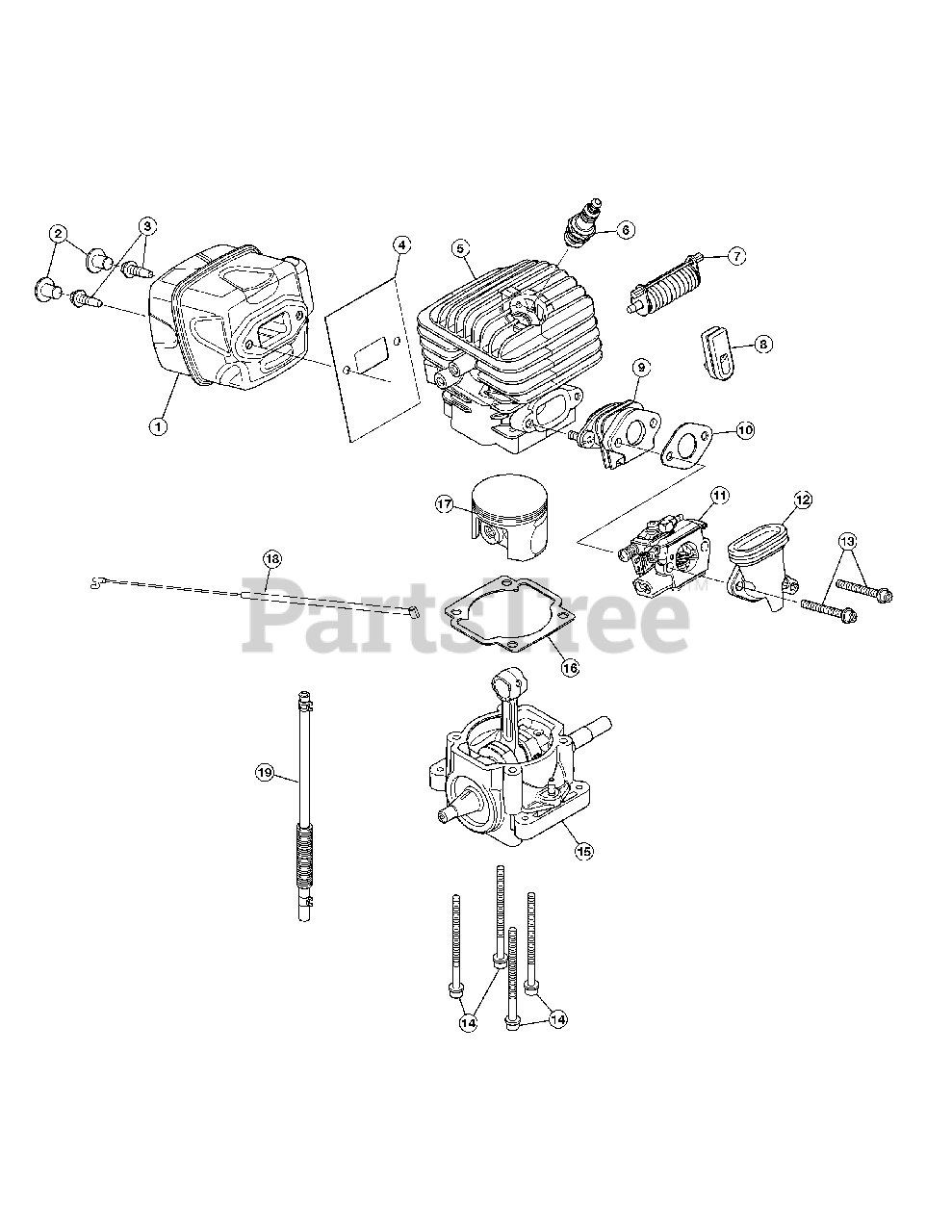

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06268

Muffler Assembly (Incl. 2, 3 & 4)

$

$

Not available

2

MTD 753-06507

Muffler Plug

$

$

Not available

3

MTD 753-06397

Muffler Screw

$

$

Not available

4

MTD 753-06398

Muffler Gasket

$3.49

$

Usually ships in 3-6 days

0

5

MTD 753-06742

Cylinder Assembly (Incl. 6, 8 & 10)

$

$

Not available

6

MTD 794-00097

Spark Plug

$6.99

$

In Stock, only 1 left!

0

7

MTD 753-06404

Isolator Assembly

$6.49

$

Usually ships in 3-6 days

0

8

MTD 753-06411

Grommet

$2.49

$

Usually ships in 3-6 days

0

9

MTD 753-06727

Insulator Assembly

$

$

Not available

10

MTD 753-06406

Carburetor Gasket

$

$

Not available

11

MTD 753-06728

Carburetor

$32.99

$

In Stock, only 1 left!

0

12

MTD 753-06385

Boot & Bracket Assembly (Incl. 8 & 18)

$

$

Not available

13

MTD 753-06410

Carburetor Hardware

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-06402

Cylinder Hardware

$2.99

$

Usually ships in 3-6 days

0

15

MTD 753-08460

Shortblock Assembly (Incl. 4 - 10)

$

$

Not available

16

MTD 753-06400

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

17

MTD 753-06401

Piston Assembly

$

$

Not available

18

MTD 753-06409

Throttle Cable

$

$

Not available

19

MTD 753-06726

Breather Hose (with Clamp)

$3.49

$

Usually ships in 3-6 days

0
