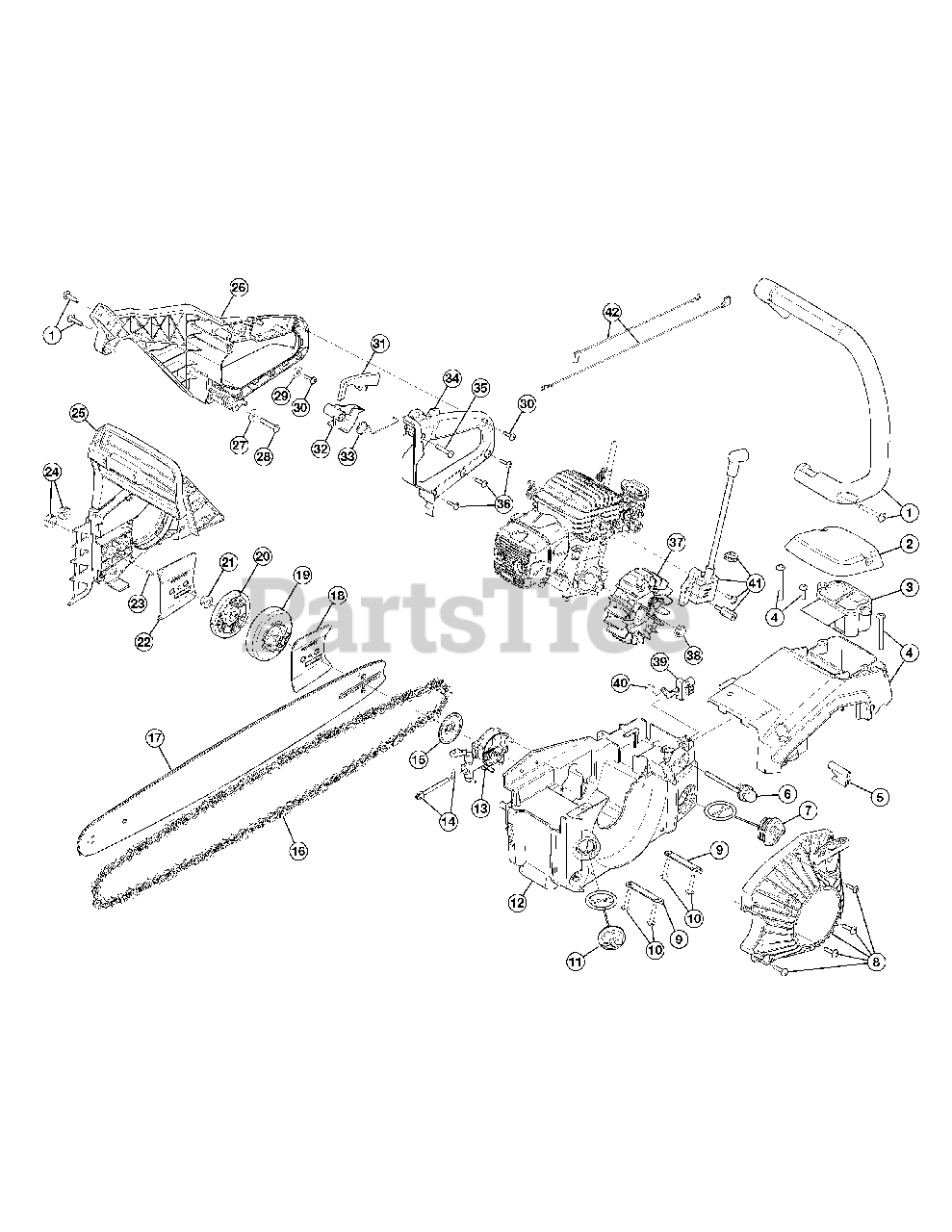

RM 5118 R (41AY80AG883) - Remington Chainsaw General Assembly Parts Diagram

Chainsaw

General Assembly Parts Diagram

  • Title

1

MTD 753-06483

Handle Assembly with Screws

$11.99

$

In Stock, only 2 left!

0

2

MTD 753-06458

Air Cleaner Cover Assembly

$2.49

$

Usually ships in 3-6 days

0

3

MTD 753-06457

Air Cleaner Assembly

$

$

Not available

4

MTD 753-06456

Top Cover Assembly (Incl. 5)

$12.99

$

Usually ships in 3-6 days

0

5

MTD 753-06739

Boot

$5.99

$

Usually ships in 3-6 days

0

6

MTD 753-06425

Primer Bulb Assembly

$

$

Not available

7

MTD 753-06978

Fuel Cap

$

$

Not available

8

MTD 753-06974

Starter Housing Assembly

$

$

Not available

9

MTD 753-06431

Engine Mount Plate Assembly (Incl. 10)

$2.99

$

Usually ships in 3-6 days

0

10

MTD 753-06429

Engine Mount Screw

$

$

Not available

11

MTD 753-06505

Oil Cap

$3.49

$

In Stock, Qty 9

0

12

MTD 753-06730

Housing Assembly (Incl. 6, 7 & 11)

$

$

Not available

13

MTD 753-06387

Oil Pump Assembly

$

$

Not available

14

MTD 753-06484

Tension Screw & Nut Assembly

$

$

Not available

15

MTD 753-06451

Oil Pump Shield

$2.99

$

Usually ships in 3-6 days

0

16

MTD 753-06265

18" Chain
(Superseded to 713-05043)

$36.99

$

In Stock, only 1 left!

0

17

MTD 753-06977

Chain Guide Bar
(Superseded to 795-00288)

$35.99

$

In Stock, only 1 left!

0

18

MTD 753-06740

Inner Guide Plate

$

$

Not available

19

MTD 753-06450

Clutch Drum Assembly

$

$

Not available

20

MTD 753-06449

Clutch

$16.99

$

Usually ships in 3-6 days

0

21

MTD 753-06461

Clutch Nut

$2.49

$

Usually ships in 3-6 days

0

22

MTD 753-06488

Outer Guide Plate

$

$

Not available

23

MTD 753-06487

Guide Plate Screw

$2.49

$

Usually ships in 3-6 days

0

24

MTD 753-06460

Chain Guide Bar Nut

$2.99

$

In Stock, Qty 20+

0

25

MTD 753-06973

Chain Brake Assembly

$

$

Not available

26

MTD 753-06738

Rear Handle Assembly

$14.99

$

Usually ships in 3-6 days

0

27

MTD 753-06477

Grip Anti-vibration Washer

$2.49

$

Usually ships in 3-6 days

0

28

MTD 753-06478

Grip Anti-vibration Screw

$2.49

$

Usually ships in 3-6 days

0

29

MTD 753-06479

Throttle Clamp Washer

$2.49

$

Usually ships in 3-6 days

0

30

MTD 753-06470

Throttle Clamp Screw

$2.99

$

In Stock, Qty 12

0

31

MTD 753-06735

Trigger Release

$3.49

$

Usually ships in 3-6 days

0

32

MTD 753-06736

Throttle Trigger

$2.99

$

Usually ships in 3-6 days

0

33

MTD 753-06466

Trigger Release Spring

$2.99

$

Usually ships in 3-6 days

0

34

MTD 753-06734

Rear Handle Cover Assembly (with Switch)

$

$

Not available

35

MTD 753-06467

Upper Grip Screw

$2.49

$

Usually ships in 3-6 days

0

36

MTD 753-06468

Lower Grip Screw
(Superseded to 753-06470)

$2.99

$

In Stock, Qty 12

0

37

MTD 753-06426

Flywheel Assembly

$19.99

$

Usually ships in 3-6 days

0

38

MTD 753-06427

Flywheel Nut

$2.99

$

Usually ships in 3-6 days

0

39

MTD 753-06737

Choke Lever Assembly

$

$

Not available

40

MTD 753-06474

Choke Rod

$2.99

$

In Stock, only 1 left!

0

41

MTD 753-08459

Module Assembly

$30.99

$

In Stock, only 2 left!

0

42

MTD 753-06510

Ground Wire

$2.99

$

Usually ships in 3-6 days

0

MTD 753-06489

Case

Note: Not Shown

$

$

Not available

MTD 753-06490

Wrench

Note: Not Shown

$

$

Not available
