RM 4618 (41BY469S883) - Remington Chainsaw General Assembly Parts Diagram

Chainsaw

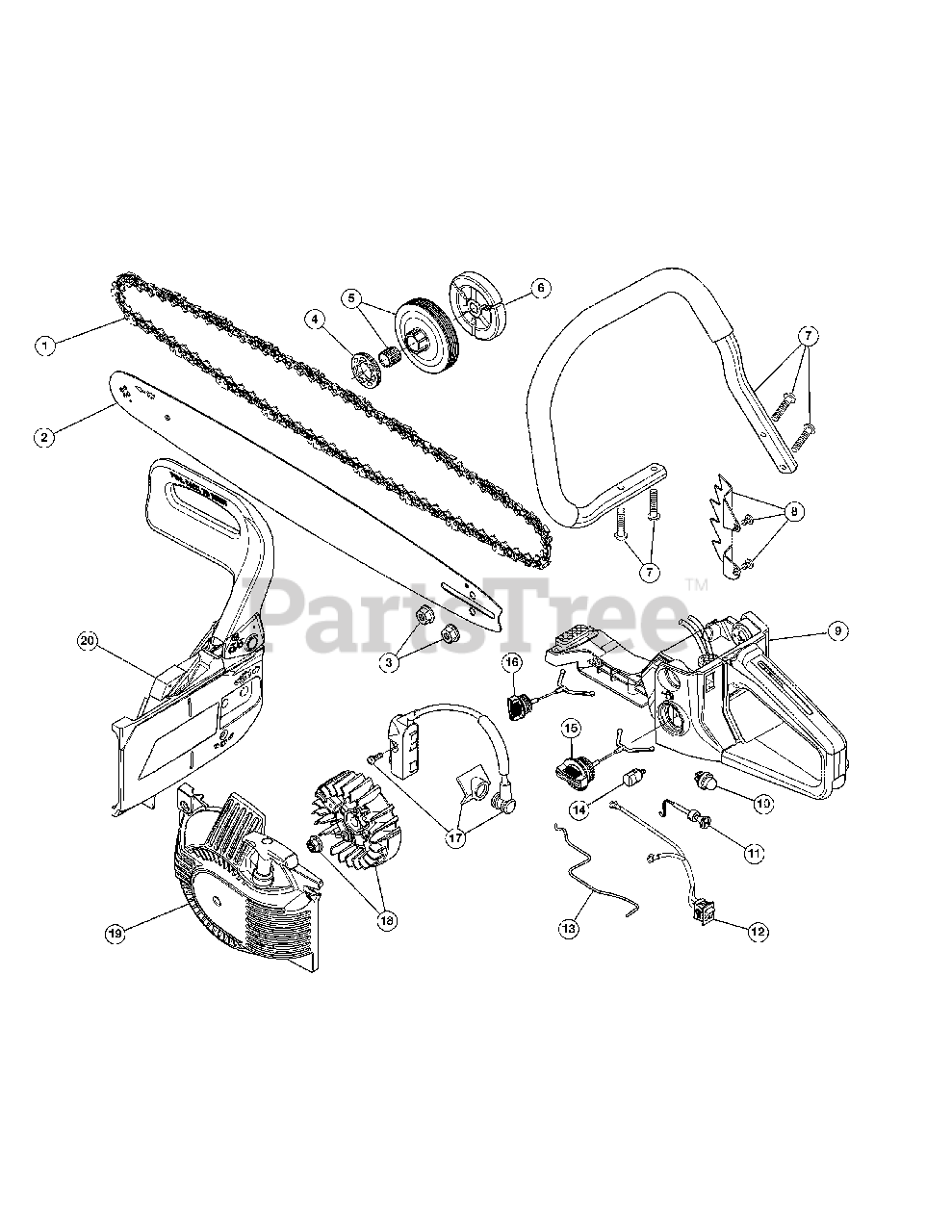

General Assembly Parts Diagram

  • Title

1

MTD 753-06265

Saw Chain 18" (for RM4618)
(Superseded to 713-05043)

Note: RM4618 41AY469S883

$36.99

$

In Stock, only 1 left!

0

1

MTD 753-08102

Saw Chain 20" (for RM4620)
(Superseded to 913-05044)

Note: RM4620 41AY462S883

$47.99

$

In Stock, Qty 12

0

2

MTD 753-06264

Guide Bar 18" (for RM4618)
(Superseded to 795-00288)

Note: RM4618 41AY469S883

$35.99

$

In Stock, only 1 left!

0

2

MTD 753-08101

Guide Bar 20" (for RM4620)
(Superseded to 795-00289)

Note: RM4620 41AY462S883

$38.99

$

In Stock, Qty 7

0

3

MTD 953-08105

Guide Bar Nuts (2)

$3.49

$

In Stock, Qty 20+

0

4

MTD 953-08219

Sprocket

$7.49

$

In Stock, only 4 left!

0

5

MTD 953-08220

Clutch Drum Assembly

$20.99

$

In Stock, Qty 20+

0

6

MTD 953-08145

Clutch Assembly

$15.99

$

In Stock, Qty 20+

0

7

MTD 953-08130

Chainsaw Handle Assembly (with Screws (4))

$18.99

$

Usually ships in 3-6 days

0

8

MTD 953-08128

Spike Plate (with Screws (2))

$5.49

$

Usually ships in 3-6 days

0

9

MTD 953-08142

Fuel Tank Assembly

$40.99

$

In Stock, only 2 left!

0

10

MTD 953-08127

Primer Bulb

$5.99

$

In Stock, Qty 20+

0

11

MTD 953-08221

Choke Lever Assembly

$3.49

$

In Stock, only 2 left!

0

12

MTD 953-08223

Stop Switch Assembly

$3.49

$

In Stock, Qty 16

0

13

MTD 953-08132

Throttle Rod

$3.49

$

In Stock, only 1 left!

0

14

MTD 953-08123

Fuel Filter

$11.99

$

Usually ships in 3-6 days

0

15

MTD 753-08133

Fuel Cap Assembly

$5.49

$

In Stock, only 3 left!

0

16

MTD 953-08222

Oil Cap Assembly

$5.49

$

In Stock, only 3 left!

0

17

MTD 953-08138

Ignition Module Assembly (with Screws (2))

$26.99

$

Usually ships in 3-6 days

0

18

MTD 953-08131

Flywheel Assembly

$20.99

$

In Stock, only 2 left!

0

19

MTD 753-08310

Starter Housing Assembly

$25.99

$

In Stock, Qty 20+

0

20

MTD 753-08143

Chainsaw Brake Assembly

$28.99

$

In Stock, Qty 17

0
