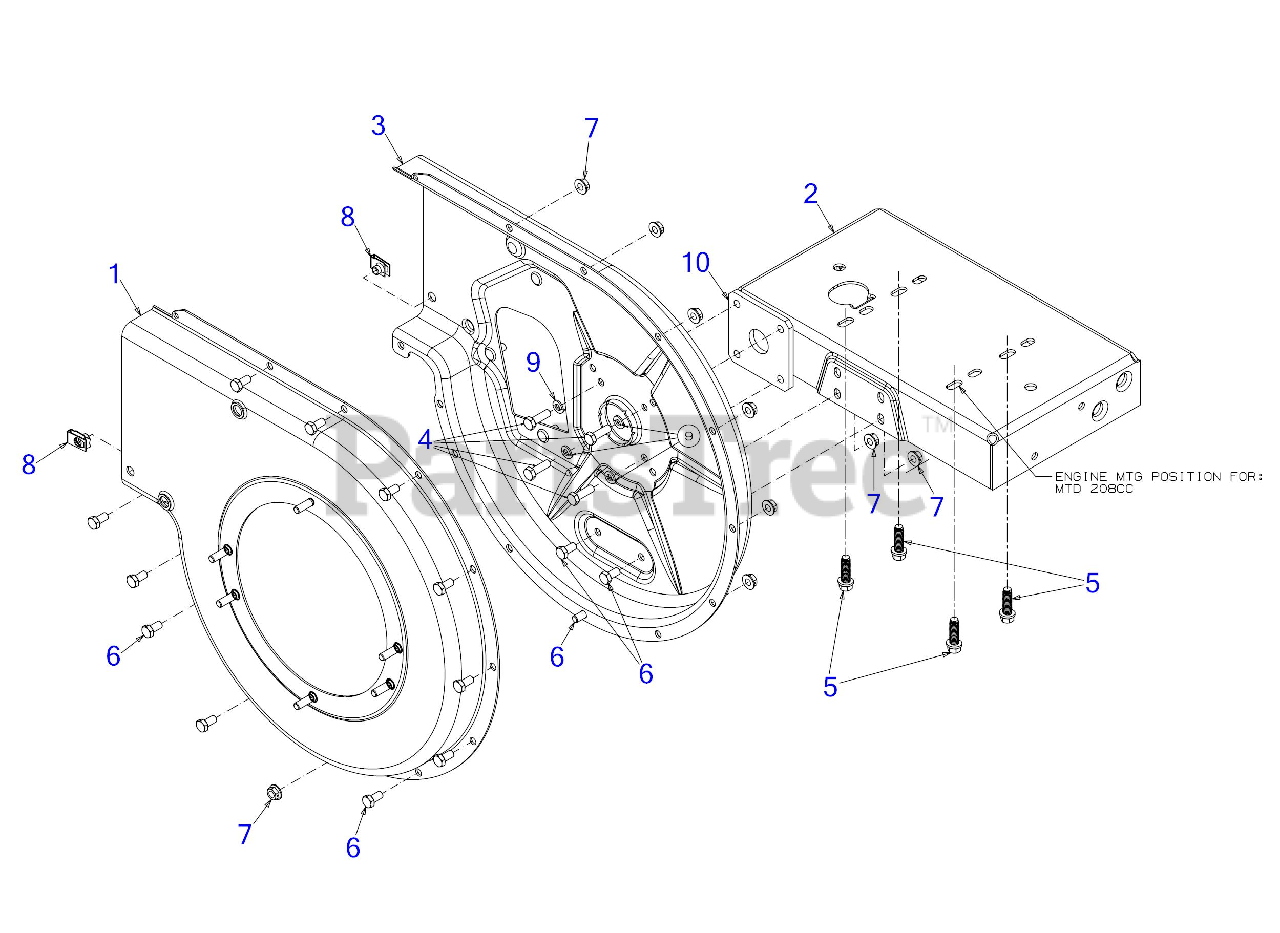

RM 45 MCS (24A-45M4783) - Remington Chipper Shredder (2017) Frame Assembly Parts Diagram

Chipper Shredder

Frame Assembly Parts Diagram

  • Title

1

MTD 681-0004A

FLAIL HOUSING ASSEMBLY (LH)

Note: (Choose Color When Ordering)

Variations

MTD 681-0004A-0498

HOUSING ASSY-FLAIL - OLD CUB YELLOW (0498)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0637

HOUSING ASSY-FLAIL - POWDER BLACK (0637)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0638

HOUSING ASSY-FLAIL - MTD/TROY-BILT RED (0638)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0483

HOUSING ASSY-FLAIL - CHARCOAL GRAY (0483)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0662

HOUSING ASSY-FLAIL - OYSTER GRAY (0662)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0665

HOUSING ASSY-FLAIL - YARDMAN GREEN (0665)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0668

HOUSING ASSY-FLAIL - MOSS GREEN (0668)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0689

HOUSING ASSY-FLAIL - POLO GREEN (0689)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0691

HOUSING ASSY-FLAIL - BLACK JACK (0691)

$236.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0709

HOUSING ASSY-FLAIL - MASTERCRAFT GREEN (0709)

$191.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-0721

HOUSING ASSY-FLAIL - SEARS RED (0721)

$219.99

$

Usually ships in 3-6 days

0

MTD 681-0004A-4044

HOUSING ASSY-FLAIL - CRAFTSMAN RED (4044)

$219.99

$

Usually ships in 3-6 days

0

$191.99

$

Usually ships in 3-6 days

0

2

MTD 681-0184C

FRAME ASSEMBLY

Note: (Choose Color When Ordering)

Variations

MTD 681-0184C-0483

FRAME ASM-SHREDDER - CHARCOAL GRAY (0483)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-0638

FRAME ASM-SHREDDER - MTD/TROY-BILT RED (0638)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-0689

FRAME ASM-SHREDDER - POLO GREEN (0689)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-0691

FRAME ASM-SHREDDER - BLACK JACK (0691)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-0709

FRAME ASM-SHREDDER - MASTERCRAFT GREEN (0709)

$102.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-0721

FRAME ASM-SHREDDER - SEARS RED (0721)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-4021

FRAME ASM-SHREDDER - CUB YELLOW 2 (4021)

$117.99

$

Usually ships in 3-6 days

0

MTD 681-0184C-4044

FRAME ASM-SHREDDER - CRAFTSMAN RED (4044)

$117.99

$

Usually ships in 3-6 days

0

$102.99

$

Usually ships in 3-6 days

0

3

MTD 681-05063

INNER FLAIL HOUSING

Note: (Choose Color When Ordering)

Variations

MTD 681-05063-4021

HSG-FLAIL INNER - CUB YELLOW 2 (4021)

$162.99

$

Usually ships in 3-6 days

0

MTD 681-05063-0638

HSG-FLAIL INNER - MTD/TROY-BILT RED (0638)

$162.99

$

Usually ships in 3-6 days

0

MTD 681-05063-0691

HSG-FLAIL INNER - BLACK JACK (0691)

$150.99

$

Usually ships in 3-6 days

0

MTD 681-05063-4044

HSG-FLAIL INNER - CRAFTSMAN RED (4044)

$150.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

4

MTD 710-0117A

HEX HEAD CAP SCREW 5/16-24 x 1.00 GR5

$5.49

$

Usually ships in 3-6 days

0

5

MTD 710-0502A

SCREW 3/8-16 x 1.250

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-3025

SCREW 5/16-18X .625 GR5

$3.99

$

In Stock, Qty 8

0

7

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 926-0211

U-NUT
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

9

MTD 936-0119

LOCK WASHER 5/16

$4.99

$

In Stock, Qty 20+

0

10

MTD 781-04292-0637

ENGINE PLATE

$8.99

$

Usually ships in 3-6 days

0
