RM-4300 - Echo Backpack Brush Cutter (SN: T85126001001 - T85126999999) Main Pipe, Handle Parts Diagram

Backpack Brush Cutter

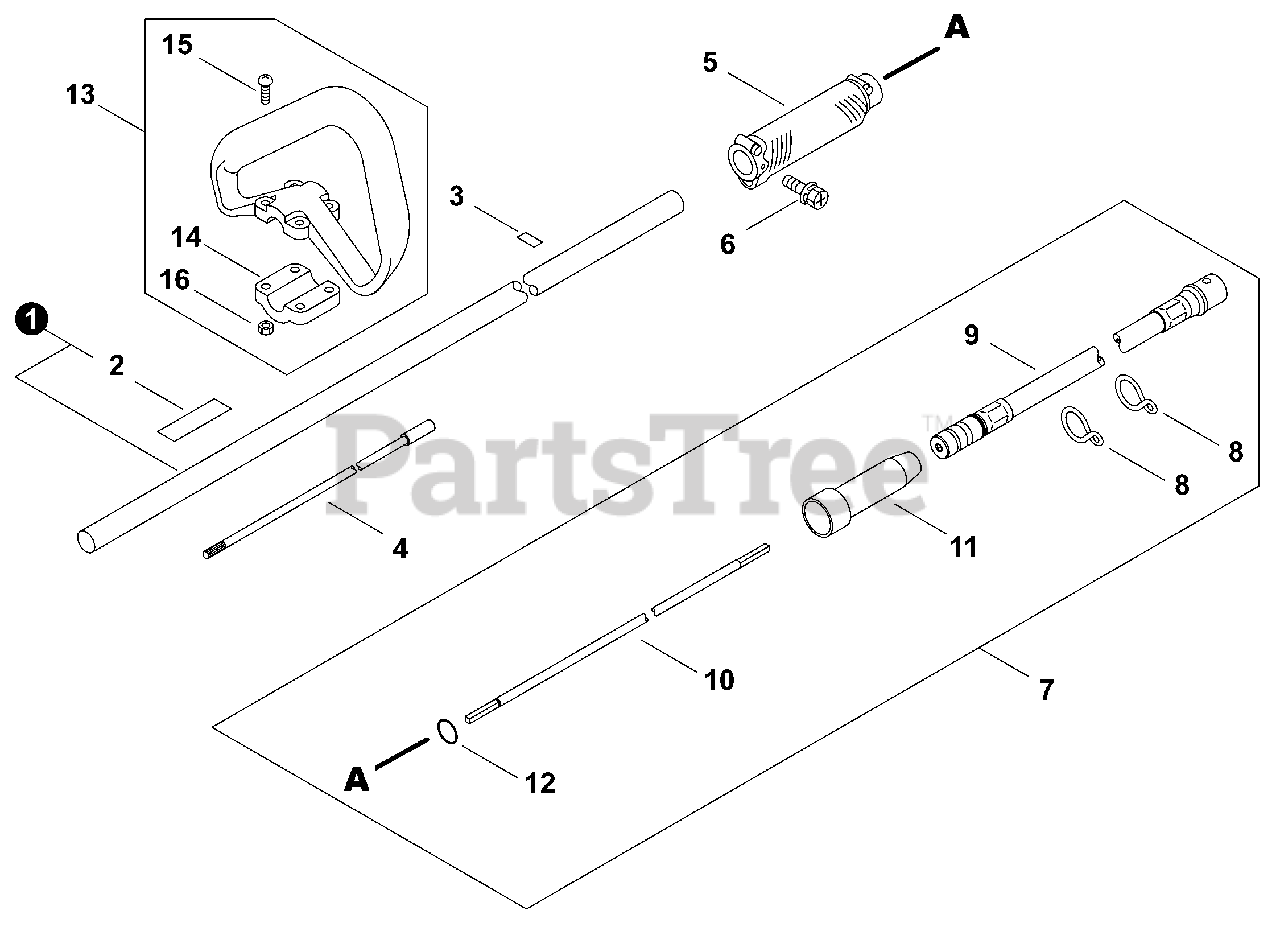

Main Pipe, Handle Parts Diagram

  • Title

1

Echo P021051180

MAIN PIPE ASSY

Note: Includes Item 2

$128.99

$

Usually ships in 2-4 days

0

2

Echo 89061743130

LABEL, CAUTION - ISO

$22.99

$

Usually ships in 2-4 days

0

3

Echo P022043480

LABEL, CAUTION

$2.99

$

Usually ships in 2-4 days

0

4

Echo P022043490

SHAFT, DRIVE

$145.99

$

Usually ships in 2-4 days

0

5

Echo P022043500

CONNECTOR, PIPE

$76.99

$

Usually ships in 2-4 days

0

6

Echo P022043510

BOLT

$1.99

$

Usually ships in 2-4 days

0

7

Echo P022043520

DRIVESHAFT - FLEXIBLE
(Superseded to P022043521)

Note: Includes Items 8-12

$213.99

$

Usually ships in 2-4 days

0

8

Echo 30031856330

HOOK
(Superseded to Discontinued)

$

$

Not available

9

Echo P022043530

LINER - FLEXIBLE

$128.99

$

Usually ships in 2-4 days

0

10

Echo 61001327630

DRIVESHAFT - FLEXIBLE
(Superseded to 61001350131)

$

$

Not available

11

Echo 61027664130

COVER

$11.99

$

Usually ships in 2-4 days

0

12

Echo P022021010

O-RING

$1.49

$

Usually ships in 2-4 days

0

13

Echo P022043540

HANDLE ASSY

Note: Includes Items 14-16

$28.99

$

Usually ships in 2-4 days

0

14

Echo P022043550

BRACKET, HANDLE

$5.49

$

Usually ships in 2-4 days

0

15

Echo P022043560

SCREW

$1.49

$

Usually ships in 2-4 days

0

16

Echo P022038940

NUT

$0.99

$

Usually ships in 2-4 days

0
