RM 430 (41AS99MS983) - Remington Blower General Assembly Parts Diagram

Blower

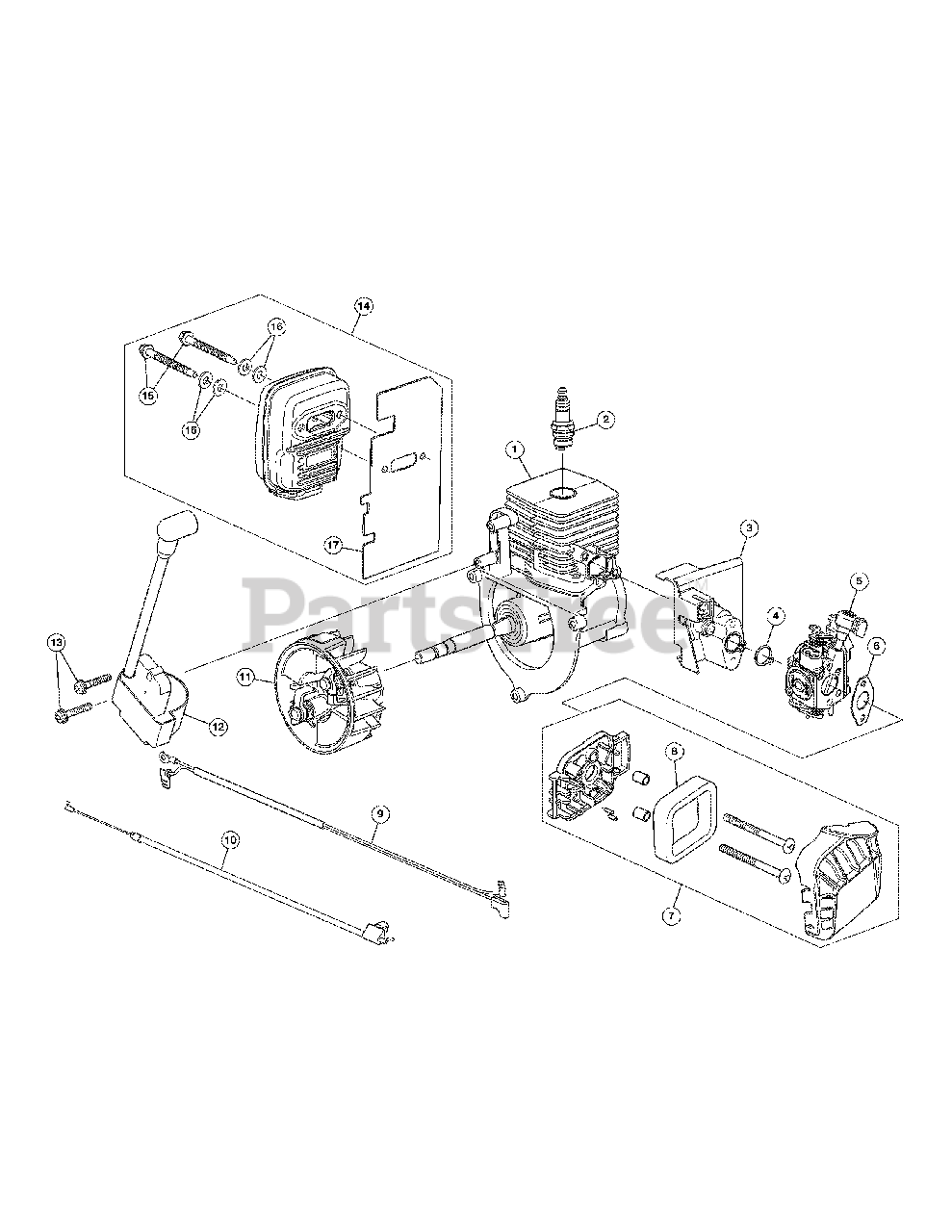

General Assembly Parts Diagram

  • Title

1

MTD 753-08499

Shortblock Assembly

$56.99

$

In Stock, only 4 left!

0

2

MTD 753-06847

Spark Plug

$7.49

$

In Stock, Qty 20+

0

3

MTD 753-06189

Insulator Assembly

$7.99

$

In Stock, only 3 left!

0

4

MTD 753-06185

O-Ring

$3.49

$

In Stock, Qty 20+

0

5

MTD 753-06288

Carburetor

$37.99

$

In Stock, only 2 left!

0

6

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-08507

Air Cleaner Assembly

$8.99

$

In Stock, Qty 6

0

8

MTD 791-181757

Air Cleaner Filter

$3.99

$

In Stock, Qty 20+

0

9

MTD 725-06313

Lead Wire

$3.49

$

In Stock, only 1 left!

0

10

MTD 746-05226

Throttle Cable

$4.99

$

In Stock, only 1 left!

0

11

MTD 753-08490

Flywheel Assembly

$15.99

$

In Stock, only 1 left!

0

12

MTD 753-08489

Module Assembly

$17.99

$

In Stock, Qty 20+

0

13

MTD 710-06301

Screw

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-08488

Muffler Assembly (Incl. 15, 16 and 17)

$29.99

$

In Stock, only 3 left!

0

15

MTD 753-06294

Muffler Screws

$2.99

$

Usually ships in 3-6 days

0

16

MTD 791-182568

Washers

$4.49

$

Usually ships in 3-6 days

0

17

MTD 721-04801

Muffler Gasket

$3.49

$

In Stock, only 1 left!

0
