RM 4214 (41BY425S883) - Remington Chainsaw General Assembly Parts Diagram

Chainsaw

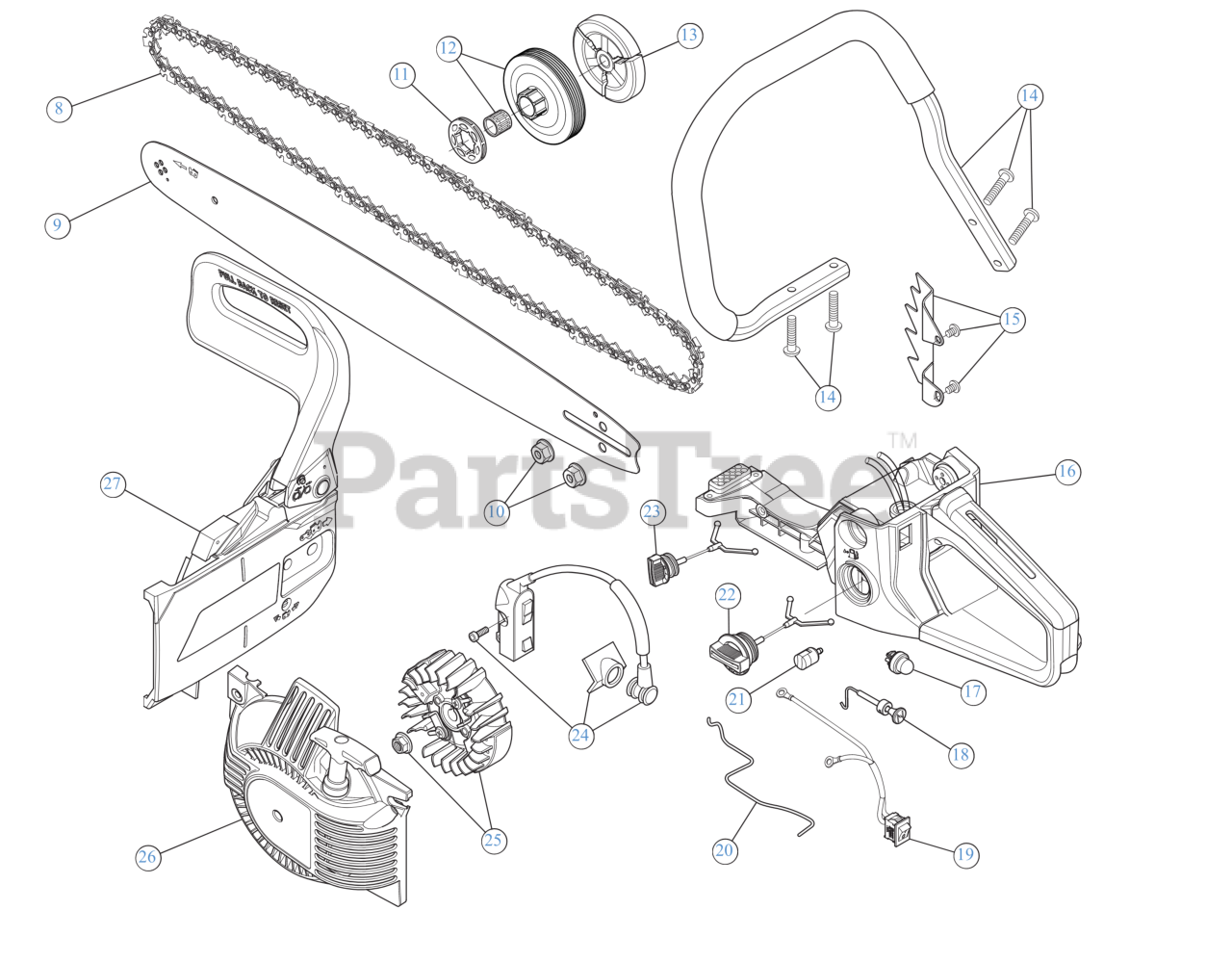

General Assembly Parts Diagram

  • Title
8

MTD 713-05040

CHAIN:14" TRILINK

Note: (for RM4214)

$22.99

$

Usually ships in 3-6 days

0

8

MTD 713-05041

CHAIN: 16" TRILINK

Note: (for RM4216)

$32.99

$

In Stock, only 4 left!

0

8

MTD 713-05042

CHAIN 18" TRILINK

Note: (for RM4218)

$33.99

$

In Stock, Qty 11

0

9

MTD 795-00285

BAR: 14" TRILINK

Note: (for RM4214)

$28.99

$

Usually ships in 3-6 days

0

9

MTD 795-00286

BAR: 16" TRILINK

Note: (for RM4216)

$30.99

$

Usually ships in 3-6 days

0

9

MTD 795-00287

BAR 18" TRILINK

Note: (for RM4218)

$30.99

$

Usually ships in 3-6 days

0

10

MTD 953-08105

BAR NUT M8

$3.49

$

In Stock, Qty 20+

0

11

MTD 753-10164

SPROCKET

$6.99

$

In Stock, Qty 20+

0

12

MTD 953-08220

CLUTCH DRUM ASSEMBLY

$20.99

$

In Stock, Qty 20+

0

13

MTD 953-08145

CLUTCH ASSEMBLY

$15.99

$

In Stock, Qty 20+

0

14

MTD 953-08130

HANDLE ASSEMBLY

Note: (with Screws (4))

$18.99

$

Usually ships in 3-6 days

0

15

MTD 953-08128

SPIKE PLATE W/HDW

Note: (with Screws (2))

$5.49

$

Usually ships in 3-6 days

0

16

MTD 953-08142

FUEL HOUSING ASSEMBLY

$40.99

$

In Stock, only 2 left!

0

17

MTD 953-08127

PRIMER BULB YD2500-18410

$5.99

$

In Stock, Qty 20+

0

18

MTD 953-08221

CHOKE LEVER ASSEMBLY

$3.49

$

In Stock, only 2 left!

0

19

MTD 953-08223

SWITCH ASSEMBLY

$3.49

$

In Stock, Qty 20+

0

20

MTD 953-08132

THROTTLE ROD

$3.49

$

Usually ships in 3-6 days

0

21

MTD 953-08123

FUEL FILTER YD4600-18034

$11.99

$

In Stock, only 1 left!

0

22

MTD 753-08133

FUEL CAP ASSEMBLY

$5.49

$

In Stock, only 3 left!

0

23

MTD 953-08222

OIL CAP ASSEMBLY

$5.49

$

In Stock, only 2 left!

0

24

MTD 953-08138

MODULE

Note: (with Screws (2))

$26.99

$

In Stock, only 1 left!

0

25

MTD 953-08131

FLYWHEEL

$20.99

$

In Stock, only 1 left!

0

26

MTD 753-08310

STARTER HOUSING ASSEMBLY

$25.99

$

In Stock, Qty 20+

0

27

MTD 753-08143

BRAKE ASSEMBLY:CHAINSAW

$28.99

$

In Stock, Qty 15

0
