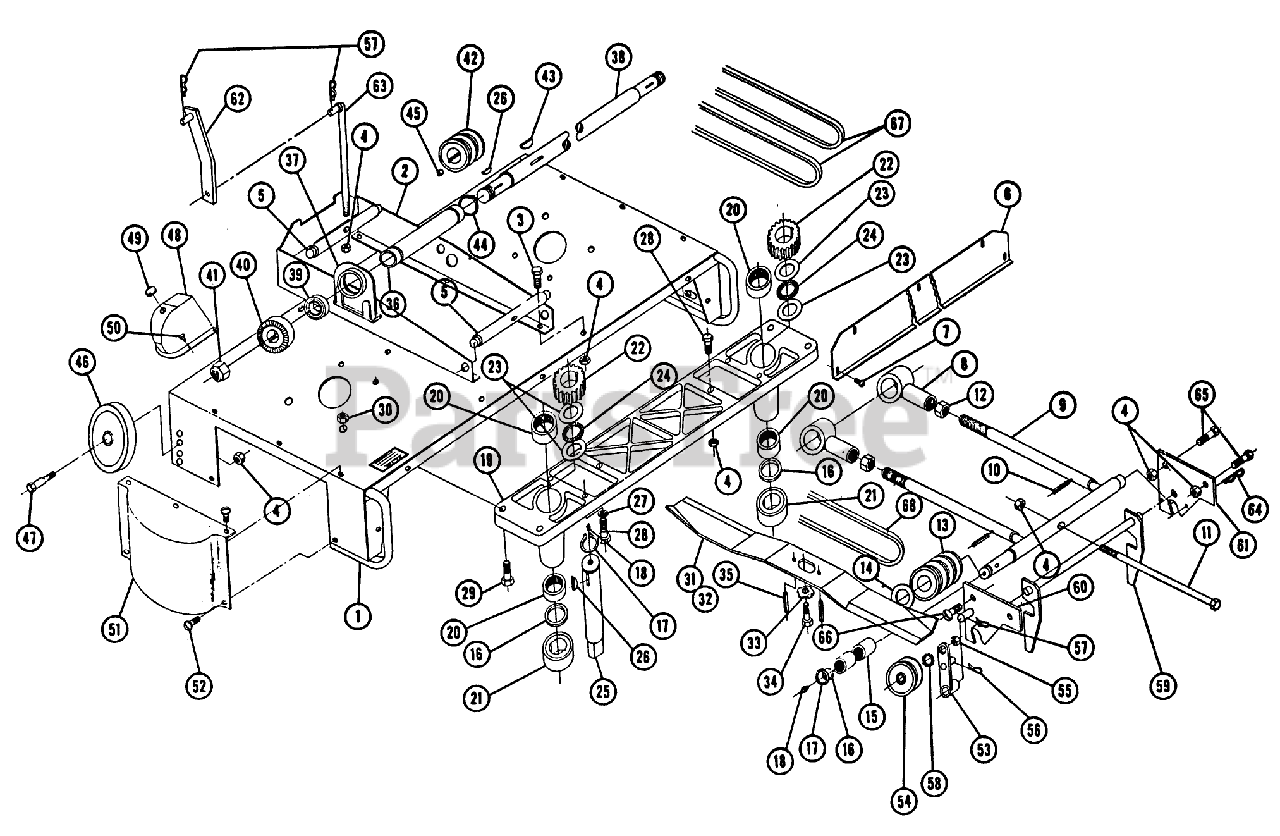

RM-364 - Toro 36" Rear-Discharge Mower Deck (1964) PARTS LIST Parts Diagram

36" Rear-Discharge Mower Deck

PARTS LIST Parts Diagram

  • Title

3

Toro 908032-4

Bolt 3/8-16 x 3/4

$

$

Currently unavailable

4

Toro 915113-6

Nut

$

$

Currently unavailable

7

Toro 1385

H.H.C.S. 1/4-20 x 1/2

$

$

Not available

10

Toro 933160

ROLL PIN 1/8 X 1 1/2

$

$

Not available

11

Toro 1394

Sq. Hd. Machine Bolt 3/8-16 x 8

$

$

Not available

12

Toro 915089-4

Nut-5/8-18

$

$

Currently unavailable

14

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

15

Toro 1540

BEARING-NEEDLE

$40.99

$

Usually ships in 3-6 days

0

16

Toro 1303

Seal
(Superseded to 100441)

$9.99

$

In Stock, only 1 left!

0

17

Toro S-50-75

Snap Ring 3/4 I.D.

$

$

Currently unavailable

18

Toro 1030

Zerk

$

$

Not available

20

Toro 1508

NEEDLE BEARING
(Superseded to 252-6)

$13.99

$

In Stock, Qty 13

0

21

Toro 3716

SPINDLE CUP

$

$

Not available

22

Toro 3131

SPUR GEAR

$

$

Not available

23

Toro 1535

WASHER-THRUST

$10.99

$

In Stock, only 1 left!

0

24

Toro 1534

Bearing Thrust
(Superseded to 99-3836)

$16.99

$

In Stock, only 2 left!

0

26

Toro 937009

Key #5 Woodruff
(Superseded to 937084)

$

$

Not available

27

Toro 920083-4

Lockwasher

$

$

Currently unavailable

28

Toro 908035-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

29

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

30

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

31

Toro 4116

Blade R.H. 18"

$

$

Not available

32

Toro 4117

Blade L.H. 18"

$

$

Not available

33

Toro 1336

WASHER

$

$

Not available

34

Toro 908033-6

Bolt 3/8-16 x 7/8

$

$

Currently unavailable

35

Toro 933211

SPIROL ROLL PIN

$2.49

$

Usually ships in 3-6 days

0

37

Toro 3138

BEARING SUPPORT

$

$

Not available

38

Toro 4112

SHAFT

$

$

Not available

39

Toro 1515

Ball
(Superseded to 101480)

$56.99

$

In Stock, only 3 left!

0

40

Toro 3130

Gear
(Superseded to 7898)

$

$

Not available

41

Toro 915639-4

Nut Hex 5/8-18 Thin

$

$

Currently unavailable

42

Toro 1624

PULLEY

$

$

Not available

43

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, only 1 left!

0

45

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

46

Toro 2877

Wheel
(Superseded to 110506)

$42.99

$

In Stock, only 2 left!

0

47

Toro 4177

Bolt-Shoulder

$

$

Currently unavailable

48

Toro 3141

COVER GEAR

$

$

Not available

49

Toro 3757

PLUG BUTTON

$

$

Not available

50

Toro 1304

SCREW

$0.99

$

Usually ships in 3-6 days

0

52

Toro 1391

SCREW

$

$

Not available

54

Toro 1618

IDLER PULLEY & SHAFT

$

$

Not available

55

Toro 915004-6

Nut, 1/2-20

$

$

Currently unavailable

56

Toro S-52-3

Hairpin

$

$

Currently unavailable

57

Toro S-52-4

Hairpin

$

$

Currently unavailable

58

Toro 920126-4

Lockwasher, 1/2 Ext.

$

$

Currently unavailable

59

Toro 4490

Ass-y Latch & Shaft
(Superseded to 6710)

$

$

Not available

60

Toro 4494

Ass-y Plate Pin R.H.

$

$

Not available

61

Toro 4497

PLATE-MTG BRKT LH R (NS)

$

$

Not available

62

Toro 4495

Ring, Retaining

$

$

Not available

63

Toro 3545

Rod

$

$

Not available

64

Toro S-52-12

Hairpin

$

$

Currently unavailable

65

Toro 908034-4

Bolt 3/8-16 x 1

$

$

Currently unavailable

67

Toro 1578

V-BELTS - MATCHED PR

$32.99

$

In Stock, only 1 left!

0

68

Toro 1577

V Belt-28"
(Superseded to 7430)

$25.99

$

Usually ships in 3-6 days

0

69

Toro 3710

Decal

$

$

Currently unavailable

70

Toro 4148

Decal-Caution
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0
