RM 360 (12AKD3KB783) - Remington Walk-Behind Mower (2016) Control Box Parts Diagram

Walk-Behind Mower

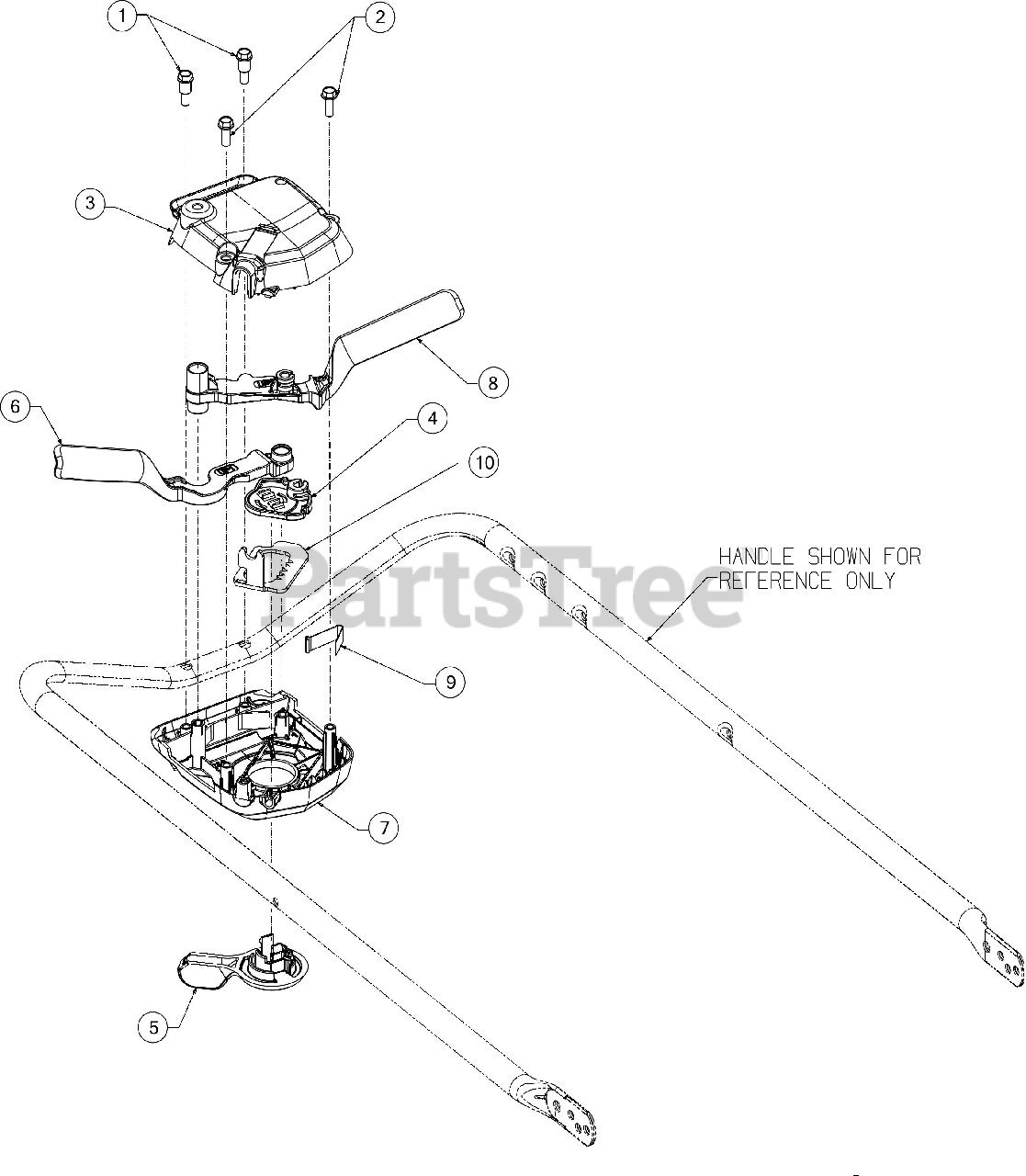

Control Box Parts Diagram

  • Title
1

MTD 710-05204

SHOULDER SCREW 1/4-15 x .970

$3.99

$

In Stock, Qty 18

0

2

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

3

MTD 731-07764A

LOWER CONTROL HOUSING

$18.99

$

Usually ships in 3-6 days

0

4

MTD 731-07804

CABLE SPEED ADJUST ACTUATOR

$6.99

$

Usually ships in 3-6 days

0

5

MTD 731-08153

SPEED SELECT LEVER

$6.49

$

Usually ships in 3-6 days

0

6

MTD 731-08155A

CONTROL LEVER (LH)

$6.49

$

Usually ships in 3-6 days

0

7

MTD 731-08750

UPPER CONTROL HOUSING

$20.99

$

Usually ships in 3-6 days

0

8

MTD 731-08804

CONTROL LEVER (RH)

$8.49

$

Usually ships in 3-6 days

0

9

MTD 732-04937

SHIFT SPRING

$3.99

$

In Stock, only 1 left!

0

10

MTD 787-01851

RACK PLATE

$6.49

$

Usually ships in 3-6 days

0
