RM-303 E - Echo Backpack String Trimmer Backpack Frame, Fuel System Parts Diagram

Backpack String Trimmer

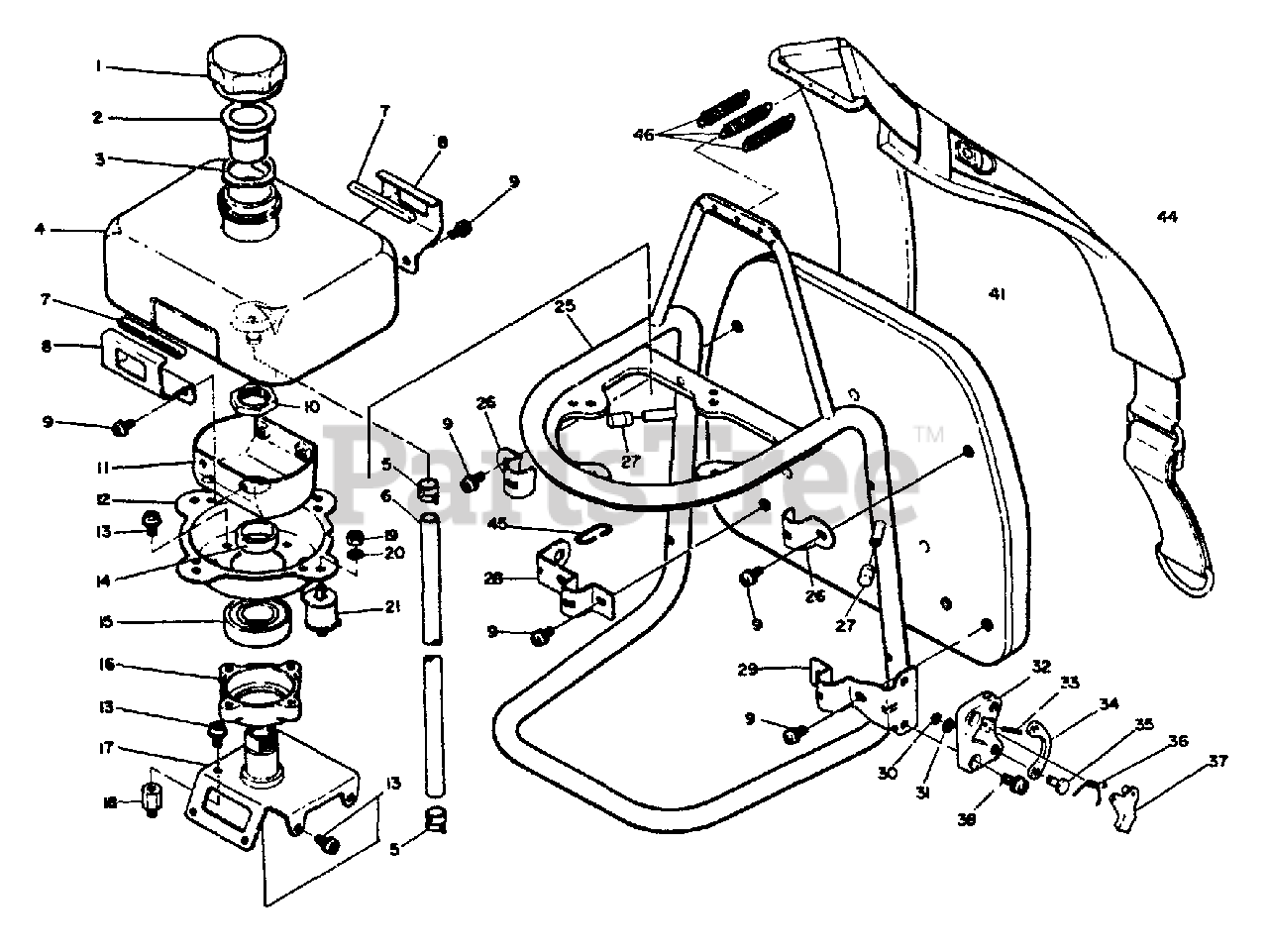

Backpack Frame, Fuel System Parts Diagram

  • Title

Echo 13100407130

CAP ASSY

Note: Consists of items 1 thru 3

$7.99

$

Usually ships in 2-4 days

0

1

Echo 13101701110

CAP
(Superseded to Discontinued)

$

$

Not available

2

Echo 13100305330

VENT, CAP

$2.99

$

In Stock, only 1 left!

0

3

Echo 13101607130

GASKET, CAP
(Superseded to 13101621230)

$3.49

$

In Stock, Qty 5

0

4

Echo 13101007130

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

5

Echo 35701300210

CLAMP
(Superseded to 13201314010)

$3.49

$

Usually ships in 2-4 days

0

6

Echo 13201003220

PIPE - FUEL
(Superseded to Discontinued)

$

$

Not available

7

Echo 13192007130

CUSHION, FUEL TANK

$1.49

$

Usually ships in 2-4 days

0

8

Echo 13191007130

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

9

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

10

Echo 10491607130

NUT
(Superseded to Discontinued)

$

$

Not available

11

Echo 10490707130

ADAPTER, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

12

Echo 10492507130

CASE, FUEL TANK ADAPTER
(Superseded to Discontinued)

$

$

Not available

13

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

14

Echo 10491507130

SPACER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90080406004

BEARING, BALL - 6004
(Superseded to Discontinued)

$

$

Not available

16

Echo 10492607130

CASE, BEARING
(Superseded to Discontinued)

$

$

Not available

17

Echo 10490807130

SHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

18

Echo 10492107130

NUT
(Superseded to Discontinued)

$

$

Not available

19

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

21

Echo 10490507130

CUSHION

$9.99

$

In Stock, only 1 left!

0

25

Echo 30000507132

FRAME, BACKPACK
(Superseded to Discontinued)

$

$

Not available

26

Echo 30022007130

BRACKET, CUSHION
(Superseded to Discontinued)

$

$

Not available

27

Echo 30002307130

STOPPER
(Superseded to Discontinued)

$

$

Not available

28

Echo 30022607130

BRACKET, FAN COVER
(Superseded to Discontinued)

$

$

Not available

29

Echo 30020907130

BRACKET, CUSHION
(Superseded to Discontinued)

$

$

Not available

30

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

31

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

32

Echo 30071007130

BRACKET
(Superseded to Discontinued)

$

$

Not available

33

Echo 90034030020

PIN - SPRING -- 3X20

$0.99

$

In Stock, only 1 left!

0

34

Echo 30071407130

ARM, DETACHING
(Superseded to Discontinued)

$

$

Not available

35

Echo 30071507130

PIN
(Superseded to Discontinued)

$

$

Not available

36

Echo 30071307130

SPRING
(Superseded to Discontinued)

$

$

Not available

37

Echo 30070507130

LEVER, DETACHING
(Superseded to Discontinued)

$

$

Not available

38

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

41

Echo 30010507132

CUSHION
(Superseded to 30010507131)

$

$

Not available

44

Echo 30030022030

BACKPACK STRAP ASSY
(Superseded to 30030021530)

$

$

Not available

45

Echo 30031901610

RING, STRAP
(Superseded to 30031901611)

$0.99

$

In Stock, Qty 5

0

46

Echo 30033807131

SPRING
(Superseded to Discontinued)

$

$

Not available
