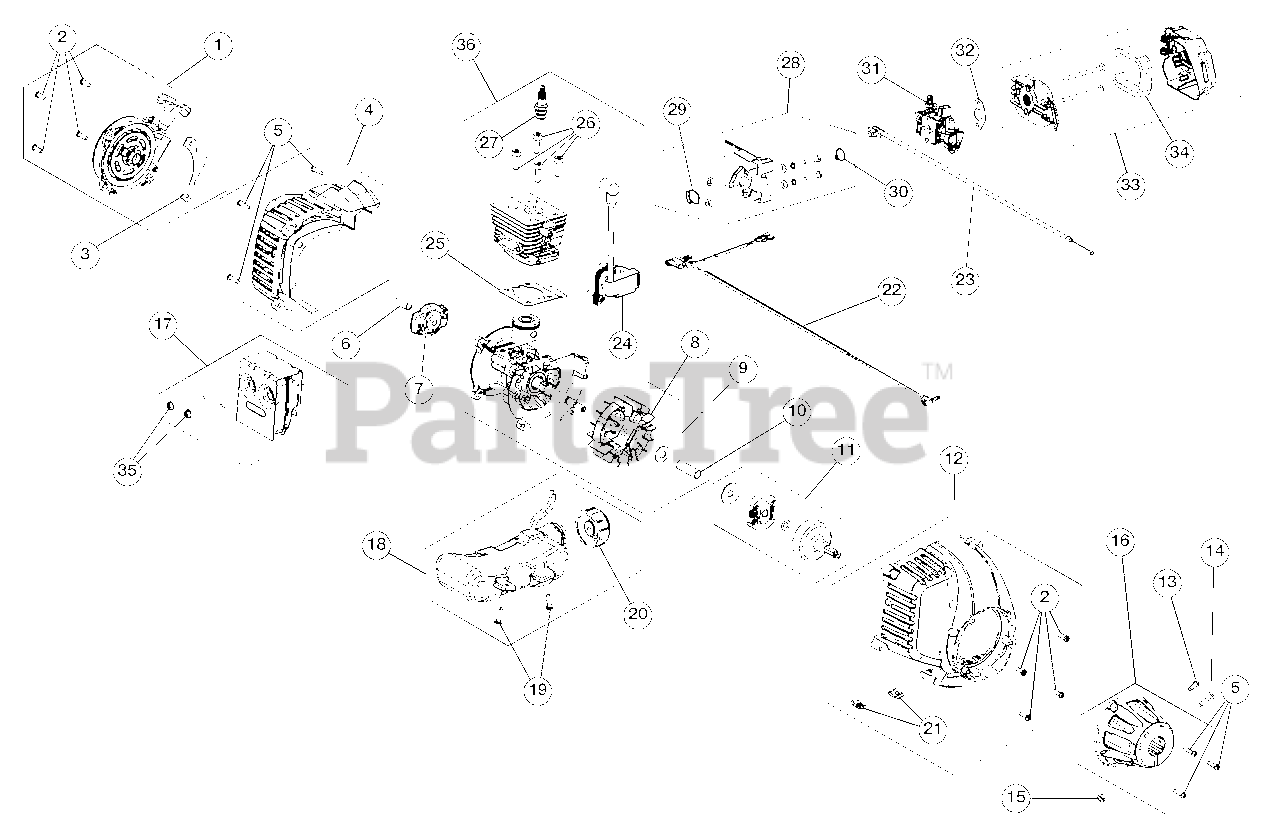

RM 2750 (41ADZ23C983) - Remington String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-06829

Rear Cover Assembly (Incl. 2 & 3)

$20.99

$

In Stock, Qty 20+

0

2

MTD 791-181862

Starter Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

3

MTD 753-06244

Starter Assembly Guard (Incl. 2)

$3.99

$

In Stock, only 1 left!

0

4

MTD 753-06854

Rear Engine Cover Assembly (Incl. 5)

$7.49

$

Usually ships in 3-6 days

0

5

MTD 791-181345

Cover Screw

$4.49

$

In Stock, only 4 left!

0

6

MTD 753-06104

Adapter

$4.49

$

In Stock, Qty 7

0

7

MTD 753-06091

Pawl Assembly

$9.49

$

In Stock, Qty 5

0

8

MTD 753-06246

Flywheel Assembly

$21.99

$

In Stock, only 1 left!

0

9

MTD 753-06247

Washer

$3.49

$

In Stock, only 1 left!

0

10

MTD 753-06820

Spacer

$3.49

$

Usually ships in 3-6 days

0

11

MTD 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 10

0

12

MTD 753-06855

Front Engine Cover Assembly (Incl. 2 & 21)

$

$

Not available

13

MTD 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 5

0

14

MTD 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

Usually ships in 3-6 days

0

15

MTD 712-0161

Clamp Nut

$4.49

$

In Stock, only 2 left!

0

16

MTD 753-06822

Clutch Cover Assembly (Incl. 5)

$7.99

$

Usually ships in 3-6 days

0

17

MTD 753-06418

Muffler Assembly (Incl. 35)
(Superseded to 753-08745)

$26.99

$

Usually ships in 3-6 days

0

18

MTD 753-06856

Fuel Tank Assembly (Incl. 19 & 20)
(Superseded to 753-06250)

$21.99

$

In Stock, Qty 12

0

19

MTD 791-181930

Tank Screw

$6.99

$

In Stock, only 1 left!

0

20

MTD 753-06857

Fuel Cap

$7.99

$

In Stock, Qty 5

0

21

MTD 791-182366

U-Shaped Nut

$5.99

$

In Stock, only 1 left!

0

22

MTD 753-05877

Lead Wires

$9.99

$

Usually ships in 3-6 days

0

23

MTD 753-06825

Throttle Cable

$6.49

$

Usually ships in 3-6 days

0

24

MTD 753-06871

Module Assembly

$40.99

$

Usually ships in 3-6 days

0

25

MTD 753-06827

Cylinder Gasket

$3.49

$

In Stock, only 1 left!

0

26

MTD 710-04715

Cylinder Bolt

$6.99

$

Usually ships in 3-6 days

0

27

MTD 753-06193

Spark Plug
(Superseded to 753-06847)

$7.49

$

In Stock, Qty 20+

0

28

MTD 753-06189

Insulator Assembly (Incl. 29 & 30)

$7.99

$

In Stock, only 1 left!

0

29

MTD 753-06184

Insulator O-Ring

$3.49

$

In Stock, only 1 left!

0

30

MTD 753-06185

Carburetor O-Ring

$3.49

$

In Stock, Qty 20+

0

31

MTD 753-06190

Carburetor

$35.99

$

In Stock, Qty 20+

0

32

MTD 753-06253

Carburetor Gasket

$3.49

$

In Stock, Qty 20+

0

33

MTD 753-06913

Air Cleaner Assembly (Incl. 34)

$11.99

$

In Stock, Qty 5

0

34

MTD 753-06954

Air Cleaner Filter

$2.99

$

In Stock, Qty 20+

0

35

MTD 753-06294

Muffler Screws

$2.99

$

Usually ships in 3-6 days

0

36

MTD 753-06858

Short Block Assembly

Note: (Incl. Crankcase,Cylinder, Piston, 8-10 & 24-27)

$109.99

$

Usually ships in 3-6 days

0
