RM 27 (24BG57M1783) - Remington Log Splitter (2016) Cylinder Parts Diagram

Log Splitter

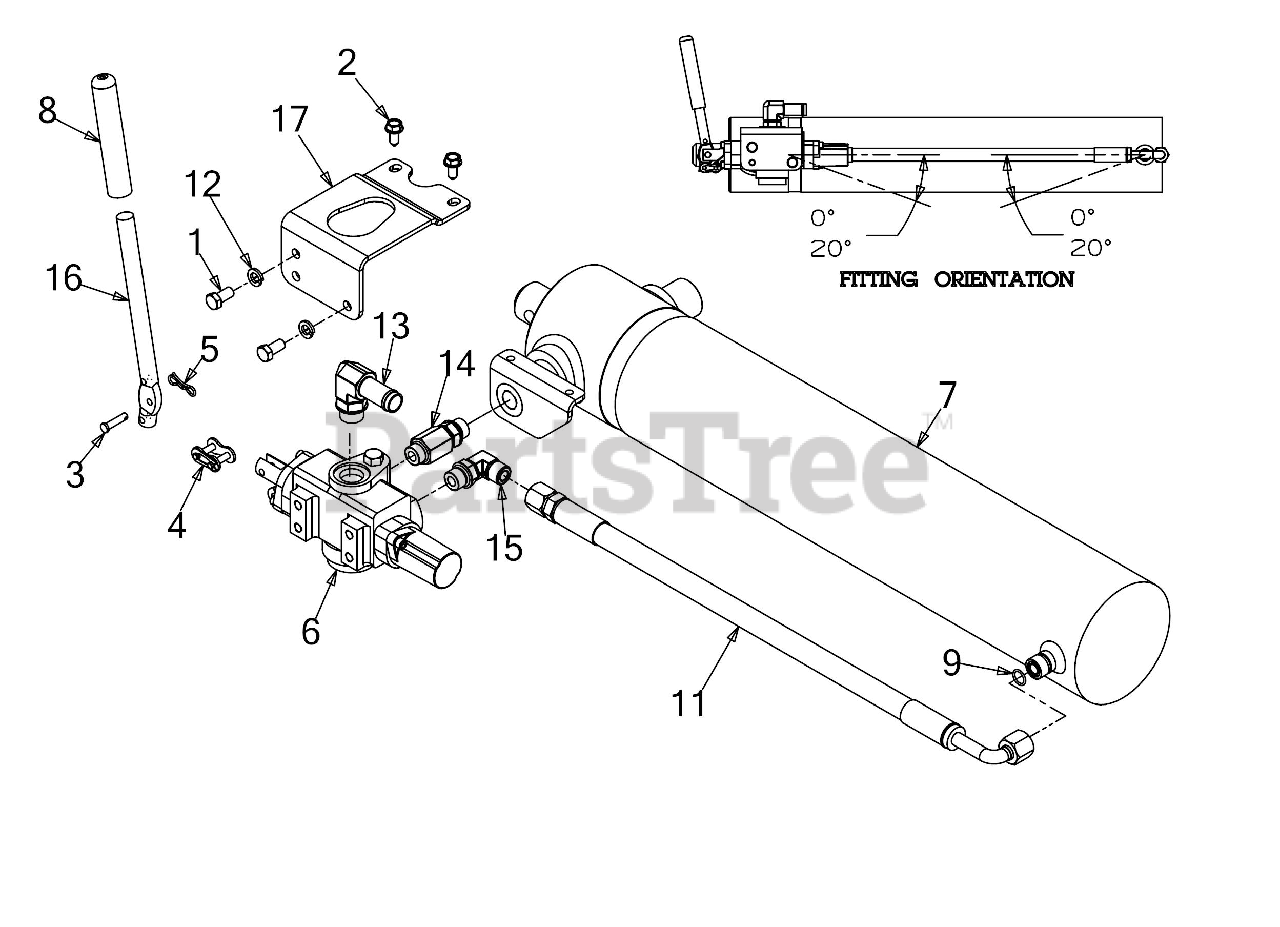

Cylinder Parts Diagram

  • Title

1

MTD 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 711-04585

CLEVIS PIN .25 x 1.00

$6.99

$

In Stock, Qty 13

0

4

MTD 913-04036

VALVE HANDLE LINK

$21.99

$

In Stock, only 2 left!

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 718-04706P

LOGSPLITTER VALVE

$366.99

$

Usually ships in 3-6 days

0

7

MTD 918-04713

HYDRAULIC CYLINDER

$817.99

$

Usually ships in 3-6 days

0

8

MTD 720-04088

GRIP

$10.99

$

Usually ships in 3-6 days

0

9

MTD 721-04411

O-RING

$3.99

$

Usually ships in 3-6 days

0

11

MTD 727-04362

HYDRAULIC HOSE

$91.99

$

Usually ships in 3-6 days

0

12

MTD 936-0169

LOCK WASHER 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

13

MTD 737-04307

HYDRAULIC FITTING 7/8 ORB X .75 BEAD

$24.99

$

Usually ships in 3-6 days

0

14

MTD 737-04309

HYDRAULIC FITTING 3/4 ORB

$20.99

$

In Stock, only 4 left!

0

15

MTD 737-04320

HYDRAULIC FITTING 3/4ORB X 13/16ORFS

$20.99

$

Usually ships in 3-6 days

0

16

MTD 747-04539A

CONTROL VALVE HANDLE

$45.99

$

In Stock, only 1 left!

0

17

MTD 781-04418-0637

VALVE BRACKET

$17.99

$

Usually ships in 3-6 days

0
