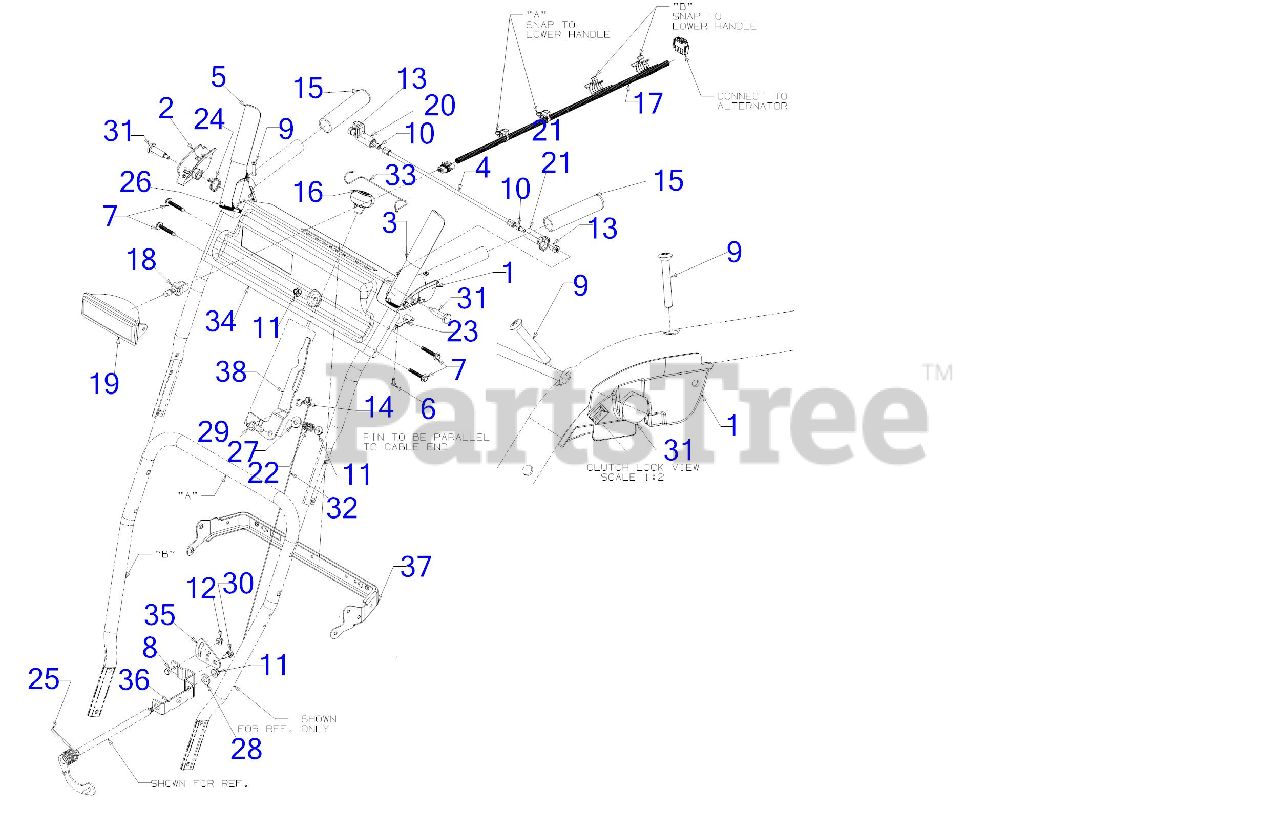

RM 2660 (31AM6BFF783) - Remington Snow Thrower (2017) Panel Parts Diagram

Snow Thrower

Panel Parts Diagram

  • Title
1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 7

0

1

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

Usually ships in 3-6 days

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

MTD 684-04105C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

4

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, only 2 left!

0

5

MTD 684-05226

HANDLE ASSEMBLY (RH)
(Superseded to 684-05226A)

$29.99

$

Usually ships in 3-6 days

0

6

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

8

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

10

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

14

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

MTD 720-05091

GRIP-1.0 ID x 5.0 LG

$7.99

$

Usually ships in 3-6 days

0

16

MTD 720-05092

SHIFT KNOB

$6.49

$

Usually ships in 3-6 days

0

17

MTD 725-06926

HALOGEN HEADLGHT HARNESS
(Superseded to 925-06926)

$32.99

$

Usually ships in 3-6 days

0

18

MTD 925-1658

HALOGEN BULB

$60.99

$

In Stock, only 4 left!

0

19

MTD 925-1672

LAMP HOUSING

$89.99

$

Usually ships in 3-6 days

0

20

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, Qty 9

0

21

MTD 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

22

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

23

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

24

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 10

0

25

MTD 732-04311A

TORSION SPRING

$10.99

$

In Stock, only 2 left!

0

26

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

27

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

28

MTD 936-3015

FLAT WASHER

$4.49

$

In Stock, Qty 19

0

29

MTD 738-04118

SHOULDER BOLT

$5.49

$

Usually ships in 3-6 days

0

30

MTD 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 5

0

31

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

MTD 946-04397A

SPEED SELECTOR CABLE (STEEL)

$20.99

$

In Stock, Qty 7

0

33

MTD 747-1136

RETAINER

$11.99

$

Usually ships in 3-6 days

0

34

MTD 790-00209A

HANDLE PANEL:STEEL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00209A-0637

PANEL-STEEL HNDL - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

MTD 790-00209A-0638

PANEL-STEEL HNDL - MTD/TROY-BILT RED (0638)

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00209A-0667

PANEL-STEEL HNDL - MIDNIGHT BLUE (0667)

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00209A-0684

PANEL-STEEL HNDL - ZINC YELLOW (0684)

$55.99

$

Usually ships in 3-6 days

0

MTD 790-00209A-0691

PANEL-STEEL HNDL - BLACK JACK (0691)

$63.99

$

Usually ships in 3-6 days

0

$55.99

$

Usually ships in 3-6 days

0

35

MTD 790-00217A-0637

PIVOT BRACKET
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

36

MTD 790-00218A-0637

SHIFT SPEED BRACKET
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

37

MTD 790-00248E

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00248E-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

38

MTD 790-00313A

SPEED SHIFT LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00313A-0637

LVR-SPEED SHIFT - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0
