RM 2520 EC (41ADZ24C983) - Remington String Trimmer General Assembly Parts Diagram

String Trimmer

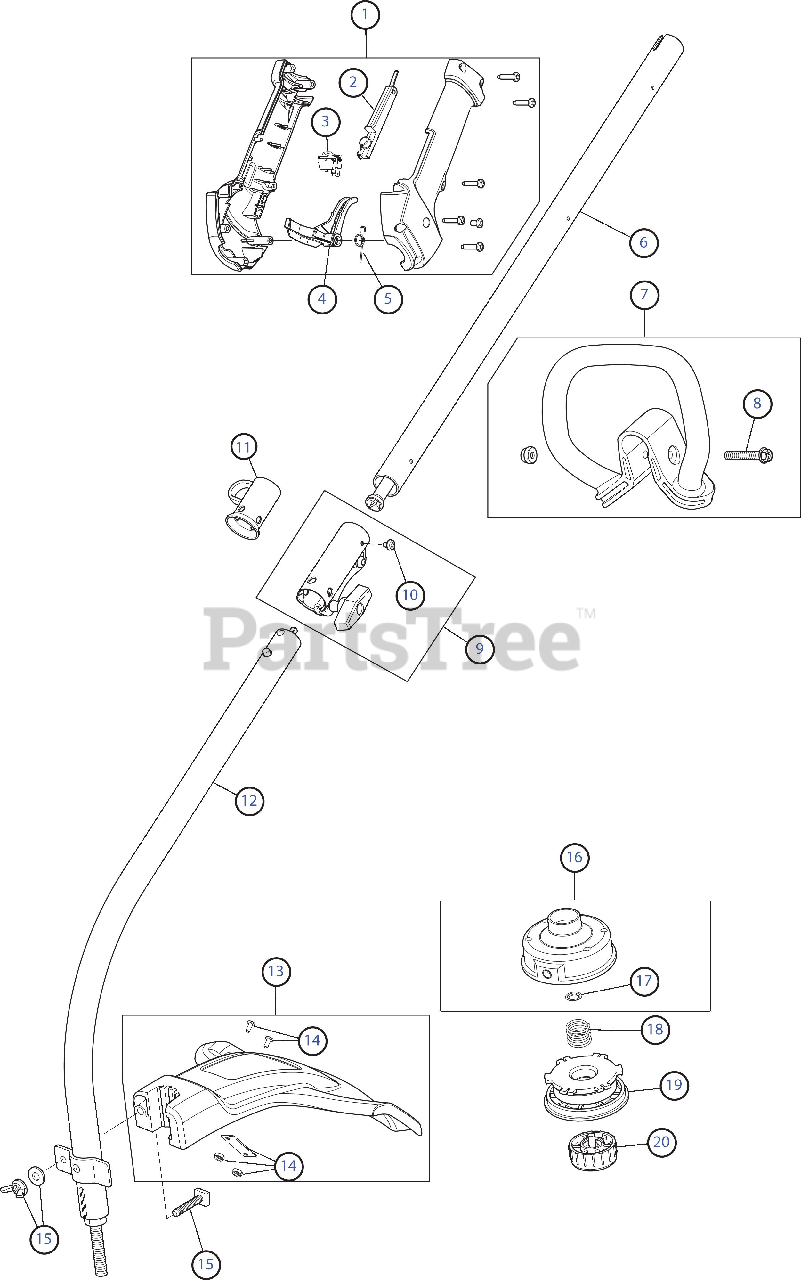

General Assembly Parts Diagram

  • Title

1

MTD 753-08344

Throttle Housing Assembly

Note: (Incl. 2 - 5)

$30.99

$

In Stock, only 1 left!

0

2

MTD 731-08433C-10

Throttle Trigger Lock-Out

$3.49

$

In Stock, Qty 14

0

3

MTD 791-182405

Throttle Switch Assembly

$10.99

$

In Stock, Qty 12

0

4

MTD 731-04970B-10

Throttle Trigger

$9.49

$

In Stock, Qty 20+

0

5

MTD 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

6

MTD 753-06880

Upper Shaft Housing Assembly

$19.99

$

In Stock, only 1 left!

0

7

MTD 753-08042

D-Handle

Note: (Incl. 8)

$4.99

$

In Stock, Qty 7

0

8

MTD 753-06040

D-Handle Hardware Assembly

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-06944

Split Boom Coupler

Note: (Incl. 10)

$7.49

$

Usually ships in 3-6 days

0

10

MTD 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, Qty 6

0

11

MTD 731-08926

Hanger

$2.99

$

In Stock, Qty 20+

0

12

MTD 753-04508

Lower Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

13

MTD 753-04283

Shield Assembly

Note: (Incl. 14)

$50.99

$

In Stock, only 1 left!

0

14

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

MTD 753-04282

Shield Mounting Hardware

$25.99

$

Usually ships in 3-6 days

0

16

MTD 753-04284

Outer Spool Assembly

Note: (Incl. 17)

$28.99

$

In Stock, only 1 left!

0

17

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

18

MTD 791-610317B

Spring

$10.99

$

In Stock, Qty 7

0

19

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

20

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 19

0

MTD 841-031094S

Reel & Line Assembly

$13.99

$

Usually ships in 3-6 days

0
