RM 2520 (41BDZ20C983) - Remington String Trimmer General Assembly Parts Diagram

String Trimmer

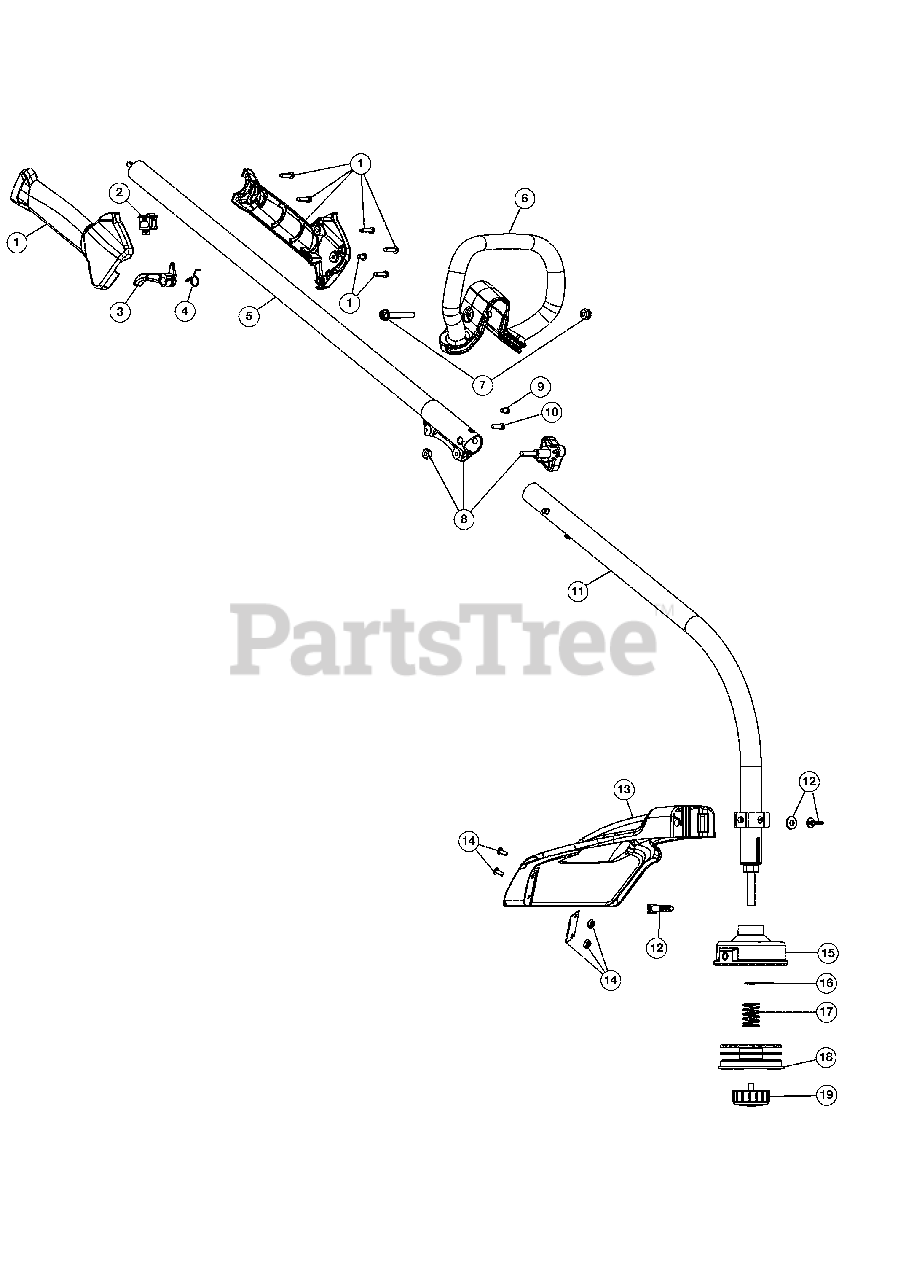

General Assembly Parts Diagram

  • Title

1

MTD 753-04234

Throttle Housing Assembly (Incl. 2-4)

$21.99

$

In Stock, Qty 7

0

2

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

3

MTD 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

4

MTD 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

MTD 753-04344

Upper Shaft Housing Assembly

$85.99

$

In Stock, only 3 left!

0

6

MTD 753-08042

D-Handle (Incl. 7)

$4.99

$

In Stock, Qty 7

0

7

MTD 753-06040

D-Handle Bolt

$6.99

$

In Stock, only 1 left!

0

8

MTD 753-06944

Split Boom Coupler (Incl. 9-10)

$7.49

$

Usually ships in 3-6 days

0

9

MTD 791-182057

Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

10

MTD 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

11

MTD 753-04508

Lower Shaft Housing Assembly

$80.99

$

In Stock, Qty 6

0

12

MTD 753-04282

Shield Mounting Hardware

$25.99

$

In Stock, only 1 left!

0

13

MTD 753-04283

Shield Assembly (Incl. 14)

$50.99

$

In Stock, only 1 left!

0

14

MTD 791-180553

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

15

MTD 753-04284

Outer Spool Assembly (Incl. 16)

$28.99

$

In Stock, only 2 left!

0

16

MTD 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

MTD 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

MTD 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

MTD 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

MTD 953-1156

Reel & Line Assembly

Note: (Not shown) (Optional)

$31.99

$

In Stock, only 1 left!

0

MTD 753-05778

Fixed Line Insert

Note: (Not shown) (Optional)

$7.99

$

Usually ships in 3-6 days

0

MTD 791-180120

0.095 Replacement Line
(Superseded to 953-1156)

Note: (Not shown) (Optional)

$31.99

$

In Stock, only 1 left!

0
