RM 25 S (41AD25SA983) - Remington String Trimmer General Assembly Parts Diagram

String Trimmer

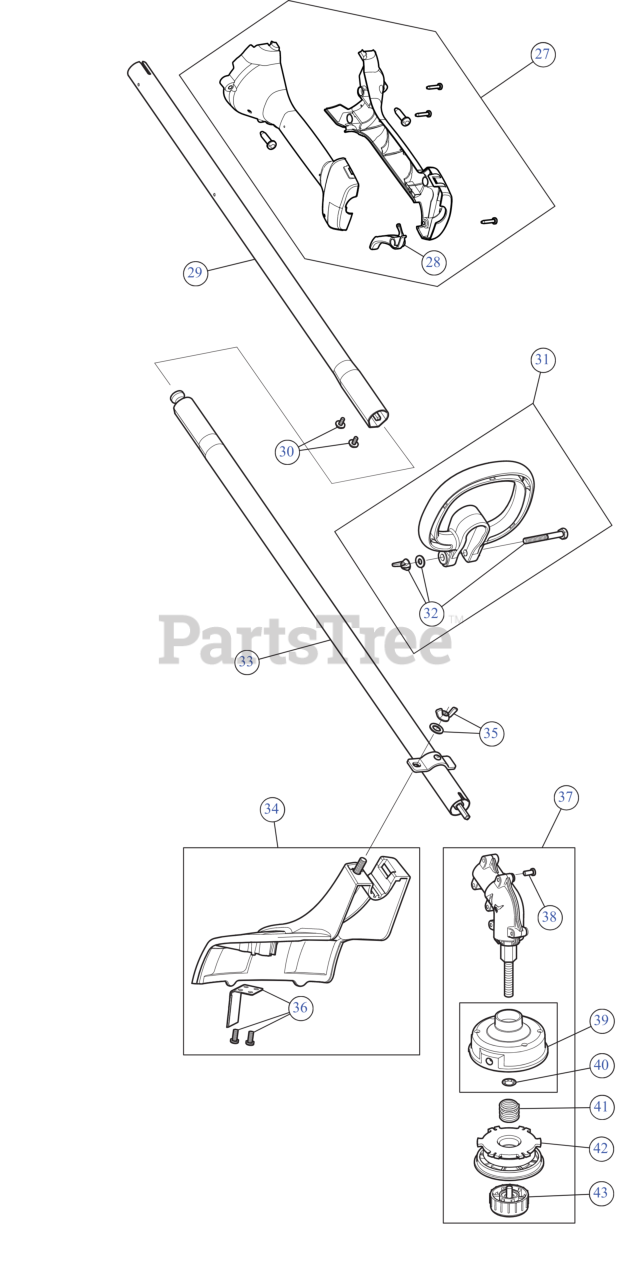

General Assembly Parts Diagram

  • Title

27

MTD 753-09146

THROTTLE GRIP ASSEMBLY

Note: (Incl. 28)

$8.49

$

In Stock, only 4 left!

0

28

MTD 731-13693

THROTTLE TRIGGER

$2.99

$

In Stock, Qty 20+

0

29

MTD 753-09147

UPPER BOOM ASSEMBLY

Note: (Incl. 30)

$7.49

$

In Stock, only 4 left!

0

30

MTD 710-06562

SCREW 8-32X3/8

$2.99

$

In Stock, only 3 left!

0

31

MTD 753-06198

HANDLE

Note: (Incl. 32)

$4.99

$

Usually ships in 3-6 days

0

32

MTD 753-06199

HANDLE HWD

$2.49

$

Usually ships in 3-6 days

0

33

MTD 753-08686

LOWER BOOM ASSEMBLY

$22.99

$

Usually ships in 3-6 days

0

34

MTD 753-08360

GUARD & BLADE ASSEMBLY

Note: (Incl. 35 & 36)

$15.99

$

In Stock, only 4 left!

0

35

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

Usually ships in 3-6 days

0

36

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

37

MTD 753-06571

GEARBOX ASSEMBLY

Note: (Incl. 38 - 43)

$45.99

$

Usually ships in 3-6 days

0

38

MTD 7039

SCREW 8-32X.437

$4.99

$

In Stock, only 2 left!

0

39

MTD 753-04284

REEL:OTR W/RET

Note: (Incl. 40)

$28.99

$

In Stock, only 1 left!

0

40

MTD 791-610660

RETAINER .625 OD 2

$4.99

$

In Stock, Qty 20+

0

41

MTD 791-610317B

SPRING-SPOOL

$10.99

$

In Stock, Qty 7

0

42

MTD 753-1155

REEL-INNER SPOOL

$22.99

$

In Stock, Qty 20+

0

43

MTD 791-153066B

BUMP HEAD KNOB ASSEMBLY

$13.99

$

In Stock, Qty 19

0

MTD 953-1156

REEL SPOOL ASSEMBLY

$31.99

$

In Stock, only 1 left!

0
