RM 25 PS (41AD25PA983) - Remington Pole Saw General Assembly Parts Diagram

Pole Saw

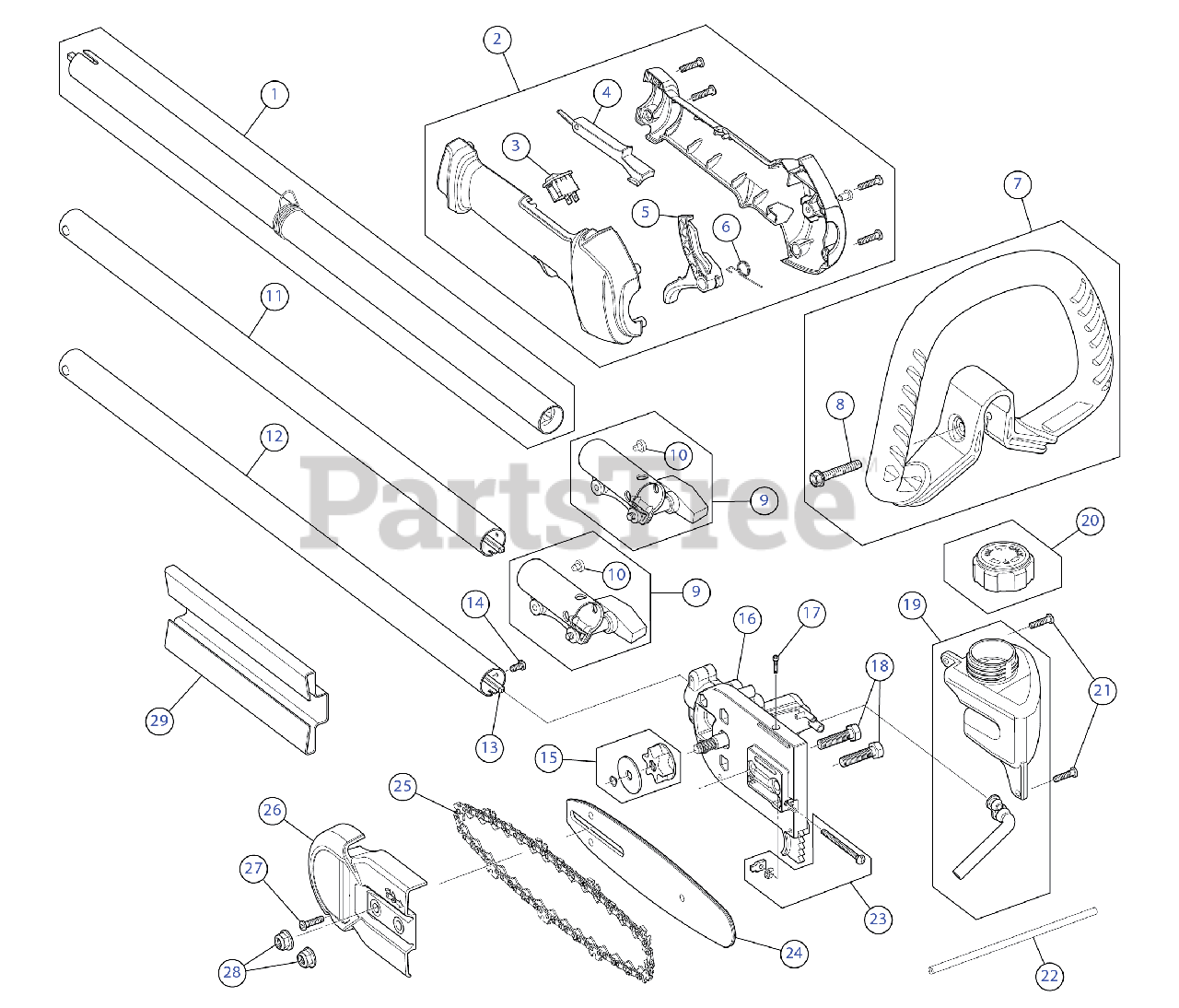

General Assembly Parts Diagram

  • Title
1

MTD 753-06880

BOOM ASSEMBLY UPR

$19.99

$

In Stock, only 1 left!

0

2

MTD 753-08344

THROTTLE GRIP ASSEMBLY

Note: (Incl. 3 - 6)

$30.99

$

Usually ships in 3-6 days

0

3

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

4

MTD 731-08433C-10

LEVER LOCK OUT

$3.49

$

In Stock, Qty 14

0

5

MTD 731-04970B-10

THROTTLE TRIGGER

$9.49

$

In Stock, Qty 20+

0

6

MTD 753-05007

SPRING TRIG

$5.49

$

In Stock, only 3 left!

0

7

MTD 753-06039

HANDLE ASSEMBLY

Note: (Incl. 9)

$11.99

$

Usually ships in 3-6 days

0

8

MTD 753-06040

BOLT 1/4-20X1 1/2

$6.99

$

In Stock, only 1 left!

0

9

MTD 753-06944

SPLIT BOOM CPLR

Note: (Incl. 10)

$7.49

$

Usually ships in 3-6 days

0

10

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, only 3 left!

0

11

MTD 753-04352

HOUSING ASSEMBLY UPPER W/FLEXSHAFT

$80.99

$

In Stock, Qty 5

0

12

MTD 753-05724

BOOM ASSEMBLY 24"

Note: (Incl. 13)

$40.99

$

In Stock, only 2 left!

0

13

MTD 791-181852

LOWERIBLE DRIVE SHAFT

$59.99

$

In Stock, Qty 11

0

14

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

15

MTD 753-05595

SPROCKET ASSEMBLY

$11.99

$

In Stock, Qty 20+

0

16

MTD 753-05599

GEAR BOX ASSEMBLY

Note: (Incl. 15 & 17)

$106.99

$

In Stock, only 2 left!

0

17

MTD 710-04696

SCREW 4X40X.50

$3.99

$

In Stock, only 1 left!

0

18

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

19

MTD 753-05586

OIL TANK ASSEMBLY

$30.99

$

In Stock, Qty 13

0

20

MTD 753-05587

FUEL CAP ASSEMBLY

$8.99

$

In Stock, Qty 10

0

21

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

22

MTD 753-05588

OIL LINE

$9.99

$

In Stock, only 3 left!

0

23

MTD 753-05597

CHAIN TENSION HDW

$10.99

$

In Stock, only 2 left!

0

24

MTD 753-05594

BAR 8" SPROCKET NOSE

$54.99

$

In Stock, only 2 left!

0

25

MTD 753-05592

CHAIN 8" 34 LINK .043 GAUGE

$38.99

$

In Stock, Qty 13

0

26

MTD 753-05765

CHAIN GUARD

$11.99

$

Usually ships in 3-6 days

0

27

MTD 791-181345

SCREW, #8-16X.750 PH

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

MTD 731-05906

CHAIN COVER

$6.49

$

Usually ships in 3-6 days

0

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0
