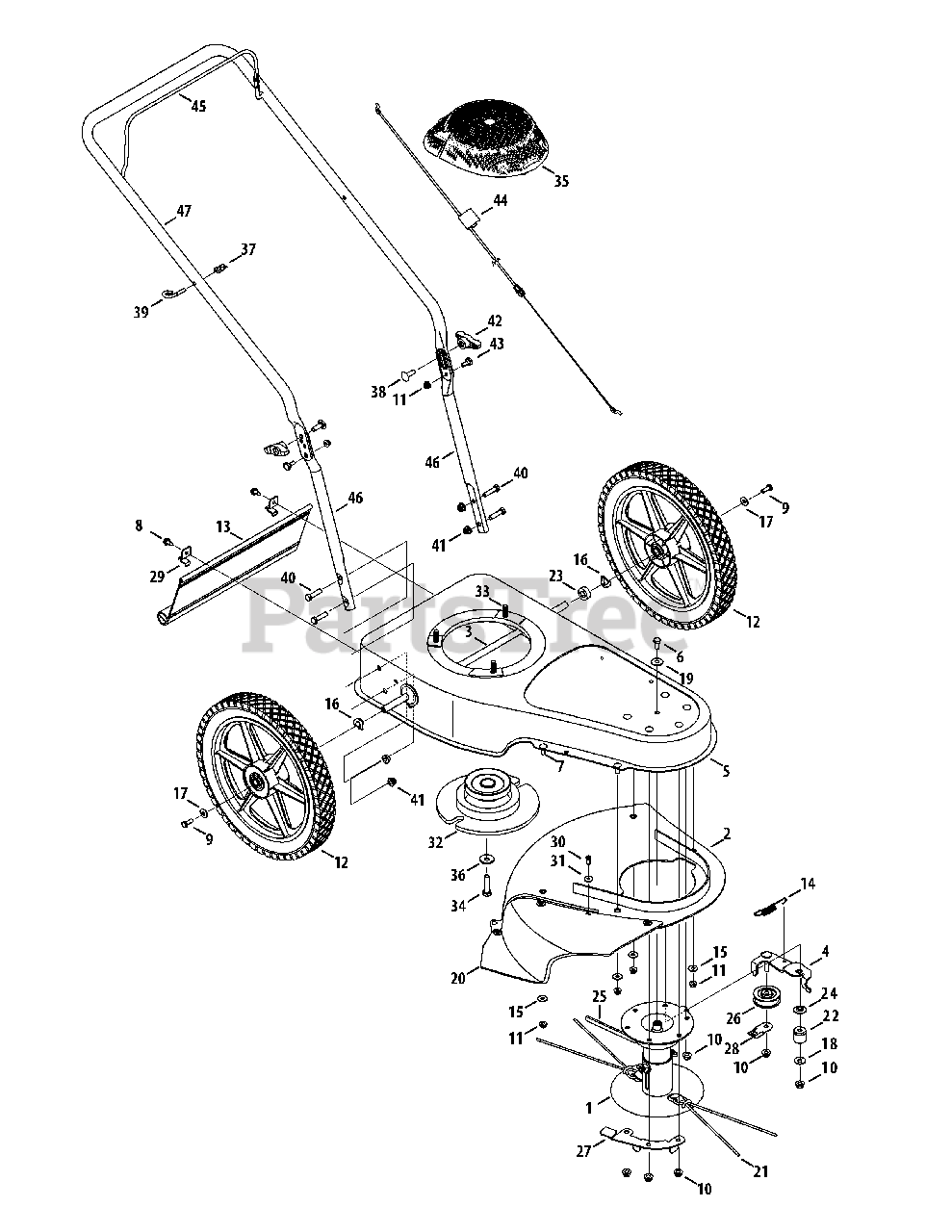

RM 2200 (25A-26J7783) - Remington Walk-Behind Trimmer (2014) General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

MTD 918-0558A

Spindle Assembly

$

$

Not available

2

MTD 631-0096

Deflector Assembly, Trimmer

Note: (incl. Deflector Flap and Hardware)

$105.99

$

Usually ships in 3-6 days

0

3

MTD 681-0159

Axle Assembly, Trimmer
(Superseded to 681P0159A)

$58.99

$

Usually ships in 3-6 days

0

4

MTD 981-0181A

Bracket Assembly, Idler Trimmer
(Superseded to 981-1008A)

$48.99

$

In Stock, Qty 6

0

5

MTD 781-05007-0691

Deck Assembly, Trimmer
(Superseded to 781-05007A)

$152.99

$

Usually ships in 3-6 days

0

6

MTD 710-0237

Hex Screw, 5/16-24, .625, Gr5, Std

$4.49

$

In Stock, only 1 left!

0

7

MTD 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1652

Screw, Self-tapping, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3015

Hex Screw, 1/4-20, .75, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

12

MTD 734-04030

Wheel, 14 x 1.75, Gray

$76.99

$

In Stock, only 1 left!

0

13

MTD 731-2329

Trailshield, 5.85 x 14.50

$26.99

$

In Stock, only 1 left!

0

14

MTD 732-1022

Spring, Extension, .50 OD x 3.375

$4.99

$

In Stock, only 1 left!

0

15

MTD 736-0173

Washer, Flat, .280 x .740 x .063

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0182

Washer, Spring, .500 x 1.00 x .022

$4.49

$

In Stock, Qty 7

0

17

MTD 736-0270

Washer, Belle, .265 x .750 x .060

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-0371

Washer, Flat, .343 x .880 x .062

$4.49

$

In Stock, only 3 left!

0

19

MTD 936-0425

Washer, Belle, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

20

MTD 731-2315

Flap, Deflector, String Trimmer

$19.99

$

In Stock, only 2 left!

0

21

MTD 490-040-M035

Line, Trimmer, .155, 10-pack

$13.99

$

In Stock, Qty 8

0

22

MTD 948-0278

P/M Spacer

$11.99

$

In Stock, Qty 5

0

23

MTD 750-1240

Spacer, .51 ID x 1.00 OD x .38

$3.99

$

In Stock, Qty 12

0

24

MTD 750-1275

Spacer, Idler, Trimmer

$6.49

$

In Stock, Qty 7

0

25

MTD 954-0625A

V-Belt

$28.99

$

Usually ships in 3-6 days

0

26

MTD 756-1198

Pulley, Idler, Trimmer

$53.99

$

In Stock, only 2 left!

0

27

MTD 781-1020

Keeper Bracket, Front

Variations

MTD 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$28.99

$

In Stock, only 3 left!

0

$23.99

$

Usually ships in 3-6 days

0

28

MTD 781-1028

Keeper Bracket, Idler

Variations

MTD 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, Qty 10

0

$7.99

$

Usually ships in 3-6 days

0

29

MTD 782-9065

Hinge Clip, Trailshield

$4.49

$

In Stock, only 3 left!

0

30

MTD 710-1823

Screw, HL, #12-16, .625, Panphi

$3.99

$

Usually ships in 3-6 days

0

31

MTD 936-0400

Washer, Flat, .194 x .62 x .063
(Superseded to 736-0400)

$

$

Not available

32

MTD 656-05000

Pulley/Flywheel

$106.99

$

Usually ships in 3-6 days

0

33

MTD 710-0654A

Sems Screw, 3/8-16, 1.0,

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-06074

Hex Screw, 3/8-24, 1.25, Gr8

$4.49

$

Usually ships in 3-6 days

0

35

MTD 731-09688

Cover, Shroud

$14.99

$

In Stock, Qty 5

0

36

MTD 936-0452

Washer, Belle, .396 x 1.14 x .095
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

37

MTD 720-0279

Knob, Handle

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-04998

Screw, Carriage, 5/16-18, 1.00, Gr5

$5.99

$

In Stock, only 2 left!

0

39

MTD 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

40

MTD 710-3005

Hex Screw, 3/8-16, 1.25, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

41

MTD 712-04065

Nut,, Flange Lock, 3/8-16, GRF

$3.99

$

In Stock, Qty 20+

0

42

MTD 720-04122

Knob, Wing, 5/16-18, Black

$6.99

$

In Stock, Qty 20+

0

43

MTD 738-04419A

Shoulder Screw, .375 x .148 x1/4-20

$4.49

$

In Stock, Qty 20+

0

44

MTD 946-05141

Control Cable, 48"

$22.99

$

In Stock, Qty 20+

0

45

MTD 747-06246

Bail, Black

Variations

MTD 747-06246-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, Qty 20+

0

$13.99

$

In Stock, Qty 20+

0

46

MTD 749-05102-0637

Handle, Lower

$11.99

$

In Stock, Qty 7

0

47

MTD 749-05103-0637

Handle, Upper

$41.99

$

Usually ships in 3-6 days

0

MTD 723-0400

Safety Glasses

Note: (not shown)

$26.99

$

Usually ships in 3-6 days

0
