RM 2200 (25A-26J7783) - Remington Walk-Behind Trimmer (2014) 1X65RU Cylinder Head Parts Diagram

Walk-Behind Trimmer

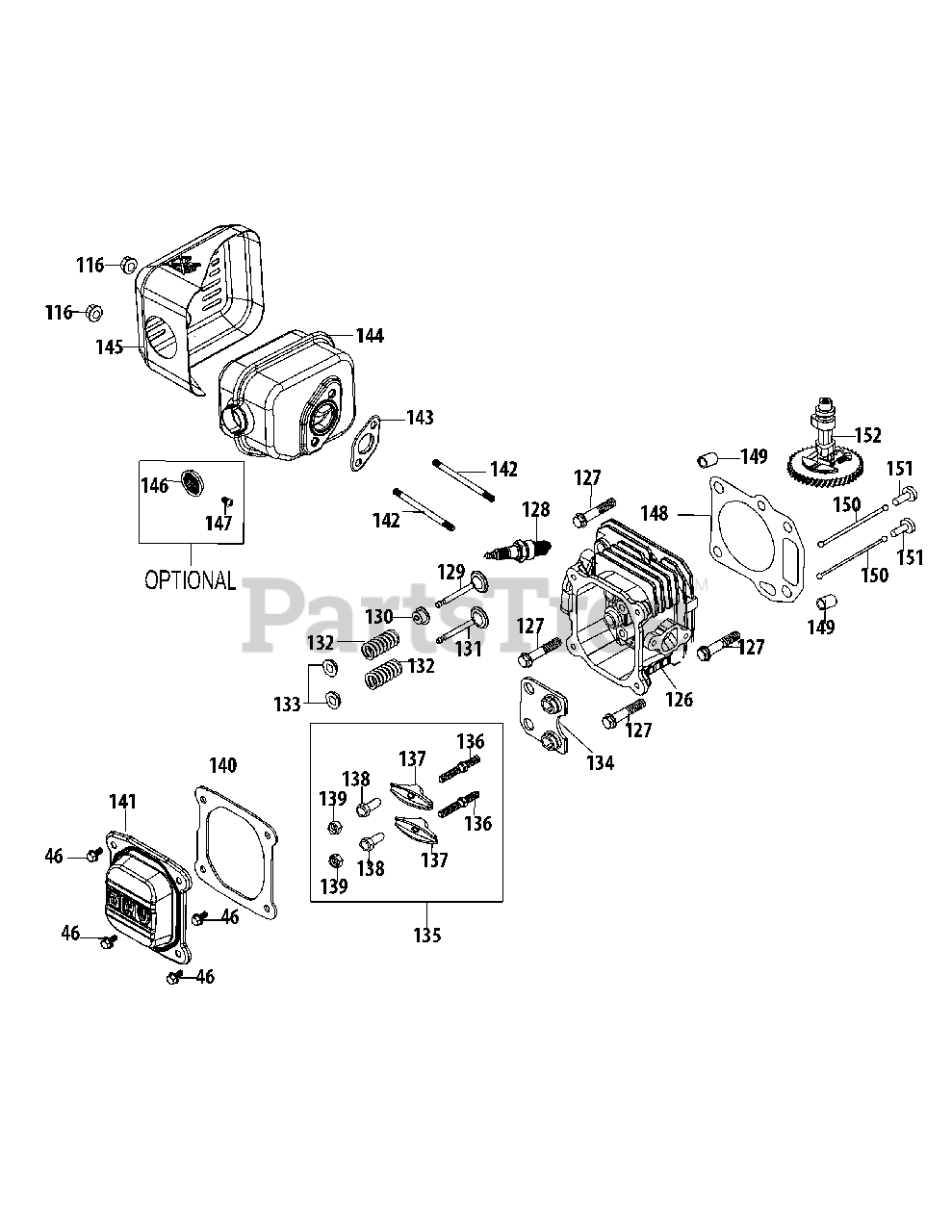

1X65RU Cylinder Head Parts Diagram

  • Title

46

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

Usually ships in 3-6 days

0

116

MTD 712-05015

Nut M6X10Mm Starter/Carb/Muff

$6.99

$

In Stock, Qty 6

0

126

MTD 751-14639

Cylinder Head
(Superseded to 951-14639)

$123.99

$

Usually ships in 3-6 days

0

127

MTD 710-06185

Bolt M8X54 Cylinder Head
(Superseded to 910-06185)

$6.99

$

Usually ships in 3-6 days

0

128

MTD 951-14437

Spark Plug/F5Rtc

$8.49

$

In Stock, Qty 20+

0

129

MTD 951-14640

Intake Valve
(Superseded to 951-14640A)

$9.99

$

Usually ships in 3-6 days

0

130

MTD 721-04237

Intake Valve Seal
(Superseded to 921-04237A)

$8.49

$

Usually ships in 3-6 days

0

131

MTD 951-14641

Exhaust Valve
(Superseded to 951-14641A)

$9.99

$

Usually ships in 3-6 days

0

132

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

133

MTD 708-04094

Valve Spring Retainer
(Superseded to 951-11977)

$4.49

$

In Stock, only 2 left!

0

134

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

135

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

136

MTD 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

137

MTD 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

138

MTD 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

139

MTD 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

140

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, only 4 left!

0

141

MTD 951-14609

Valve Cover
(Superseded to 951-14609A)

$16.99

$

Usually ships in 3-6 days

0

142

MTD 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, only 2 left!

0

143

MTD 951-14427

Muffler Gasket
(Superseded to 951-14427A)

$7.49

$

In Stock, only 1 left!

0

144

MTD 951-10403

Muffler Assembly

$82.99

$

Usually ships in 3-6 days

0

145

MTD 951-14430

Muffler Shield
(Superseded to 951-15072)

$25.99

$

Usually ships in 3-6 days

0

146

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

147

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

148

MTD 951-14431

Cylinder Head Gasket

$16.99

$

In Stock, only 1 left!

0

149

MTD 715-04108

Cylinder Head Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

150

MTD 747-04862

Push Rod

$6.49

$

In Stock, Qty 6

0

151

MTD 951-14432

Tappet
(Superseded to 951-14432A)

$8.99

$

Usually ships in 3-6 days

0

152

MTD 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0
