RM 220 (12BGB2S6783) - Remington Walk-Behind Mower (2016) Deck Assembly Parts Diagram

Walk-Behind Mower

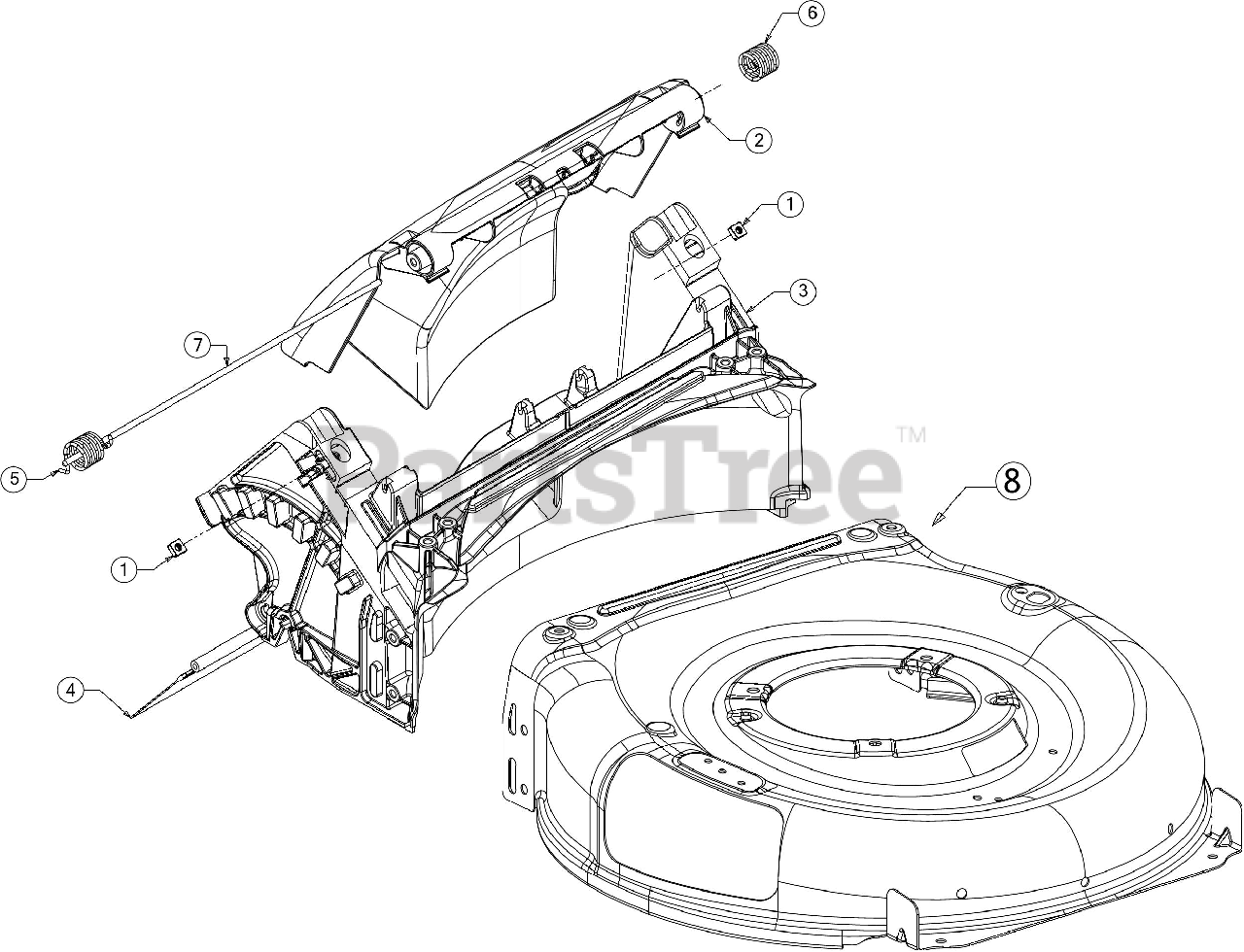

Deck Assembly Parts Diagram

  • Title
1

MTD 712-04222

SQUARE NUT 1/4-20

$5.49

$

Usually ships in 3-6 days

0

2

N/A

N/A

Note: (Not Serviceable; Order Part Number 631-04369A)

$

$

Not available

3

MTD 631-04369A

DOOR ASSEMBLY
(Superseded to 631-08159)

$55.99

$

Usually ships in 3-6 days

0

4

MTD 731-07203

TRAILSHIELD

$10.99

$

In Stock, only 2 left!

0

5

MTD 732-05061A

TORSION SPRING (RH)
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

6

MTD 732-05062A

TORSION SPRING (LH)

$5.49

$

In Stock, only 1 left!

0

7

MTD 747-05183

REAR DOOR PIVOT ROD

$3.99

$

In Stock, Qty 10

0

8

MTD 787-01873B-4041

21" DECK (3N1)
(Superseded to 787-01873B)

$102.99

$

Usually ships in 3-6 days

0

MTD 631-04369A

REAR BAG DOOR ASSEMBLY
(Superseded to 631-08159)

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0
