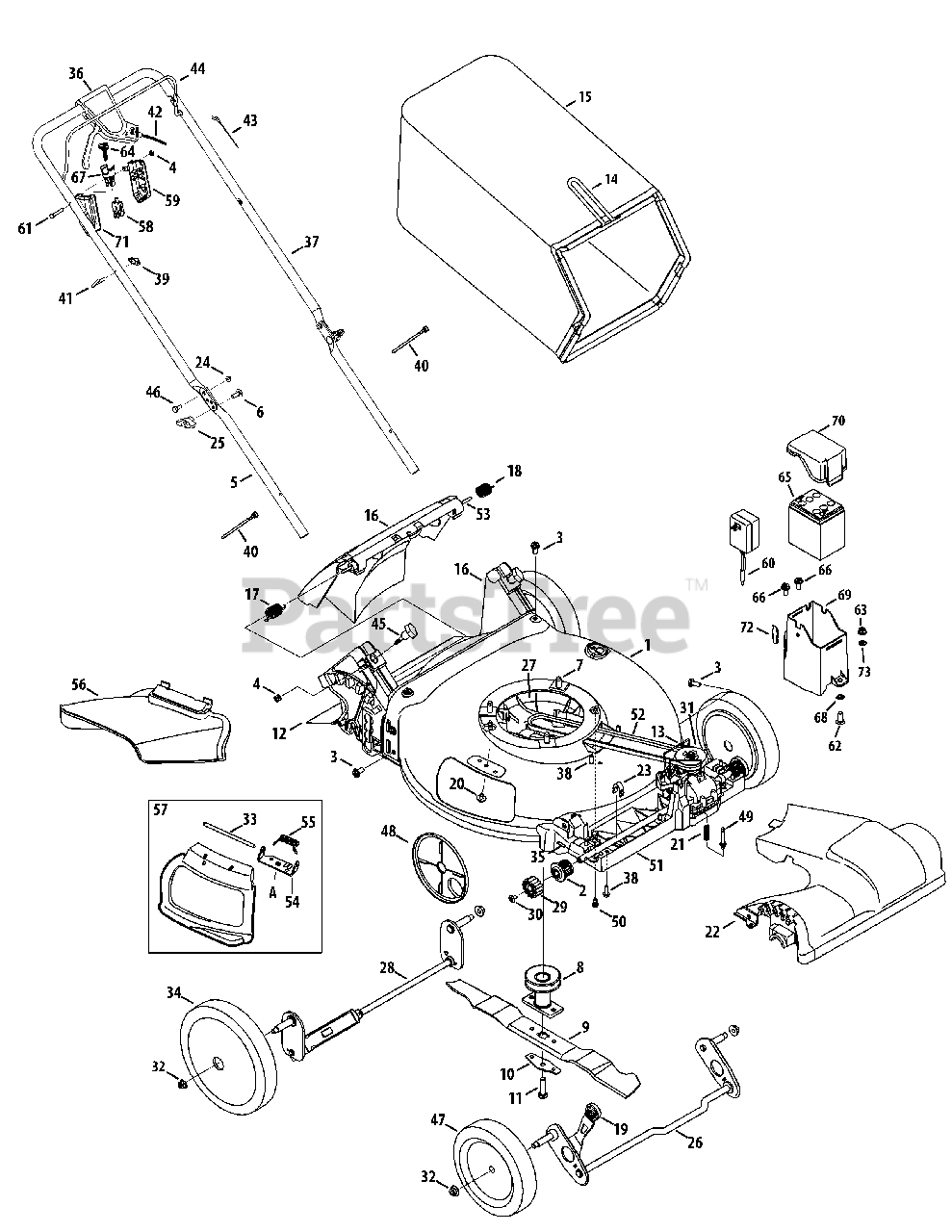

RM 220 (12AGB2S6783) - Remington Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 787-01873B-4041

Deck, 21"
(Superseded to 787-01873B)

$102.99

$

Usually ships in 3-6 days

0

2

MTD 941-00019

Bearing Assembly

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

4

MTD 712-04222

Nut, Sq., 1/4-20

$5.49

$

In Stock, only 2 left!

0

5

MTD 749-04608A-0637

Lower Handle
(Superseded to 749-07298-0637)

$9.99

$

In Stock, only 4 left!

0

6

MTD 710-04998

Carriage Screw ,5/16-18

$5.99

$

In Stock, only 2 left!

0

7

MTD 710-04683B

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

8

MTD 687-02528

Blade Adapter (159cc)

$39.99

$

In Stock, Qty 20+

0

9

MTD 942-0741A

Mulching Blade

$29.99

$

In Stock, Qty 20+

0

10

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

11

MTD 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 8

0

12

MTD 731-07203

Trailing Shield

$10.99

$

In Stock, Qty 6

0

13

MTD 732-04675A

Transmission Wire
(Superseded to 732-04675B)

$3.99

$

In Stock, Qty 20+

0

14

MTD 647-04271-0637

Grass Catcher Frame

$41.99

$

In Stock, Qty 20+

0

15

MTD 964-05065

Grass Bag, Remington

$54.99

$

In Stock, Qty 10

0

16

MTD 631-04369A

Rear Discharge Door Assembly
(Superseded to 631-08159)

$55.99

$

In Stock, only 1 left!

0

17

MTD 732-05061A

Torsion Spring - RH
(Superseded to 732-05061B)

$5.49

$

In Stock, only 1 left!

0

18

MTD 732-05062A

Torsion Spring - LH

$5.49

$

In Stock, only 1 left!

0

19

MTD 720-05099

Adjustment Lever Knob (Orange)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 710-05073

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04704

Compression Spring

$4.49

$

In Stock, Qty 20+

0

22

MTD 731-07797

Front Cover
(Superseded to 731-07797A)

$32.99

$

In Stock, only 1 left!

0

23

MTD 787-01793

Front Axle Clip

$4.49

$

In Stock, Qty 18

0

24

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

25

MTD 720-04122

Wing Knob

$6.99

$

In Stock, Qty 20+

0

26

MTD 911-04150

Front Axle Assembly

$45.99

$

In Stock, only 1 left!

0

27

MTD 931-04535B

Engine Baffle
(Superseded to 931-04535C)

$14.99

$

In Stock, Qty 8

0

28

MTD 911-04144B

Rear Axle Assembly
(Superseded to 611-04144B)

$36.99

$

In Stock, only 1 left!

0

29

MTD 917-04801

Spur Gear, 14T - RH

$9.99

$

In Stock, only 2 left!

0

29

MTD 917-04802

Spur Gear, 14T - LH

$9.49

$

In Stock, only 4 left!

0

30

MTD 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

31

MTD 918-04881A

Transmission Assembly
(Superseded to 918-04881C)

$148.99

$

Usually ships in 3-6 days

0

32

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

33

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

34

MTD 634-04625

Rear Wheel, 11", Oyster Gray

$43.99

$

In Stock, Qty 8

0

35

MTD 715-04099

Dowel Pin

$4.49

$

In Stock, Qty 20+

0

36

MTD 753-06060A

Control Lever Assembly

$27.99

$

In Stock, only 1 left!

0

37

MTD 749-04679

Upper Handle
(Superseded to 749-04679D-0637)

Variations

MTD 749-04679-0637

HANDLE-UPPER SQZ G - POWDER BLACK (0637)

$46.99

$

In Stock, only 1 left!

0

$46.99

$

In Stock, only 1 left!

0

38

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 10

0

39

MTD 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

MTD 946-04655A

Drive Cable

$24.99

$

In Stock, only 4 left!

0

43

MTD 946-1130

Control Cable (6X65RU)

$17.99

$

In Stock, Qty 7

0

44

MTD 747-06525

Blade Control, Orange

Variations

MTD 747-06525-4041

BAIL-OPERATOR - PURE ORANGE (4041)

$9.99

$

In Stock, only 1 left!

0

$8.49

$

Usually ships in 3-6 days

0

45

MTD 720-05090

Wing Nut, Orange

$6.49

$

Usually ships in 3-6 days

0

46

MTD 738-04419A

Sldr. Screw, .375 x .126 x 1/4-20

$4.49

$

In Stock, Qty 20+

0

47

MTD 734-04581

Front Wheel, Gray, Pin Bar

$37.99

$

In Stock, Qty 20+

0

48

MTD 731-07240A

Wheel Dust Cover

$6.49

$

In Stock, Qty 5

0

49

MTD 731-07355

Spring Body

$5.99

$

Usually ships in 3-6 days

0

50

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

51

MTD 731-07789

Lower Tray
(Superseded to 731-07789A)

$33.99

$

In Stock, only 1 left!

0

52

MTD 954-04260

V-Belt

$28.99

$

In Stock, Qty 20+

0

53

MTD 747-05183

Pivot Rod

$3.99

$

In Stock, Qty 11

0

54

MTD 787-01779

Chute Deflector Bracket

$4.99

$

In Stock, only 1 left!

0

55

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

56

MTD 731-07486

Side Discharge Chute

$16.99

$

In Stock, only 3 left!

0

57

MTD 987-02516A

Mulch Plug (Incl. 33, 54-58)
(Superseded to 687-06029)

$25.99

$

In Stock, Qty 20+

0

58

MTD 725-06114

Plunger Switch

$33.99

$

In Stock, only 1 left!

0

59

MTD 731-09755

Electric Start Housing, LH

$5.49

$

In Stock, only 1 left!

0

60

MTD 725-06121A

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 11

0

61

MTD 710-0136

Screw, 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

62

MTD 710-0276

Bolt, Carr., 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

63

MTD 912-0429

Nut, Hexlk, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

64

MTD 731-09728

Key

$4.99

$

In Stock, Qty 10

0

65

MTD 725-04903

Battery
(Superseded to 725P04903)

$112.99

$

In Stock, Qty 10

0

66

MTD 738-04431A

Scr., Sldr., 5/16-14 x .972

$3.99

$

Usually ships in 3-6 days

0

67

MTD 931-05131A

Key Switch

$13.99

$

In Stock, only 1 left!

0

68

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

69

MTD 731-07135

Battery Housing

$14.99

$

Usually ships in 3-6 days

0

70

MTD 731-07154A

Battery Housing Top

$8.99

$

In Stock, only 1 left!

0

71

MTD 731-09753A

Electric Start Housing, RH
(Superseded to 731-09753B)

$6.49

$

Usually ships in 3-6 days

0

72

MTD 735-04213B

Lid Seal
(Superseded to 735-04213C)

$4.99

$

In Stock, only 2 left!

0

73

MTD 736-0242

Washer, Bell, .340 x .872 x .080

$4.49

$

In Stock, Qty 20+

0

MTD 925-06140B

Wire Harness

Note: (Not Shown)

$59.99

$

In Stock, only 2 left!

0

MTD 725-05106

Fuse

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days
