RM 220 (12AGB2S6783) - Remington Walk-Behind Mower (2015) 6X65RU Fuel Tank Parts Diagram

Walk-Behind Mower

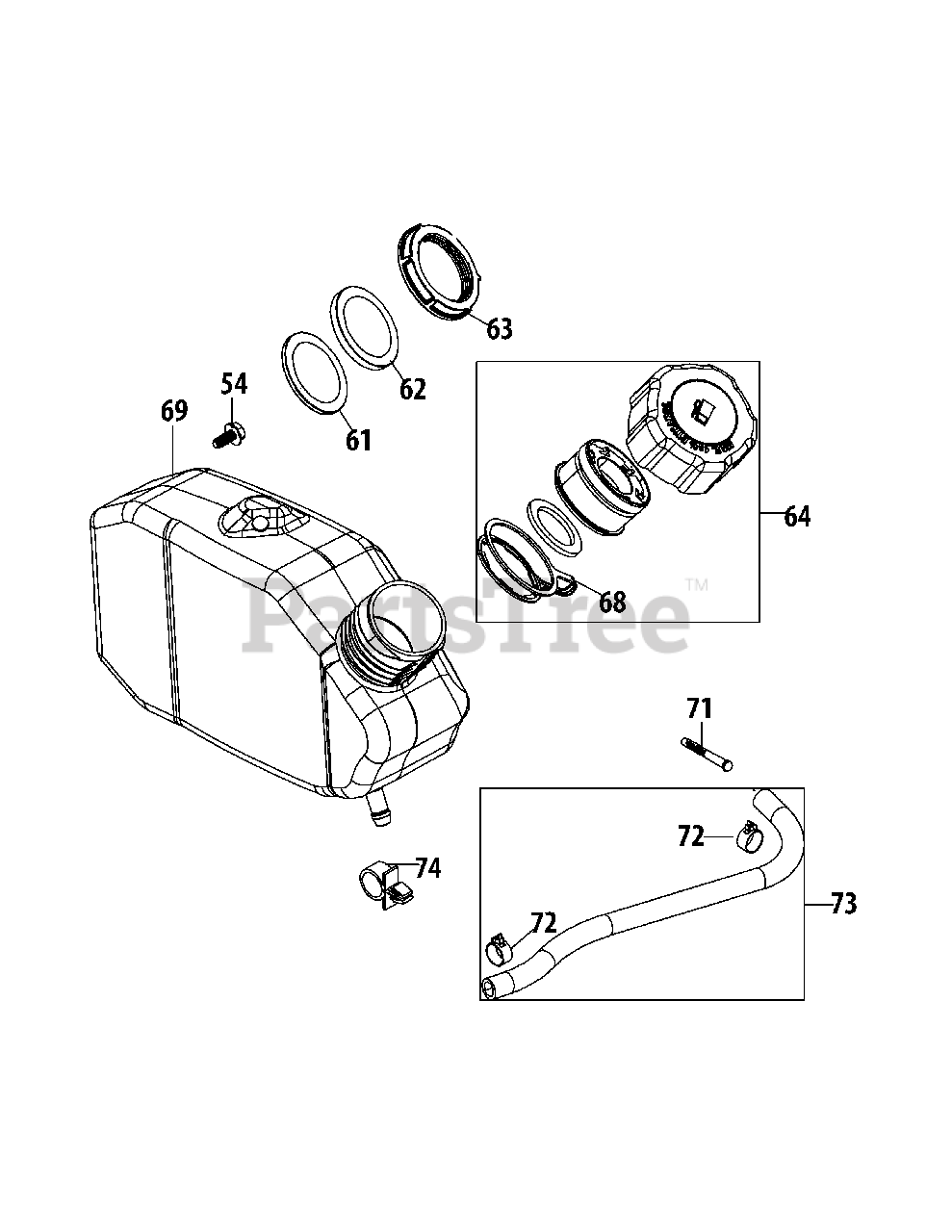

6X65RU Fuel Tank Parts Diagram

  • Title
54

MTD 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

61

MTD 731-08133

Fuel Tank Lower Grommet

$8.49

$

Usually ships in 3-6 days

0

62

MTD 951-14406

Fuel Tank Upper Grommet

$12.99

$

Usually ships in 3-6 days

0

63

MTD 731-08104

Fuel Tank Nut

$7.49

$

In Stock, Qty 11

0

64

MTD 951-14407

Fuel Cap Assembly

$14.99

$

In Stock, only 4 left!

0

68

MTD 951-14695

Fuel Cap Tether

$6.49

$

Usually ships in 3-6 days

0

69

MTD 931-04629

Fuel Tank

$69.99

$

In Stock, Qty 10

0

71

MTD 951-10358A

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

72

MTD 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

73

MTD 751-14438

Fuel Hose
(Superseded to 951-14438)

$27.99

$

In Stock, Qty 7

0

74

MTD 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0
