RM 212 B (18A-212B783) - Remington Walk-Behind Mower, Electric (2010) General Assembly Parts Diagram

Walk-Behind Mower, Electric

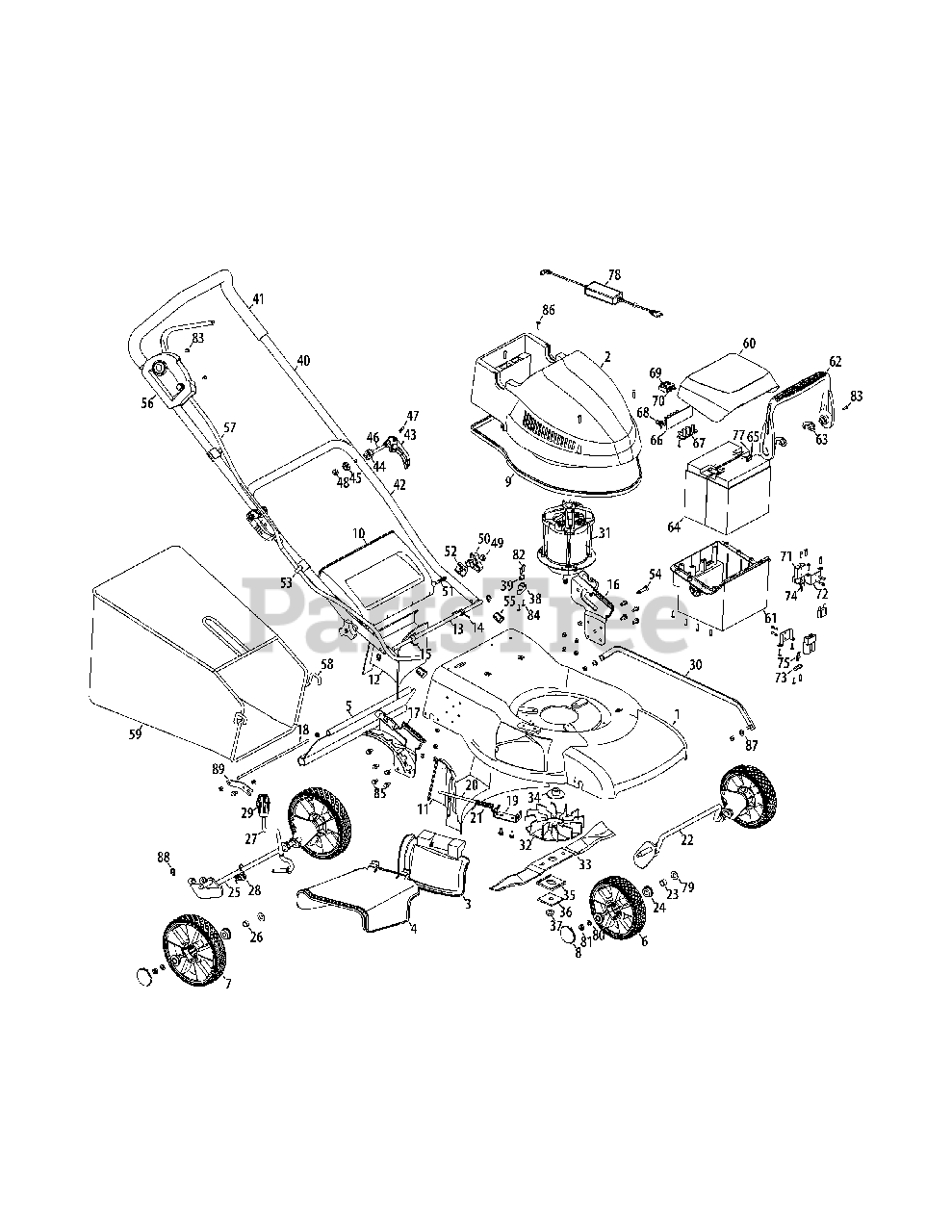

General Assembly Parts Diagram

  • Title

$

$

Not available

2

MTD 731-07671

Shroud

$40.99

$

Usually ships in 3-6 days

0

3

MTD 731-07619

Side Discharge Door

$8.99

$

Usually ships in 3-6 days

0

4

MTD 731-07620

Side Discharge Chute

$15.99

$

Usually ships in 3-6 days

0

5

MTD 731-07621

Trail Shield

$29.99

$

Usually ships in 3-6 days

0

6

MTD 734-04537

Front Wheel
(Superseded to 734-04553)

$25.99

$

In Stock, only 1 left!

0

7

MTD 734-04548

Rear Wheel
(Superseded to 734-04554)

$

$

Not available

8

MTD 731-07512

Wheel Cap

$4.49

$

Usually ships in 3-6 days

0

9

MTD 721-04378

Seal Line

$6.99

$

Usually ships in 3-6 days

0

10

MTD 731-07622

Rear Door

$20.99

$

Usually ships in 3-6 days

0

11

MTD 731-07623

Rear Baffle

$16.99

$

Usually ships in 3-6 days

0

12

MTD 731-07624

Mulching Plug

$21.99

$

Usually ships in 3-6 days

0

13

MTD 711-05358

Rear Shaft

$7.99

$

Usually ships in 3-6 days

0

14

MTD 732-04733

Spring

$3.49

$

Usually ships in 3-6 days

0

15

MTD 732-04734

Spring

$3.49

$

Usually ships in 3-6 days

0

16

MTD 787-01824A

Left Bracket

$31.99

$

Usually ships in 3-6 days

0

17

MTD 787-01825A

Right Bracket

$35.99

$

Usually ships in 3-6 days

0

18

MTD 711-05325

Trail Shield Pin

$4.99

$

Usually ships in 3-6 days

0

19

MTD 787-01813

Side Discharge Bracket

$3.99

$

Usually ships in 3-6 days

0

20

MTD 711-05326

Side Discharge Pin

$4.49

$

Usually ships in 3-6 days

0

21

MTD 732-04713

Spring

$3.99

$

Usually ships in 3-6 days

0

22

MTD 611-04181

Front Shaft Assembly

$57.99

$

Usually ships in 3-6 days

0

23

MTD 741-04464

Front Shaft Bushing

$3.99

$

Usually ships in 3-6 days

0

24

MTD 741-04474

Bearing

$7.99

$

Usually ships in 3-6 days

0

25

MTD 611-04182

Rear Shaft Assembly

$41.99

$

Usually ships in 3-6 days

0

26

MTD 741-04465

Rear Shaft Bushing
(Superseded to 941-04465)

$6.49

$

Usually ships in 3-6 days

0

27

MTD 732-04735

Handle Adjust

$16.99

$

Usually ships in 3-6 days

0

28

MTD 732-04715

Handle Adjust Spring

$3.99

$

Usually ships in 3-6 days

0

29

MTD 720-04143

Handle Adjust Knob

$7.49

$

Usually ships in 3-6 days

0

30

MTD 787-01826

Link Bar

$20.99

$

Usually ships in 3-6 days

0

31

MTD 724-04095

Motor
(Superseded to 924-04095)

$223.99

$

Usually ships in 3-6 days

0

32

$16.99

$

Usually ships in 3-6 days

0

33

MTD 742-04323

Blade
(Superseded to 942-04321)

$20.99

$

In Stock, only 3 left!

0

34

MTD 736-04486

Flange

$13.99

$

Usually ships in 3-6 days

0

35

MTD 731-07598

Washer

$3.99

$

Usually ships in 3-6 days

0

36

MTD 736-04487

Washer

$4.49

$

Usually ships in 3-6 days

0

37

MTD 712-04237

Blade Nut

$3.99

$

Usually ships in 3-6 days

0

38

MTD 731-07672

Support

$3.99

$

Usually ships in 3-6 days

0

39

MTD 731-07673

Strain Relief

$4.49

$

Usually ships in 3-6 days

0

40

MTD 749-04670A

Upper Handle

$29.99

$

Usually ships in 3-6 days

0

41

MTD 731-07522

Handle Grip

$14.99

$

Usually ships in 3-6 days

0

42

MTD 749-04688A

Lower Handle

$33.99

$

Usually ships in 3-6 days

0

43

MTD 720-04145

Quick Release

$3.99

$

Usually ships in 3-6 days

0

44

MTD 736-04488

Washer

$4.49

$

Usually ships in 3-6 days

0

45

MTD 720-04146

Quick Release Knob

$4.99

$

Usually ships in 3-6 days

0

46

MTD 710-05151

M8 Screw

$3.49

$

Usually ships in 3-6 days

0

47

MTD 715-04107

Quick Release Pin

$3.99

$

Usually ships in 3-6 days

0

48

MTD 712-04257

M8 Nut

$3.99

$

Usually ships in 3-6 days

0

49

MTD 712-04250

M6 Lock Nut

$

$

Not available

50

MTD 720-04147

Wing Knob

$4.49

$

Usually ships in 3-6 days

0

51

$3.99

$

Usually ships in 3-6 days

0

52

MTD 736-04489

Washer

$3.99

$

Usually ships in 3-6 days

0

53

MTD 731-07524

Cord Clip

$3.99

$

Usually ships in 3-6 days

0

54

$3.99

$

Usually ships in 3-6 days

0

55

$3.99

$

Usually ships in 3-6 days

0

56

MTD 625-04129

Switch Box

$45.99

$

Usually ships in 3-6 days

0

57

$38.99

$

Usually ships in 3-6 days

0

58

$41.99

$

Usually ships in 3-6 days

0

59

MTD 764-04096

Grassbag

$55.99

$

Usually ships in 3-6 days

0

60

MTD 731-07674

Battery Pack Cover

$22.99

$

Usually ships in 3-6 days

0

61

MTD 731-07675

Battery Pack Housing

$3.99

$

Usually ships in 3-6 days

0

62

MTD 731-07676

Handle

$25.99

$

Usually ships in 3-6 days

0

63

$15.99

$

Usually ships in 3-6 days

0

64

MTD 725-05157

Battery

$429.99

$

Usually ships in 3-6 days

0

64

MTD 725-05089

Battery Pack, with Cover & Handle

Note: Not shown

$413.99

$

Usually ships in 3-6 days

0

65

MTD 725-05158

Connector

$3.99

$

Usually ships in 3-6 days

0

66

$34.99

$

Usually ships in 3-6 days

0

67

MTD 725-05160

PCB Support

$3.99

$

Usually ships in 3-6 days

0

68

MTD 725-05161

Connector
(Superseded to 725P05161)

$3.99

$

Usually ships in 3-6 days

0

69

MTD 725-05162

Safety Key
(Superseded to 925-05162)

$4.49

$

Usually ships in 3-6 days

0

70

MTD 725-05163

Key Connector

$4.99

$

Usually ships in 3-6 days

0

71

MTD 725-05164

SA50 Connector

$22.99

$

Usually ships in 3-6 days

0

72

MTD 725-05165

Supporter

$13.99

$

Usually ships in 3-6 days

0

73

MTD 731-07678

Supporter

$3.99

$

Usually ships in 3-6 days

0

74

MTD 725-05170

Connector

$3.99

$

Usually ships in 3-6 days

0

75

MTD 725-05169

Connector

$3.99

$

Usually ships in 3-6 days

0

77

$22.99

$

Usually ships in 3-6 days

0

78

MTD 725-05068

Charger

$106.99

$

Usually ships in 3-6 days

0

79

MTD 736-04507

Washer

$

$

Not available

80

MTD 736-04506

8mm Washer

$3.49

$

Usually ships in 3-6 days

0

81

MTD 712-04258

M8 Nut

$

$

Not available

82

MTD 710-05156

ST4.2x16 Screw

$3.49

$

Usually ships in 3-6 days

0

83

MTD 710-05155

ST4.2x25 Screw

$3.49

$

Usually ships in 3-6 days

0

84

MTD 710-05154

ST4.8x16 Screw

$3.49

$

Usually ships in 3-6 days

0

85

MTD 710-05153

M6x12 Screw

$3.49

$

Usually ships in 3-6 days

0

86

MTD 710-05152

M5 x 12 Screw

$

$

Not available

87

MTD 714-04508

Washer

$

$

Currently unavailable

88

MTD 716-04169

10mm Lock Ring

$3.99

$

Usually ships in 3-6 days

0

89

MTD 787-01841

Support

$10.99

$

Usually ships in 3-6 days

0

MTD 725-05168

Fuse

Note: Not shown

$7.99

$

Usually ships in 3-6 days

0
