RM 202 A (18A-202A783) - Remington Walk-Behind Mower, Electric (2012) General Assembly Parts Diagram

Walk-Behind Mower, Electric

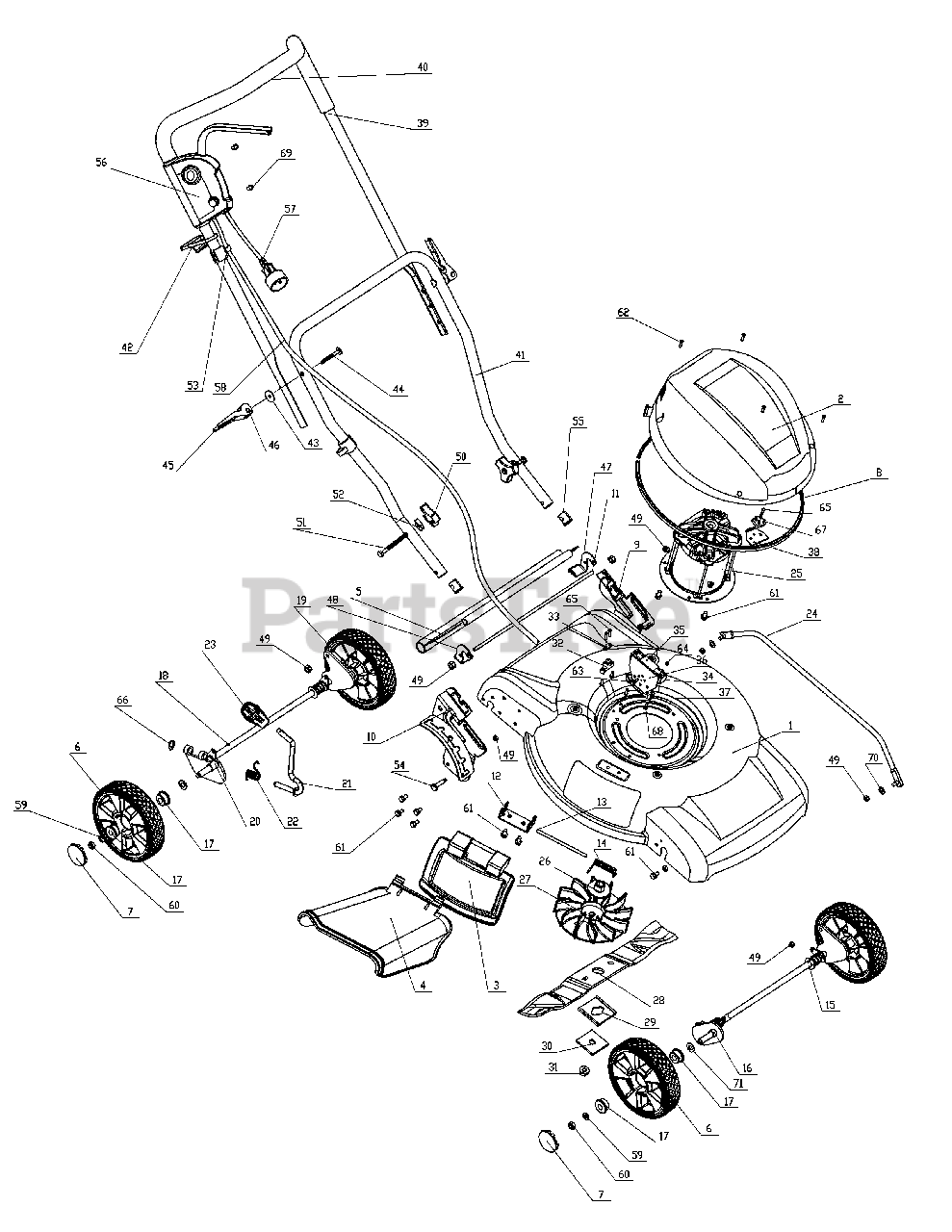

General Assembly Parts Diagram

  • Title

1

MTD 787-01810A

Deck, 19", 3-In-1

$

$

Not available

2

MTD 731-07507

Shroud

$33.99

$

Usually ships in 3-6 days

0

3

MTD 731-07508

Door, Discharge

$5.99

$

Usually ships in 3-6 days

0

4

MTD 731-07509

Chute, Discharge

$10.99

$

Usually ships in 3-6 days

0

5

MTD 731-07510

Trailshield

$27.99

$

Usually ships in 3-6 days

0

6

MTD 734-04553

Wheel, Front

$25.99

$

In Stock, only 1 left!

0

7

MTD 731-07512

Cap, Wheel

$4.49

$

Usually ships in 3-6 days

0

8

MTD 721-04378

Seal, Shroud

$6.99

$

Usually ships in 3-6 days

0

9

MTD 787-01811A

Bracket, Wheel, Left

$25.99

$

Usually ships in 3-6 days

0

10

MTD 787-01812A

Bracket, Wheel, Right

$28.99

$

Usually ships in 3-6 days

0

11

MTD 711-05325

Rod, Trailshield

$4.99

$

Usually ships in 3-6 days

0

12

MTD 787-01813

Bracket, Deflector, Chute

$3.99

$

Usually ships in 3-6 days

0

13

MTD 711-05326

Rod, Door, Chute

$4.49

$

Usually ships in 3-6 days

0

14

MTD 732-04713

Spring, Door, Discharge

$3.99

$

Usually ships in 3-6 days

0

15

MTD 611-04174

Axle, Assembly, Front

$42.99

$

Usually ships in 3-6 days

0

16

MTD 736-04483

Washer

$5.99

$

Usually ships in 3-6 days

0

17

MTD 731-07511

Bush, Wheel

$3.99

$

Usually ships in 3-6 days

0

18

MTD 611-04175

Axle, Assembly, Rear

$36.99

$

Usually ships in 3-6 days

0

19

MTD 736-04484

Washer

$3.99

$

Usually ships in 3-6 days

0

20

MTD 736-04485

Washer

$3.49

$

Usually ships in 3-6 days

0

21

MTD 732-04714

Lever, Spring

$14.99

$

Usually ships in 3-6 days

0

22

MTD 732-04715

Spring, Lever

$3.99

$

Usually ships in 3-6 days

0

23

MTD 720-04143

Knob, Adjustment, Height

$7.49

$

Usually ships in 3-6 days

0

24

MTD 787-01814

Link, Height, Adjustment

$20.99

$

Usually ships in 3-6 days

0

25

MTD 724-04088

Motor
(Superseded to 924-04088)

$223.99

$

Usually ships in 3-6 days

0

26

MTD 736-04486

Adapter, Blade

$13.99

$

Usually ships in 3-6 days

0

27

MTD 731-07515

Fan, Electric

$16.99

$

Usually ships in 3-6 days

0

28

MTD 742-04313

Blade, 19", 2-in-1

$24.99

$

Usually ships in 3-6 days

0

29

MTD 731-07598

Washer

$3.99

$

Usually ships in 3-6 days

0

30

MTD 736-04487

Washer

$4.49

$

Usually ships in 3-6 days

0

31

MTD 712-04237

Nut, M10 x 1.25

$3.99

$

Usually ships in 3-6 days

0

32

MTD 731-07516

Support, Cord

$3.49

$

Usually ships in 3-6 days

0

33

MTD 731-07520

Keeper, Cord

$3.49

$

Usually ships in 3-6 days

0

34

MTD 725-05071

Resistor

$11.99

$

In Stock, only 1 left!

0

35

MTD 725-05119

Resistor, Holder

$3.99

$

In Stock, only 2 left!

0

36

MTD 731-07599

Resistor, Bracket

$3.49

$

In Stock, only 2 left!

0

37

MTD 725-05072

Heat Sink, Resistor

$3.99

$

In Stock, only 2 left!

0

38

MTD 725-05121

Base, Electric-Bridge

$

$

Not available

39

MTD 749-04670

Handle, Upper
(Superseded to 749-04670A)

$29.99

$

Usually ships in 3-6 days

0

40

MTD 731-07522

Sleeve, Handle, Upper

$14.99

$

Usually ships in 3-6 days

0

41

MTD 749-04671A

Handle, Lower

$33.99

$

Usually ships in 3-6 days

0

42

MTD 731-07523

Retainer, Cord

$3.99

$

Usually ships in 3-6 days

0

43

MTD 736-04627

Wash, Flat, 6.6 x 24 x 2

$3.99

$

Usually ships in 3-6 days

0

44

MTD 710-05447

Bolt, Black, 50mm

$3.99

$

Usually ships in 3-6 days

0

45

MTD 731-08869

Lever, Orange

$3.99

$

Usually ships in 3-6 days

0

46

MTD 711-05723

Pin

$3.99

$

Usually ships in 3-6 days

0

47

MTD 787-01989

Bracket, Trailshield, Left

$3.49

$

Usually ships in 3-6 days

0

48

MTD 787-01990

Bracket, Trailshield, Right

$3.49

$

Usually ships in 3-6 days

0

49

MTD 712-04250

Nut, M6

$

$

Not available

50

MTD 720-04147

Knob

$4.49

$

Usually ships in 3-6 days

0

51

MTD 710-05082

Screw, M8

$3.99

$

Usually ships in 3-6 days

0

52

MTD 736-04489

Washer, Curve

$3.99

$

Usually ships in 3-6 days

0

53

MTD 731-07524

Holder, Cord

$3.99

$

Usually ships in 3-6 days

0

54

MTD 714-04088

Pin

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-07513

Cap, Handle

$3.99

$

Usually ships in 3-6 days

0

56

MTD 625-04125

Switch Box Assembly

$

$

Not available

57

MTD 725-05115

Cord

$8.99

$

Usually ships in 3-6 days

0

58

MTD 725-05116

Cord, Switch

$

$

Not available

59

MTD 736-04497

Washer, Flap, 8mm

$3.99

$

Usually ships in 3-6 days

0

60

MTD 712-04258

Nut, M8

$

$

Not available

61

MTD 710-05153

Screw, M6 X 12

$3.49

$

Usually ships in 3-6 days

0

62

MTD 710-05118

Screw, M5x12

$3.49

$

Usually ships in 3-6 days

0

63

MTD 710-05345

Screw, M4 X 16

$3.49

$

Usually ships in 3-6 days

0

64

MTD 712-04251

Nut, Lock, M4

$3.99

$

Usually ships in 3-6 days

0

65

MTD 710-05156

Screw, St 4.2 X 16

$3.49

$

Usually ships in 3-6 days

0

66

MTD 716-04169

Ring, Snap

$3.99

$

Usually ships in 3-6 days

0

67

MTD 725-05127

Electrical, Bridge

$13.99

$

Usually ships in 3-6 days

0

68

MTD 710-05154

Screw, St, 4.8 X 16

$3.49

$

Usually ships in 3-6 days

0

69

MTD 710-05124

Screw, St, M4.2 X 25

$3.49

$

Usually ships in 3-6 days

0

70

MTD 714-04086

Pin, Cotter

$3.99

$

Usually ships in 3-6 days

0

71

MTD 736-04505

Washer, Spring

$3.99

$

Usually ships in 3-6 days

0
