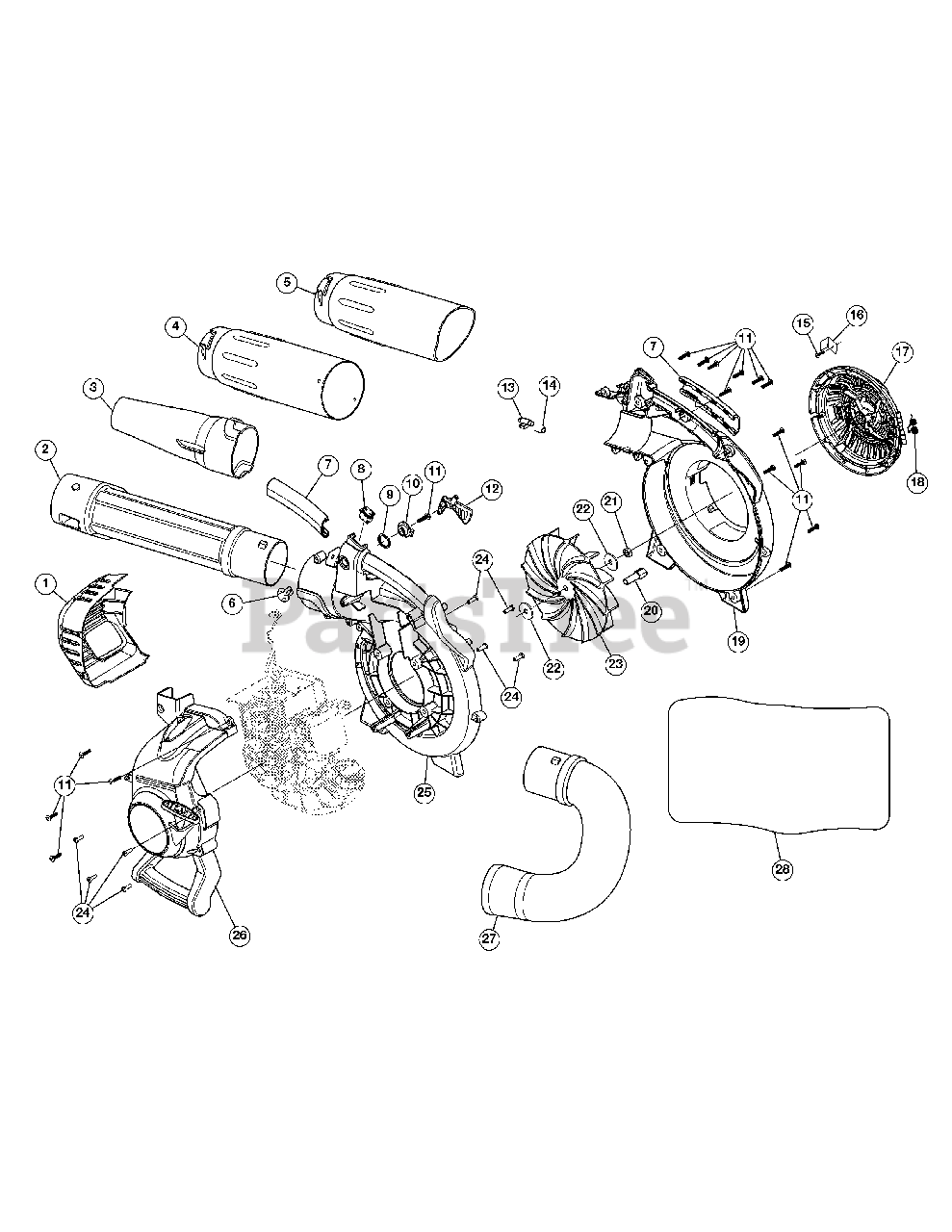

RM 2 BV (41AS2BVG883) - Remington Blower General Assembly Parts Diagram

Blower

General Assembly Parts Diagram

  • Title

1

MTD 753-06694

Muffler Cover Assembly (Incl. 11)

$

$

Not available

2

MTD 753-05936

Upper Tube

$19.99

$

Usually ships in 3-6 days

0

3

MTD 753-05937

Lower Tube

$18.99

$

Usually ships in 3-6 days

0

4

MTD 753-06660

Upper Vac Tube

$13.99

$

Usually ships in 3-6 days

0

5

MTD 791-180467

Lower Vac Tube

$38.99

$

In Stock, only 4 left!

0

6

MTD 753-05932

Outer Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

7

MTD 753-05919

Handle Grips

$6.49

$

Usually ships in 3-6 days

0

8

MTD 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

9

MTD 753-05925

Wavey Washer
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

10

MTD 753-05924

Inner Trigger Lock

$2.99

$

Usually ships in 3-6 days

0

11

MTD 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

12

MTD 753-05930

Throttle Trigger

$

$

Not available

13

MTD 753-05926

Latch Tube

$2.99

$

Usually ships in 3-6 days

0

14

MTD 753-05939

Latch Spring

$2.99

$

In Stock, only 1 left!

0

15

MTD 1755

Screw

$3.99

$

Usually ships in 3-6 days

0

16

MTD 753-06696

Door Lock

$2.99

$

Usually ships in 3-6 days

0

17

MTD 753-06678

Intake Cover

$3.99

$

Usually ships in 3-6 days

0

18

MTD 753-05918

Spring

$2.99

$

Usually ships in 3-6 days

0

19

MTD 753-06679

Impeller Housing

$20.99

$

In Stock, only 1 left!

0

20

MTD 753-06700

Adapter

$5.49

$

In Stock, Qty 7

0

21

MTD 912-0237

Nut
(Superseded to 712-0237)

$

$

Not available

22

MTD 753-05928

Washer

$2.99

$

In Stock, Qty 20+

0

23

MTD 753-05929

Impeller

$13.99

$

In Stock, Qty 20+

0

24

MTD 791-181862

Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

MTD 753-06693

Impeller Housing

$17.99

$

In Stock, only 1 left!

0

26

MTD 753-08298

Engine Cover Assembly (Incl. 11 & 24)

$29.99

$

Usually ships in 3-6 days

0

27

MTD 753-06658

Elbow

$14.99

$

Usually ships in 3-6 days

0

28

MTD 753-06659

Bag

$17.99

$

In Stock, Qty 18

0
