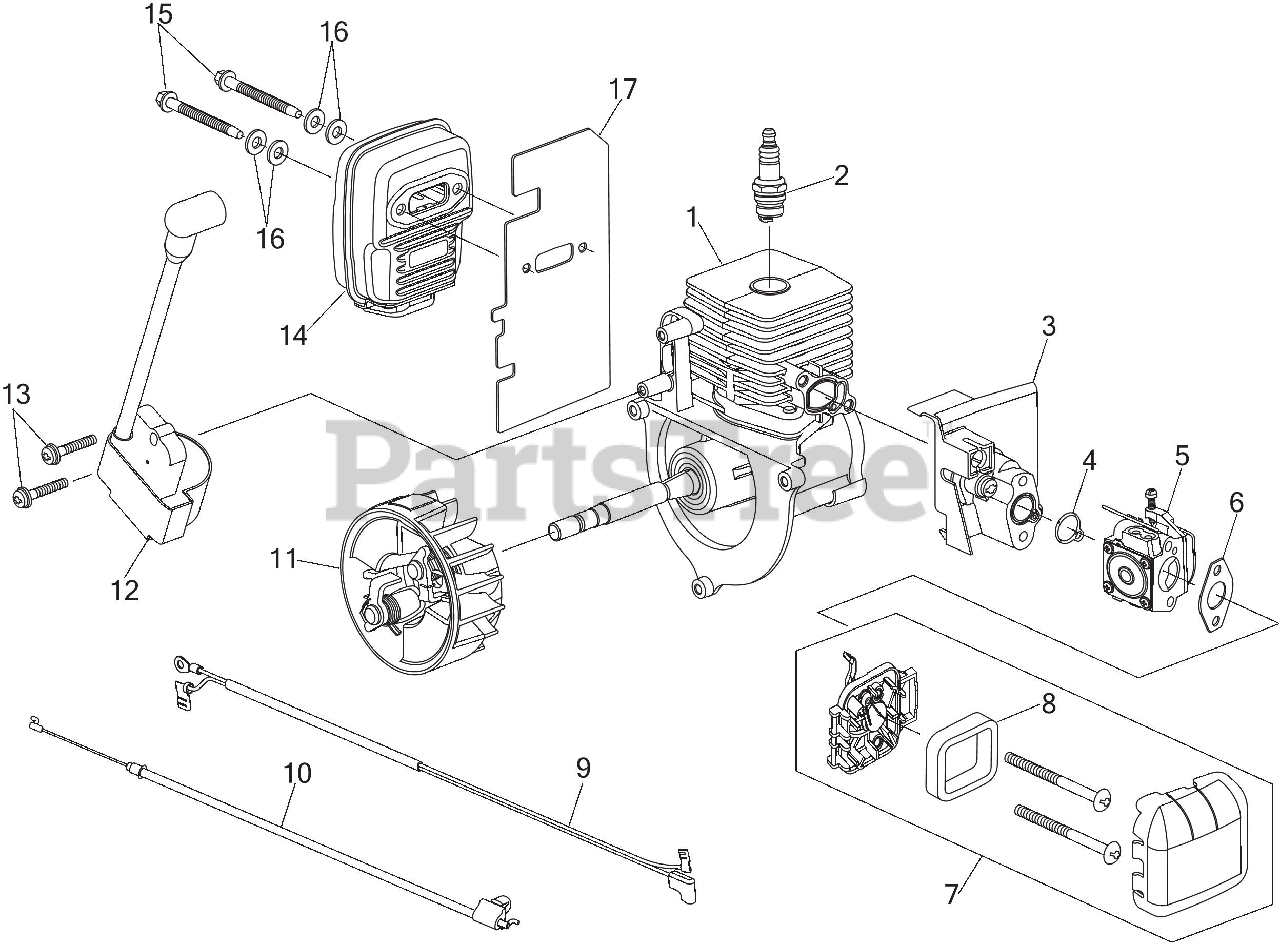

RM 125 (41AS79MY883) - Remington Blower Engine Assembly Parts Diagram

Blower

Engine Assembly Parts Diagram

  • Title

1

MTD 753-08499

SHORTBLOCK

$56.99

$

In Stock, only 4 left!

0

2

MTD 753-08216

SPARK PLU 14MM
(Superseded to 794-00097)

$6.99

$

In Stock, Qty 11

0

3

MTD 753-06189

INTAKE ASSEMBLY

Note: (includes 4)

$7.99

$

In Stock, only 3 left!

0

4

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

5

MTD 753-06423

CARB ASSEMBLY
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

6

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

7

MTD 753-08498

AIR CLEANER ASSEMBLY

Note: (includes 8)

$8.99

$

In Stock, Qty 9

0

8

MTD 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

9

MTD 725-06313

WIRE LEAD

$3.49

$

In Stock, only 1 left!

0

10

MTD 746-05226

THROTTLE CABLE

$4.99

$

In Stock, only 1 left!

0

11

MTD 753-08490

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

12

MTD 753-08617

MODULE ASM W/SLV RFI

Note: (includes 13)

$21.99

$

In Stock, only 1 left!

0

13

MTD 710-06301

SCREW 8-32X.750

$3.49

$

Usually ships in 3-6 days

0

14

MTD 753-08488

MUFFLER ASSEMBLY

Note: (includes 15, 16 and 17)

$29.99

$

In Stock, only 3 left!

0

15

MTD 753-06294

MUFFLER SCREW

$2.99

$

Usually ships in 3-6 days

0

16

MTD 791-182568

WASHER

$4.49

$

Usually ships in 3-6 days

0

17

MTD 721-04801

GASKET

$3.49

$

In Stock, only 1 left!

0
