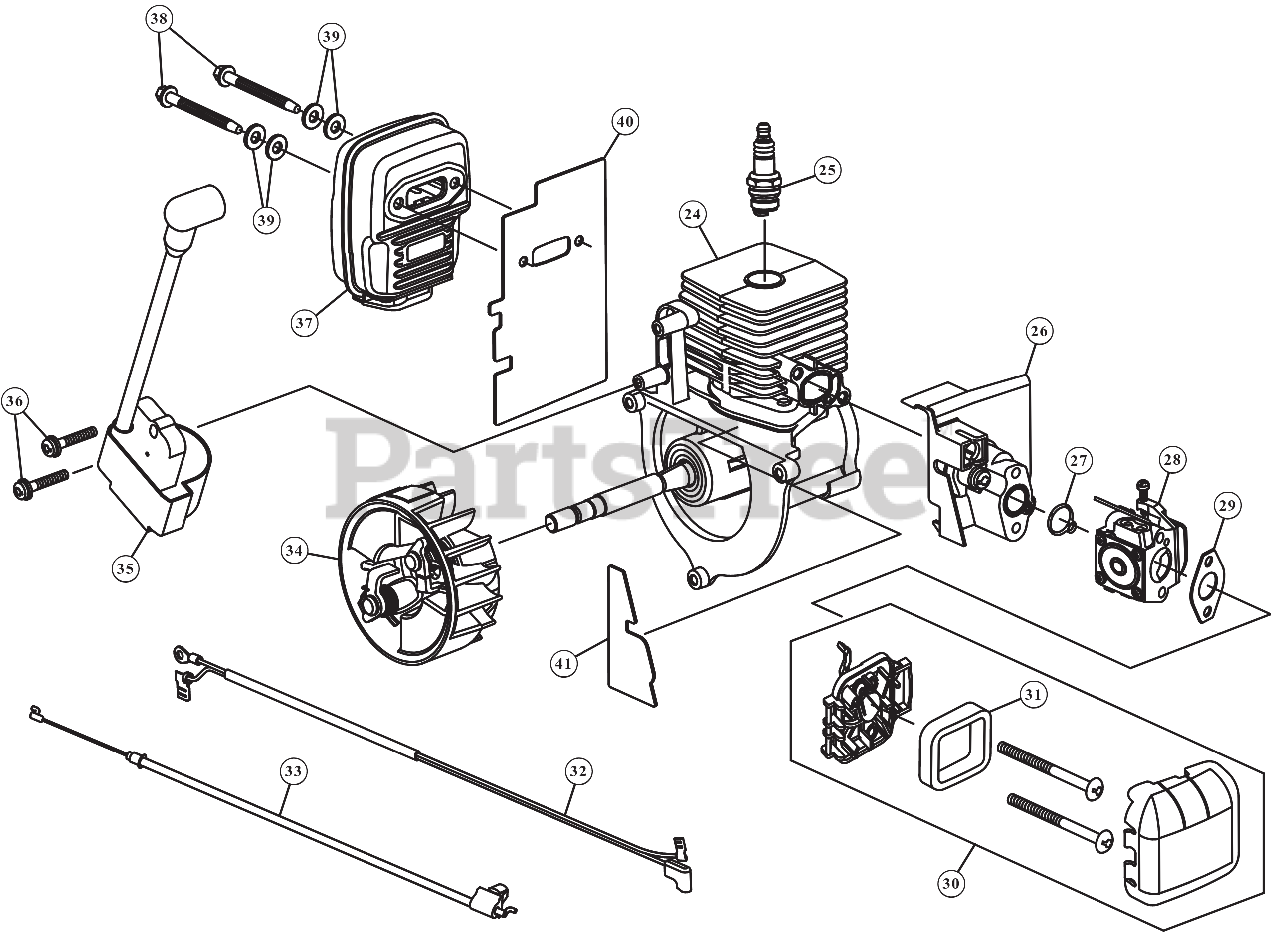

RM 125 (41AR79MY983) - Remington Blower Engine Assembly Parts Diagram

Blower

Engine Assembly Parts Diagram

  • Title

24

MTD 753-09204

SHORT BLOCK

$54.99

$

In Stock, only 1 left!

0

25

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

26

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 27)

$7.99

$

In Stock, only 1 left!

0

27

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

28

MTD 753-06423

CARB ASSEMBLY
(Superseded to 753-06190)

$35.99

$

In Stock, Qty 20+

0

29

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

30

MTD 753-08498

AIR CLEANER ASSEMBLY

Note: (Incl. 31)

$8.99

$

In Stock, Qty 15

0

31

MTD 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

32

MTD 725-06313

WIRE LEAD

$3.49

$

In Stock, only 1 left!

0

33

MTD 746-05226

THROTTLE CABLE

$4.99

$

In Stock, only 1 left!

0

34

MTD 753-08490

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

35

MTD 753-08489

MODULE

Note: (Incl. 36)

$17.99

$

In Stock, only 1 left!

0

36

MTD 710-06301

SCREW 8-32X.750

$3.49

$

Usually ships in 3-6 days

0

37

MTD 753-08488

MUFFLER ASSEMBLY

Note: (Incl. 38, 39 and 40)

$29.99

$

In Stock, only 1 left!

0

38

MTD 753-06294

MUFFLER SCREW

$2.99

$

Usually ships in 3-6 days

0

39

MTD 791-182568

WASH, FLAT .480X.1

$4.49

$

Usually ships in 3-6 days

0

40

MTD 721-04801

GASKET

$3.49

$

In Stock, only 1 left!

0

41

MTD 721-04824

SHORTBLOCK GASKET

$2.99

$

Usually ships in 3-6 days

0
