RLW 359T (80274) - Snapper 19" Walk-Behind Mower, 3.5hp Handles & Controls Parts Diagram

19" Walk-Behind Mower, 3.5hp

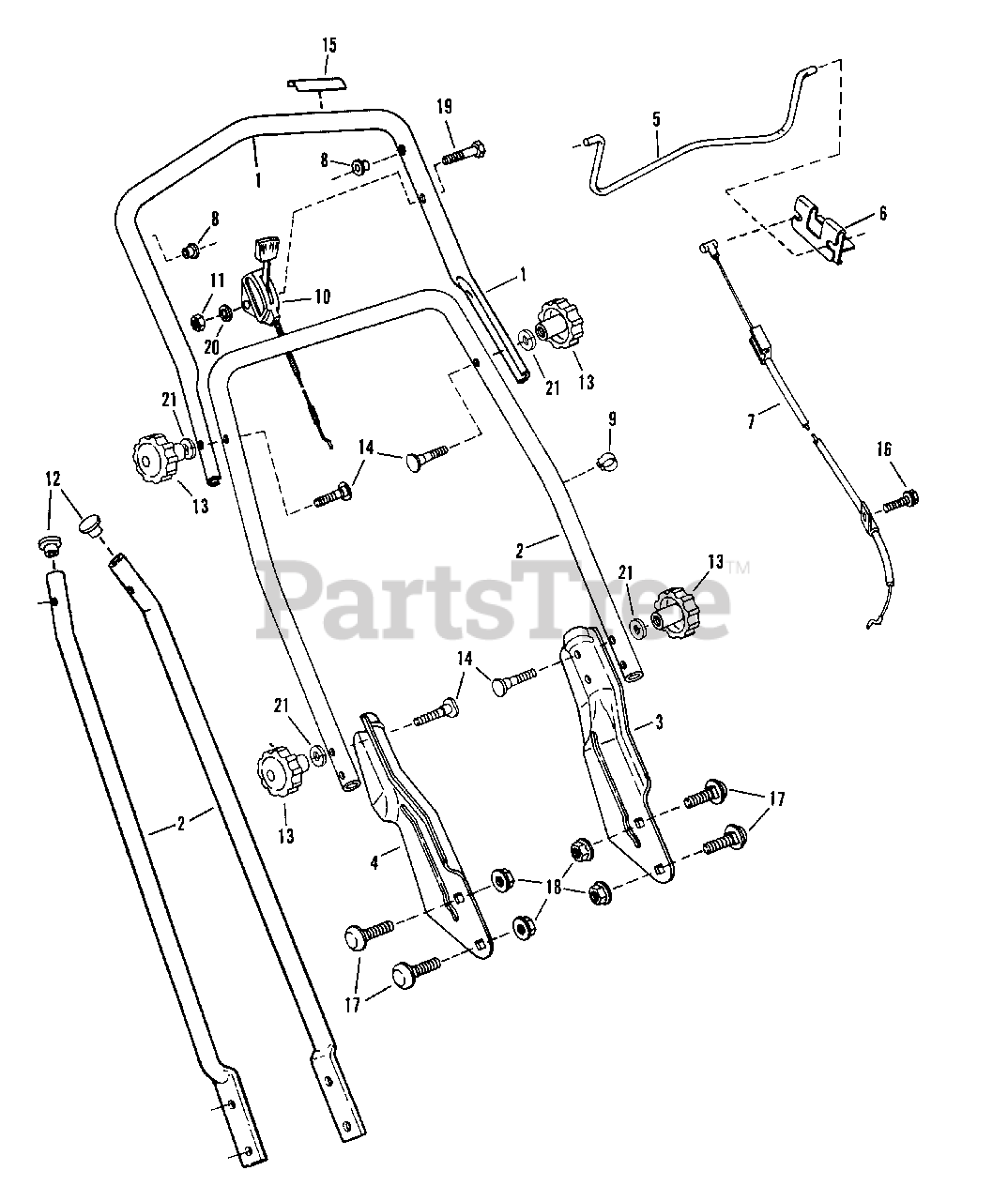

Handles & Controls Parts Diagram

  • Title

1

Snapper 7074384

HANDLE, Upper
(Superseded to 7074384YP)

Note: Was 33473

$213.99

$

Usually ships in 2-12 days

0

Snapper 7033477

HANDLE, Upper

Note: Was 33474 (For OPP Models Only)

$

$

Not available

2

Snapper 7036350

HANDLE, Middle

$

$

Not available

Snapper 7033406

HANDLE, Middle
(Superseded to 7033406YP)

Note: (For OPP Models Only)

$

$

Not available

3

Snapper 7033985

HANDLE, Lower Left Hand
(Superseded to 7033985AYP)

Note: Was 38469

$43.99

$

Usually ships in 2-12 days

0

4

Snapper 7033986

HANDLE, Lower Right Hand
(Superseded to 7033986AYP)

Note: Was 38468

$36.99

$

In Stock, only 4 left!

0

5

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

Note: Was 32829

$5.99

$

In Stock, Qty 5

0

7

Snapper 7022379

CABLE, Blade Control (Tecumseh 4-Cycle)

$

$

Not available

Snapper 7024143

CABLE, Blade Control (Tecumseh 2-Cycle)
(Superseded to 7024143YP)

$11.99

$

Usually ships in 2-12 days

0

Snapper 7027475

CABLE, Blade Control (Robin 2-Cycle)
(Superseded to 7027475YP)

Note: Was 24146

$16.99

$

Usually ships in 2-12 days

0

8

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7022550

CONTROL, Throttle (Tecumseh)

$

$

Currently unavailable

Snapper 7024140

CONTROL, Throttle (Robin)

$

$

Not available

11

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7016544

PLUG
(Superseded to 703931)

Note: (For OPP Models Only)

$3.99

$

In Stock, Qty 10

0

13

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091013

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.49

$

In Stock, only 1 left!

0

15

Snapper 7024088

DECAL, Blade Control

$

$

Not available

16

Snapper 7090898

SCREW, #10-32 x 5/16" Sems

$

$

Not available

17

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage
(Superseded to 703447)

Note: Was 91026

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7091022

SCREW, 1/4-28 x 1-3/4" Hex Head Cap

$

$

Not available

20

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

21

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

Note: Was 91068

$4.49

$

In Stock, Qty 20+

0
