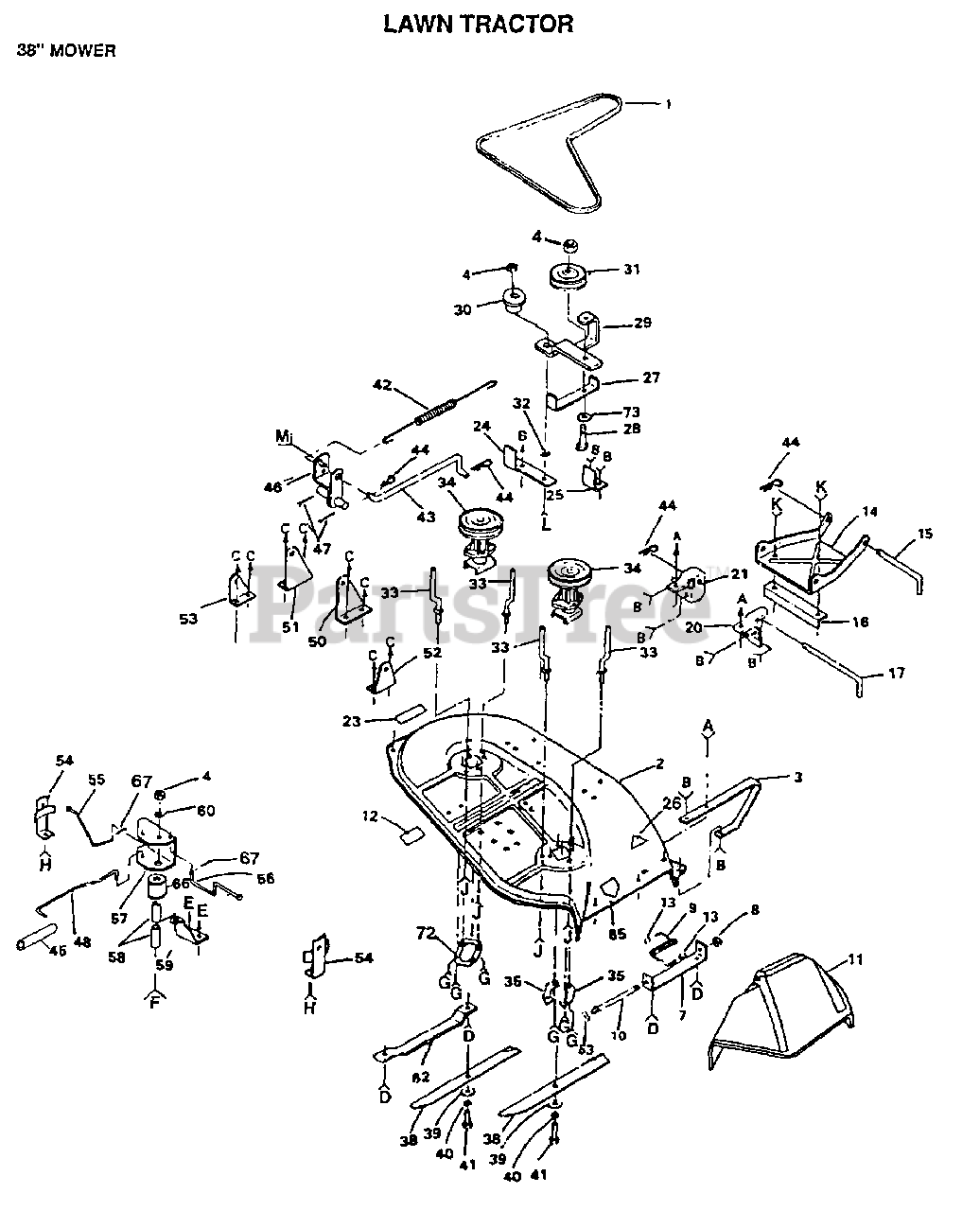

RLT E1238 AR - Electrolux/AYP Lawn Tractor MOWER Parts Diagram

Lawn Tractor

MOWER Parts Diagram

  • Title
1

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$43.99

$

Usually ships in 3-10 days

0

2

$

$

Not available

3

Electrolux/AYP 8417J

SUB= 128772

$

$

Not available

4

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 105896X

SUB= 137607
(Superseded to 532105896)

$

$

Not available

8

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

10

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

12

Electrolux/AYP 105814X

DECAL.LT
(Superseded to 532105814)

$

$

Not available

13

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

15

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

16

Electrolux/AYP 105872X

LINK STOP
(Superseded to 583646901)

$3.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 109835X

HINGE PIN T
(Superseded to 532109835)

$

$

Not available

20

Electrolux/AYP 109598X

BRACKET RH LT
(Superseded to 532109598)

$

$

Not available

21

Electrolux/AYP 109597X

BRACKET LH T
(Superseded to 532109597)

$

$

Not available

23

Electrolux/AYP 109820X

DECAL YT
(Superseded to 532109820)

$

$

Not available

24

Electrolux/AYP 109503X

SUPPORT ARM T
(Superseded to 532109503)

$

$

Not available

25

Electrolux/AYP 109504X

STOP T
(Superseded to 532109504)

$

$

Not available

26

CHECK WITH SUPPLIER

$

$

Not available

27

Electrolux/AYP 123204X

SUB= 126756X

$

$

Not available

28

Electrolux/AYP 74760632

SUB= 74930632

$

$

Not available

29

Electrolux/AYP 123553X

SUB= 127163X

$

$

Not available

30

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

31

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$6.99

$

In Stock, only 4 left!

0

33

Electrolux/AYP 102669X

BELT KEEPER LT

$

$

Not available

34

Electrolux/AYP 121687X

"JACKSHAFT.38""LT"
(Superseded to 532121687)

$

$

Not available

35

Electrolux/AYP 100668L

SUPPORT PLATE LT
(Superseded to 532100668)

$

$

Not available

38

Electrolux/AYP 121263X

"BLADE.38"" HI-LI"
(Superseded to 532143978)

$28.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

41

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

42

$

$

Not available

$

$

Not available

44

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

45

Electrolux/AYP 6404J

SPACER T
(Superseded to 532006404)

$4.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 124066X

SUB= 109892X

$

$

Not available

47

Electrolux/AYP 76020616

SUB= 76020624

$

$

Not available

48

Electrolux/AYP 108247X

ROD BRAKE LT
(Superseded to 532108247)

$8.99

$

Usually ships in 3-10 days

0

50

$

$

Not available

51

$

$

Not available

52

Electrolux/AYP 105857X

"BRKT,SUSP RH T"
(Superseded to 532105857)

$

$

Not available

53

Electrolux/AYP 108673X

"BRKT,SUSP REAR LH"
(Superseded to 532108673)

$

$

Not available

54

Electrolux/AYP 106578X

BRAKE LT
(Superseded to 532106578)

$46.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 106463X

"ROD, BRAKE LH LT"

$

$

Not available

56

Electrolux/AYP 108249X

ROD BRAKE LT
(Superseded to 532108249)

$30.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 106456X

"BRK,BRAKE,PVT LT"

$

$

Not available

58

Electrolux/AYP 100672K

SPACER BRAKE LTV
(Superseded to 532100672)

$

$

Not available

59

Electrolux/AYP 100673L

BRACKET SUPT LTV

$

$

Not available

60

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 11

0

65

Electrolux/AYP 121349X

DECAL WARNING
(Superseded to 532121349)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

67

Electrolux/AYP 76020308

SUB= 3145
(Superseded to 876020308)

$

$

Not available

72

Electrolux/AYP 110445X

SUPPORT T
(Superseded to 532110445)

$10.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

Electrolux/AYP 123928X

MOWER ASSY
(Superseded to 532123928)

$

$

Not available
