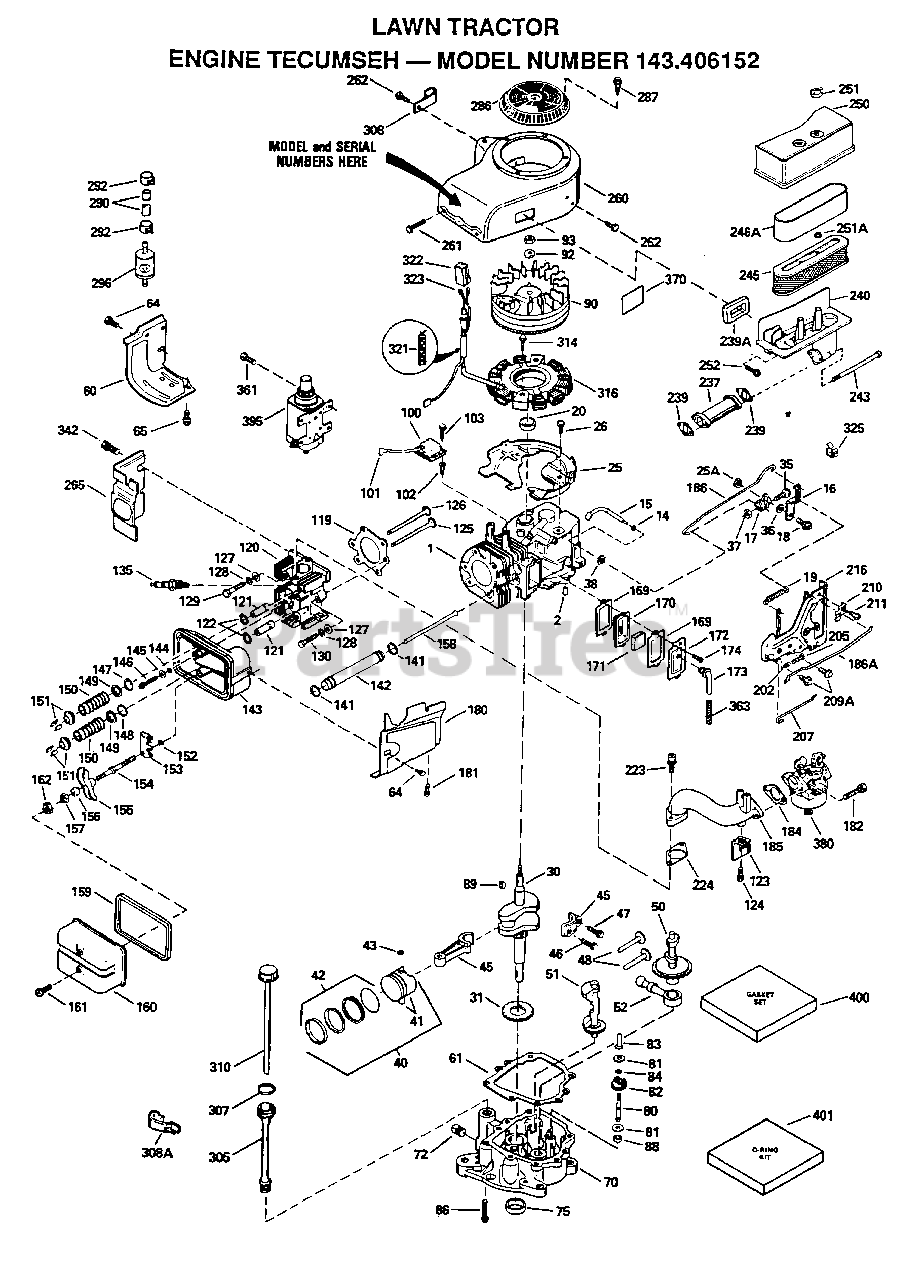

RLT E1238 AR - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

223

Electrolux/AYP 792028

SCREW

$

$

Not available

224

Tecumseh 33515A

GASKET, INTAKE PIPE

$1.99

$

In Stock, only 3 left!

0

237

Tecumseh 35286

ADAPTER, AIR CLEANER

$

$

Not available

239

Tecumseh 33629

GASKET, AIR CLEANER ELBOW

$1.99

$

In Stock, Qty 19

0

239A

Tecumseh 35408

GASKET, AIR CLEANER-TO-HOUSING

$

$

Not available

240

Tecumseh 35402B

BODY ASSY, AIR CLEANER
(Superseded to 35960)

$42.99

$

Usually ships in 3-12 days

0

243

Tecumseh 650875

SCREW

$3.99

$

In Stock, only 1 left!

0

245

Tecumseh 35403

ELEMENT, AIR CLEANER

$13.99

$

Usually ships in 3-12 days

0

246A

Tecumseh 35404

FILTER, POLY PRE-CLEANER

$3.99

$

Usually ships in 3-12 days

0

250

Tecumseh 35405

COVER, AIR CLEANER
(Superseded to 35961)

$

$

Not available

251

Tecumseh 650886

NUT, WING

$2.49

$

In Stock, only 2 left!

0

251A

Tecumseh 650825

NUT & LOCKWASHER

$1.99

$

In Stock, only 1 left!

0

252

Tecumseh 650887

SCREW

$1.99

$

Usually ships in 3-12 days

0

260

Tecumseh 35793

HOUSING, BLOWER

$

$

Not available

261

Tecumseh 30063

SCREW

$1.99

$

In Stock, Qty 20+

0

262

Tecumseh 29747B

SCREW

$1.99

$

In Stock, Qty 9

0

265

Tecumseh 35290

COVER, CYLINDER HEAD

$3.49

$

In Stock, only 1 left!

0

286

Tecumseh 35792

SCREEN, DEBRIS

$5.49

$

Usually ships in 3-12 days

0

287

Tecumseh 650936

SCREW

$1.99

$

In Stock, Qty 10

0

290

Tecumseh 29774

LINE, FUEL

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

FUEL LINE CLAMP

$1.49

$

In Stock, Qty 20+

0

296

Tecumseh 34279B

FILTER, FUEL

$13.99

$

In Stock, only 1 left!

0

305

Tecumseh 35574

TUBE, OIL FILL

$5.49

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-RING

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 33997

CLIP, OIL FILL TUBE

$1.99

$

Usually ships in 3-12 days

0

308A

Tecumseh 35437

CLIP, OIL FILL TUBE

$1.99

$

In Stock, only 1 left!

0

310

Tecumseh 35576

DIPSTICK, OIL

$7.49

$

In Stock, only 1 left!

0

314

Tecumseh 650873

SCREW

$1.99

$

Usually ships in 3-12 days

0

316

Tecumseh 611113

COIL ASSY, ALTERNATOR

$130.99

$

Usually ships in 3-12 days

0

321

Tecumseh 610935

DIODE
(Superseded to 611161)

$17.99

$

Usually ships in 3-12 days

0

322

Tecumseh 610921

CONNECTOR, BODY

$1.99

$

Usually ships in 3-12 days

0

323

Tecumseh 610922

TERMINAL, FEMALE

$

$

Not available

325

Tecumseh 27275

CLIP, WIRE

$1.99

$

In Stock, Qty 7

0

342

Tecumseh 650273

SCREW

$1.99

$

In Stock, Qty 5

0

361

Tecumseh 30063

SCREW

$1.99

$

In Stock, Qty 20+

0

363

Tecumseh 34148

SPRING, COIL

$

$

Not available

370

Tecumseh 34346

DECAL, INSTRUCTION
(Superseded to 36261)

$

$

Not available

380

Tecumseh 632490

CARBURETOR
(Superseded to 632774)

$123.99

$

Usually ships in 3-12 days

0

395

Tecumseh 35763

STARTER MOTOR
(Superseded to 36680)

$249.99

$

Usually ships in 3-12 days

0

400

Tecumseh 35331B

GASKET SET

$50.99

$

Usually ships in 3-12 days

0

401

Tecumseh 35332

O-RING KIT

$21.99

$

In Stock, only 1 left!

0
