RLT 140H422KV (80393) - Snapper 42" Lawn Tractor, 14hp Schematic Electrical System (Briggs Engine Only) Parts Diagram

42" Lawn Tractor, 14hp

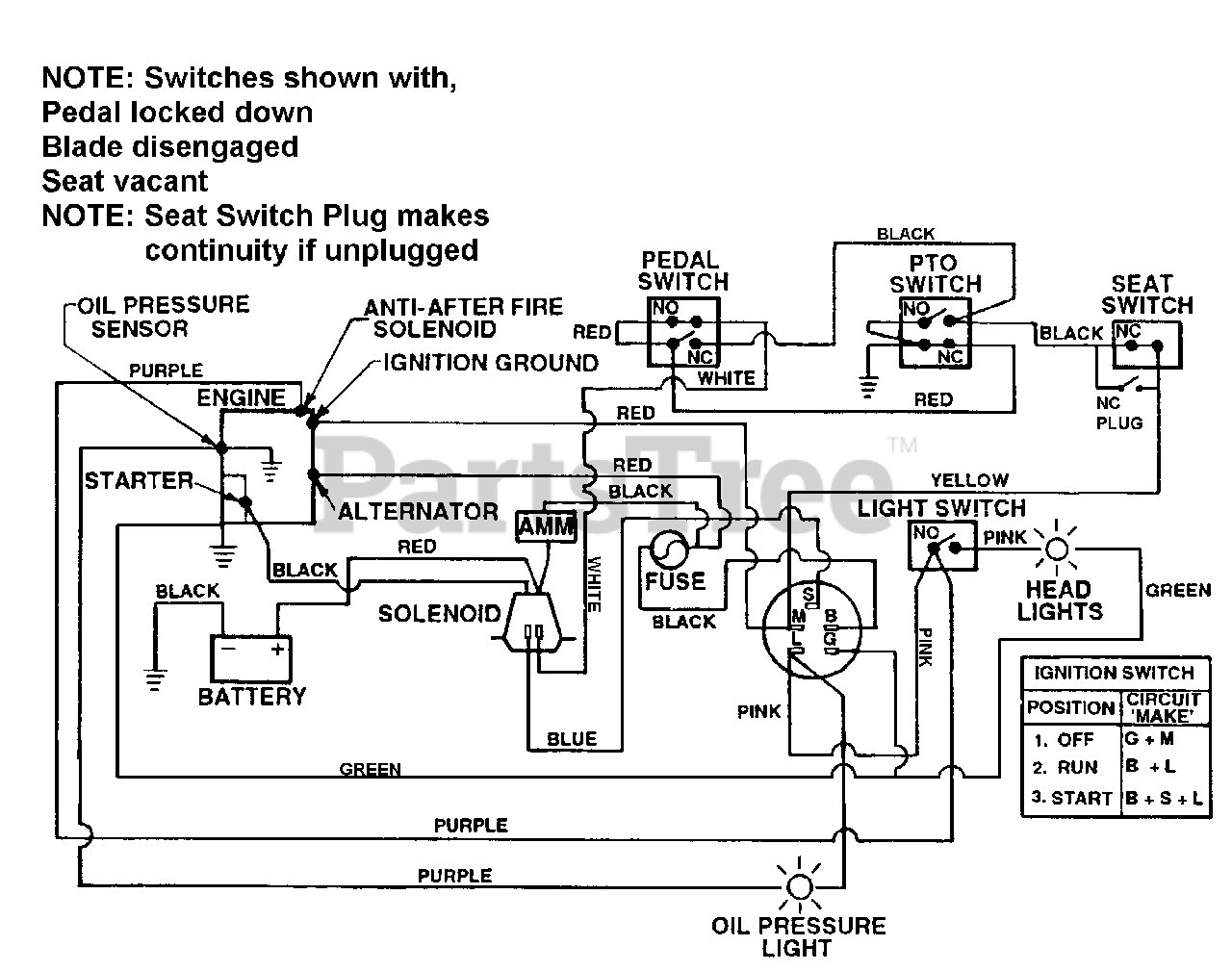

Schematic Electrical System (Briggs Engine Only) Parts Diagram

  • Title

Wiring schematic includes harness #'s 7026668 & 7024126

$

$

Not available
