RLT 140H331KV (80238) - Snapper 33" Lawn Tractor, 14hp (1991) Transmission - Service Parts Parts Diagram

33" Lawn Tractor, 14hp

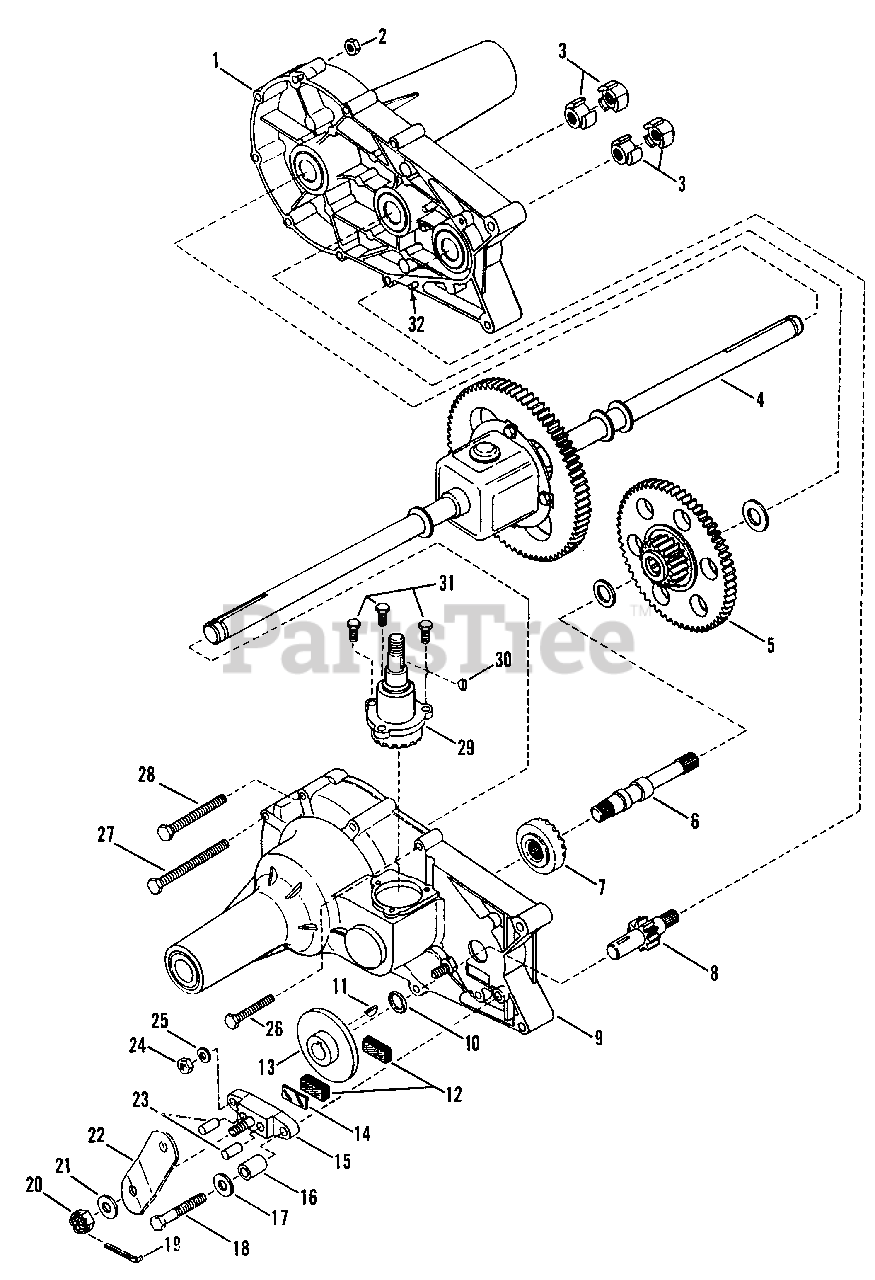

Transmission - Service Parts Parts Diagram

  • Title

1

Snapper 7024395

TRANSAXLE ASSEMBLY HOUSING, L.H.
(Superseded to 7024395YP)

$398.99

$

Usually ships in 2-12 days

0

2

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90628

$3.49

$

In Stock, Qty 20+

0

3

Snapper 7024235

PUMP COUPLING
(Superseded to 7024235YP)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 7024397

DIFFERENTIAL ASSEMBLY
(Superseded to 7024397YP)

$428.99

$

Usually ships in 2-12 days

0

5

Snapper 7024399

REDUCTION GEAR ASSEMBLY

$

$

Not available

6

Snapper 7024400

SHAFT, Drive
(Superseded to 7024400YP)

$193.99

$

Usually ships in 2-12 days

0

7

Snapper 7024401

GEAR, Drive Pinion
(Superseded to 7024401YP)

$27.99

$

Usually ships in 2-12 days

0

8

Snapper 7024402

SHAFT, Pinion Gear
(Superseded to 7024402YP)

$78.99

$

Usually ships in 2-12 days

0

9

Snapper 7024396

TRANSAXLE ASSEMBLY HOUSING, R.H.
(Superseded to 7024396YP)

$398.99

$

Usually ships in 2-12 days

0

10

Snapper 7024428

SEAL, Grease
(Superseded to 7024428YP)

$16.99

$

Usually ships in 2-12 days

0

11

Snapper 7024416

KEY, 3/16 x 5/8" Hi-Pro
(Superseded to 7024416YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7024404

PUCK, Brake
(Superseded to 7024404YP)

$13.99

$

Usually ships in 2-12 days

0

13

Snapper 7024403

DISC, Brake
(Superseded to 7024403YP)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7024405

PLATE, Puck
(Superseded to 7024405YP)

$2.99

$

Usually ships in 2-12 days

0

15

Snapper 7024406

BRAKE YOKE ASSEMBLY

$

$

Not available

16

Snapper 7024420

SPACER

$

$

Not available

17

Snapper 7024419

WASHER, Flat, .265 I.D. x 7/8" O.D.

$

$

Not available

18

Snapper 1921963

BOLT, 1/4-20 x 2" Hex
(Superseded to 703163)

Note: Was 24418

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7024412

PIN, Cotter

$

$

Not available

20

Snapper 7024411

NUT, 5/16-24 Castle

$

$

Not available

21

Snapper 7024410

WASHER, Flat, .343 I.D. x .88" O.D.

$

$

Not available

22

Snapper 7024409

ARM, Brake Actuator

$

$

Not available

23

Snapper 7024408

PIN, Brake Actuating
(Superseded to 7024408YP)

$10.99

$

Usually ships in 2-12 days

0

24

Snapper 2816622

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 24414

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7024415

WASHER, 1/4 Spring Lock

$

$

Not available

26

Snapper 7024421

BOLT, 1/4-20 x 2" Hex Hd., Self-Tapping

$

$

Currently unavailable

27

Snapper 7024424

BOLT, 5/16-18 x 3 3/4" Hex Head
(Superseded to 7024424SM)

$35.99

$

Usually ships in 2-12 days

0

28

Snapper 7024422

BOLT, 1/4-20 x 3" Hex Hd., Self-Tapping

$

$

Not available

29

Snapper 7024398

INPUT PINION HOUSING ASSEMBLY

$

$

Not available

30

Snapper 7024425

KEY, 3/32 x 5/8" Hi-Pro
(Superseded to 7024425YP)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper 7024413

SCREW, 1/4-20 x 3/4" Hex Head

$

$

Not available

32

Snapper 7090841

PIN, Roll, 3/16 x 1.5"
(Superseded to 7090841YP)

Note: Was 24427

$4.49

$

In Stock, only 1 left!

0
